Howdens RKLENBUOH - Prepare and Fit Fascia Brackets; Fit Upper Fascia Clips; Fit Fascias to Drawer Box; Install Drawer onto Runners

Assembly
3
Bottom Edge
597mm
435mm
Lower Fascia
Fascia Locking
Clip x2
4

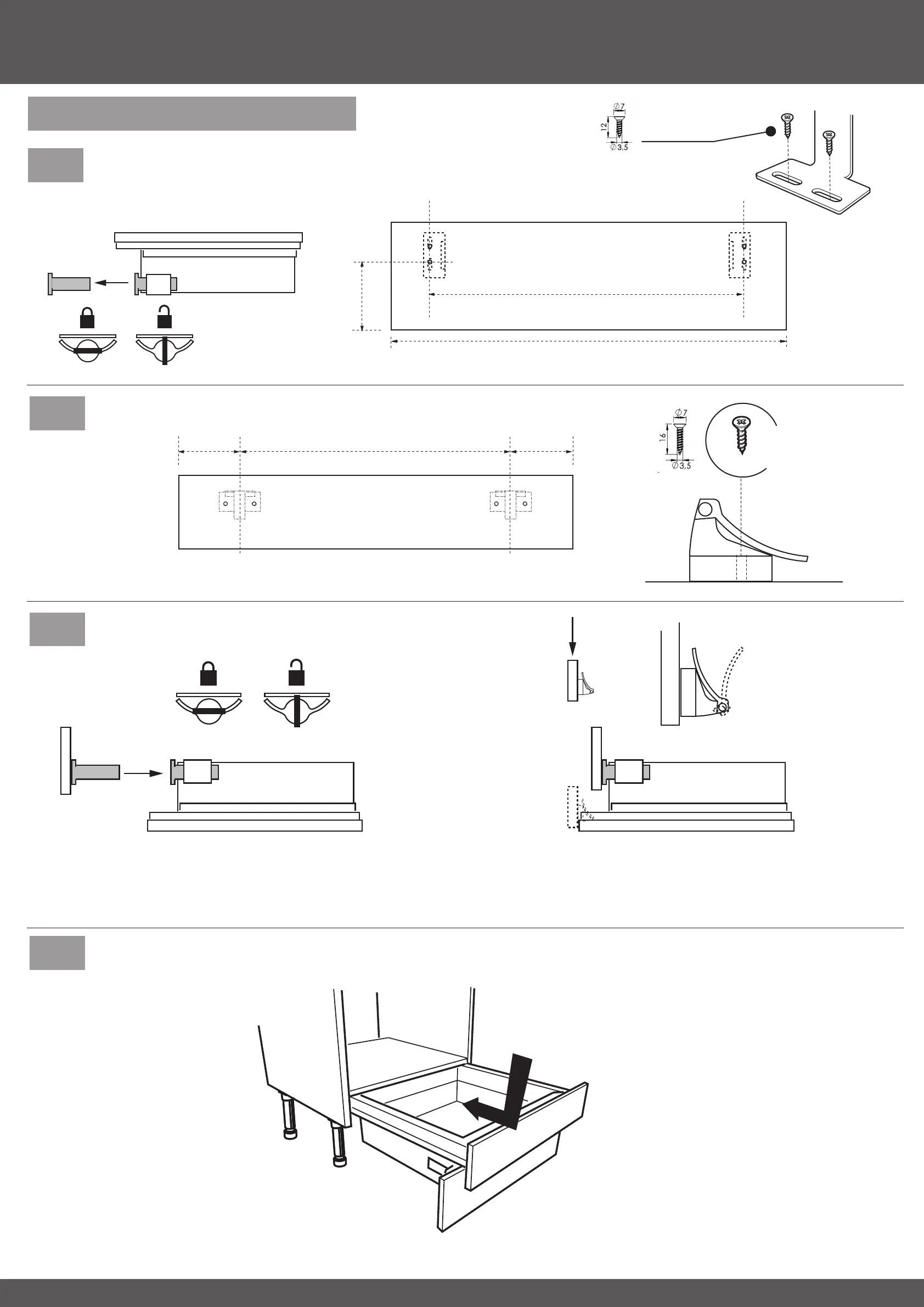

Unlock and remove the brackets from the drawer.
Cut plinth section to length. Fit brackets to lower fascia (plinth) section.
Fit clips to upper BUOH fascia (115mm).
5
Fit the fascias to the drawer box, locking into position.
Lower Fascia
Lock into place
Fully extend runners, then fit the drawer onto the runners.
Push the drawer back into the cabinet.
6
Bottom Edge
416mm
= =
Scribe the bottom edge of the plinth front
when fully extended if required.
Screw x4
3.5 x 12mm csk
Screw x4
3.5 x 16mm csk
Upper Fascia
Lock into place
