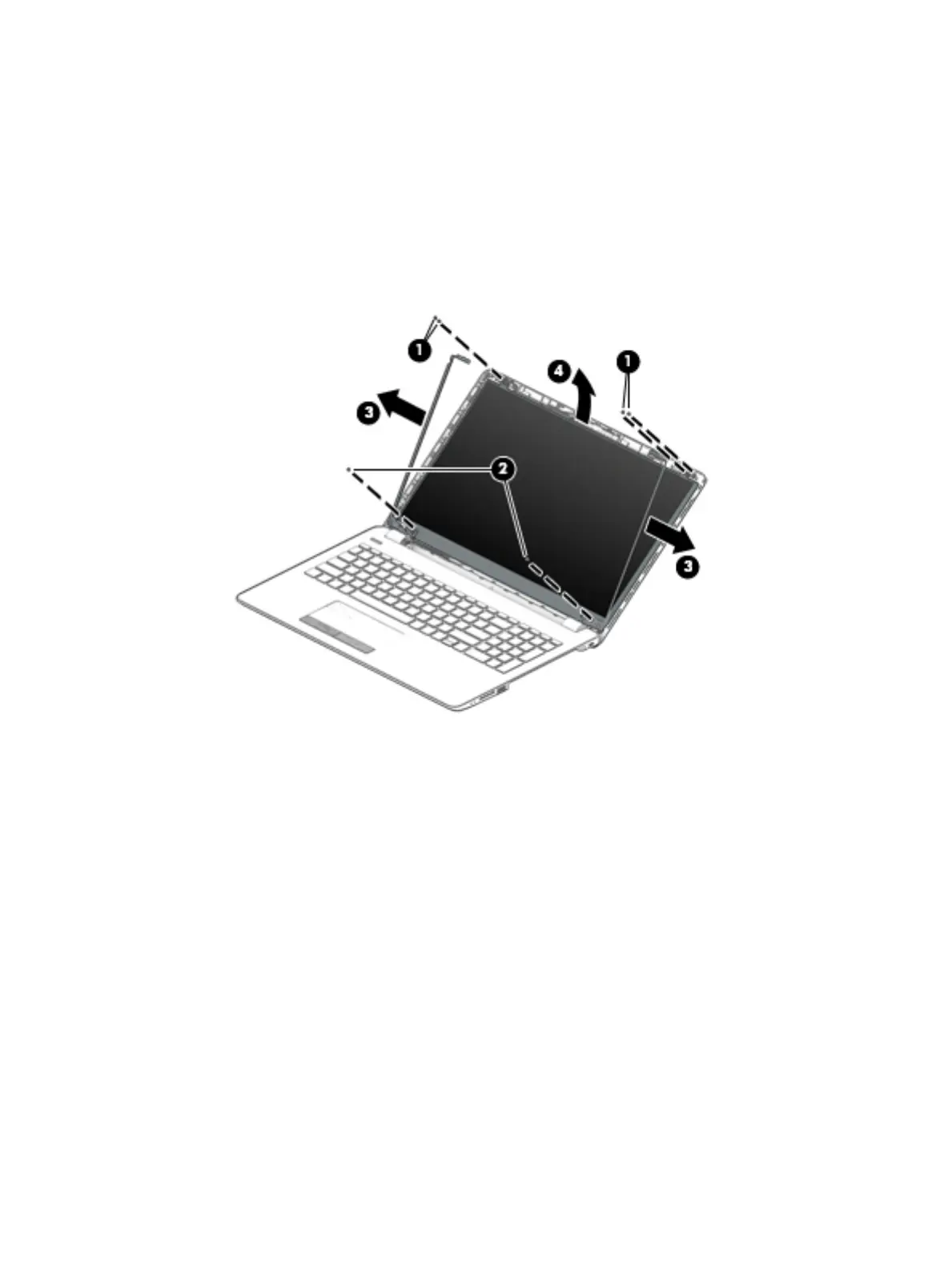

4. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the top of the
enclosure.
b. Remove the two Phillips PM2.0×3.0 screws (2) that secure the display panel to the bottom of the
enclosure.
c. Lift the hinges up and move aside enough to be able to rotate the panel up and over (3).
d. Rotate the display panel onto the keyboard (4) to gain access to the display cable connection on
the back of the panel.
e. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (1).
Component replacement procedures 39
