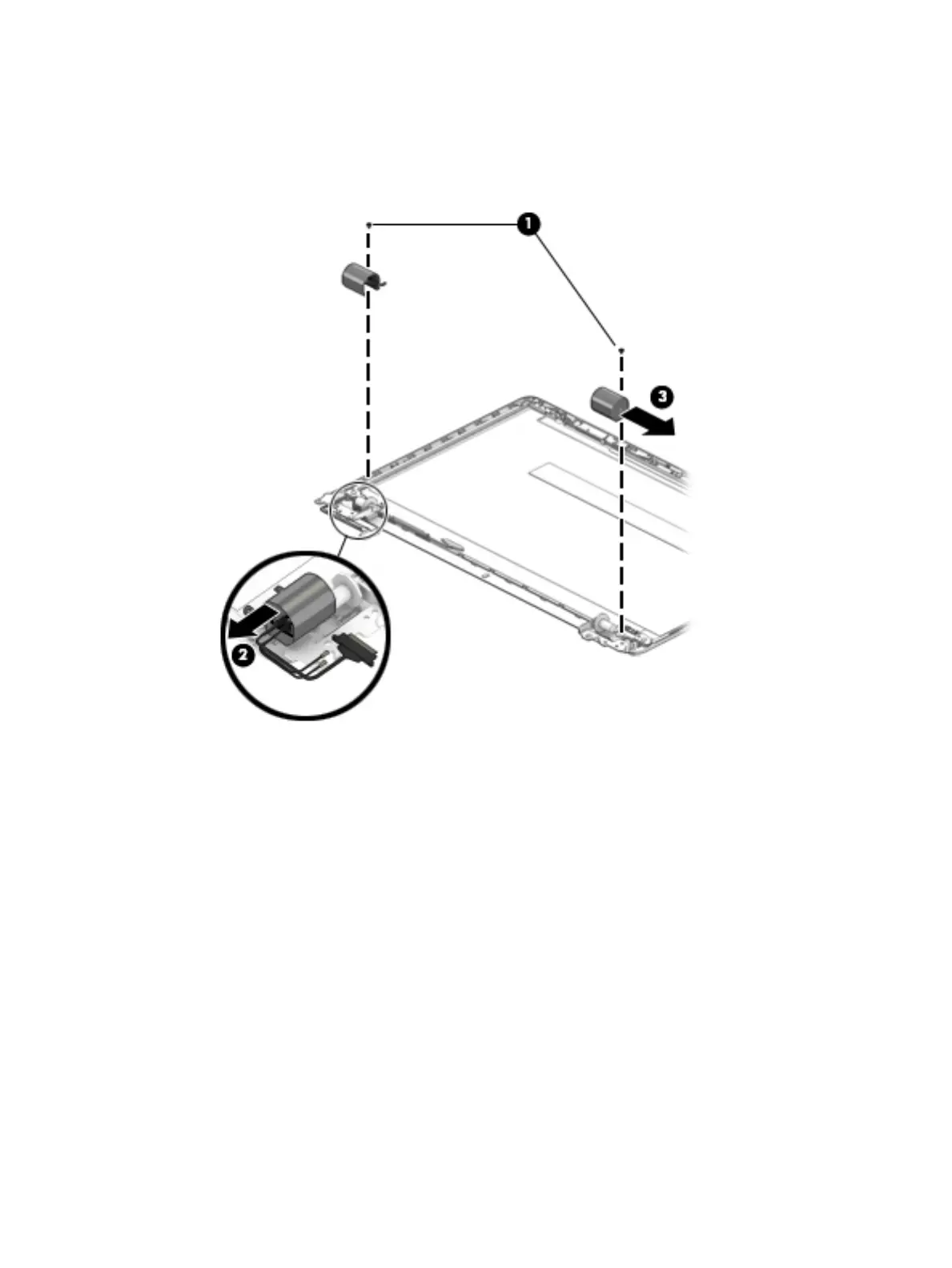

a. Remove the Phillips PM2.0×3.0 screw (1) that secures each hinge cover to the display enclosure.
b. Slide the left hinge cover toward the left and remove while threading the cable through the hinge
cover (2).
c. Slide the right hinge cover toward the right to remove (3).
d. Remove the two broadhead Phillips PM2.5×2.5 screws (1) and the broadhead PM2.5×3.0 screw (2)
that secure each hinge to the bottom of the display enclosure.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
