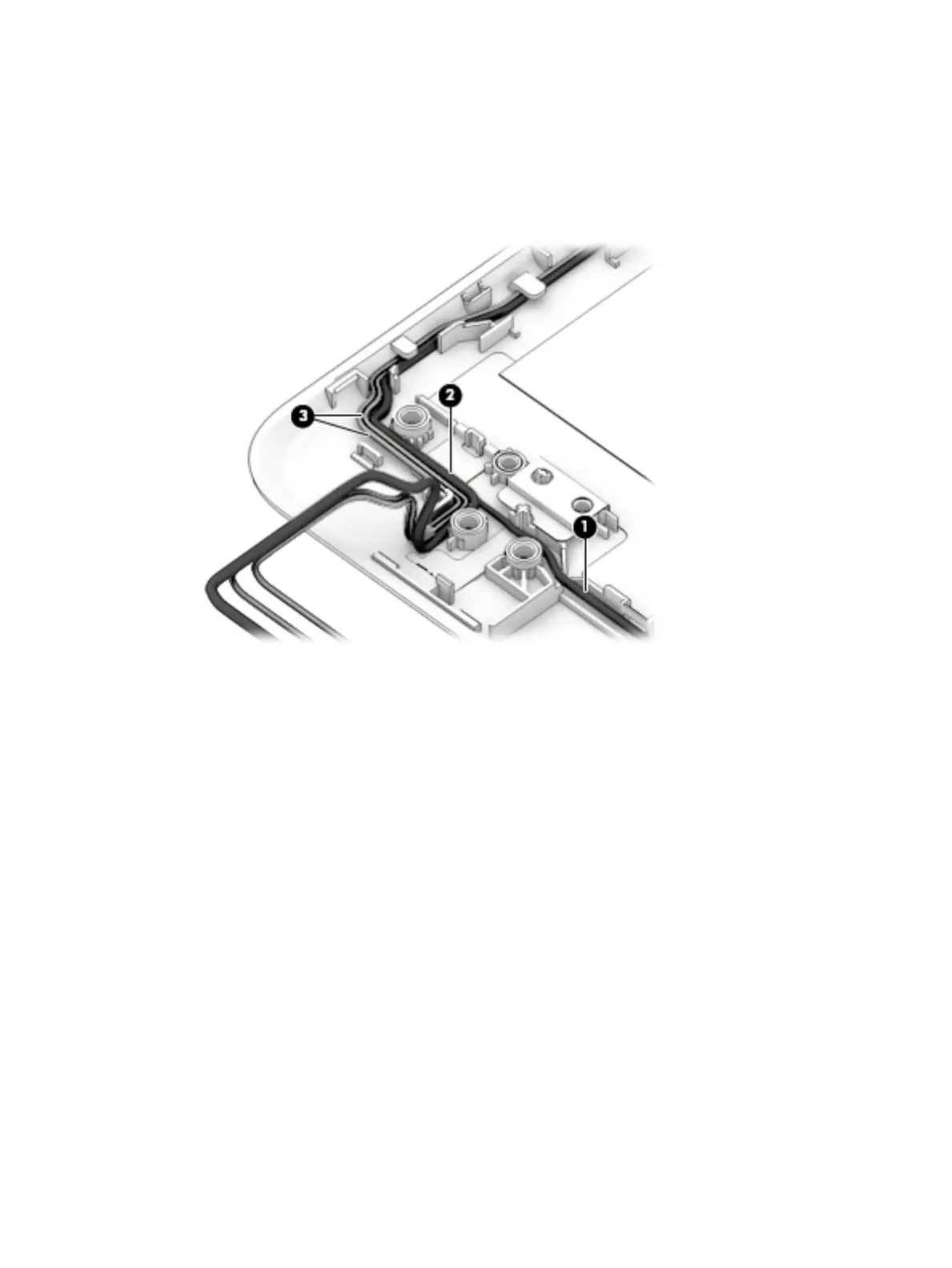

7. Use the following image to determine proper cable routing around the left hinge for the camera/display
cable and the wireless antenna cables.
(1): Camera cable routing path
(2): Display/camera cable routing path
(3): Antenna cable routing path
8. If replacing the display enclosure, be sure that the subcomponents (including the camera/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
Reverse this procedure to reassemble and install the display assembly.
78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
