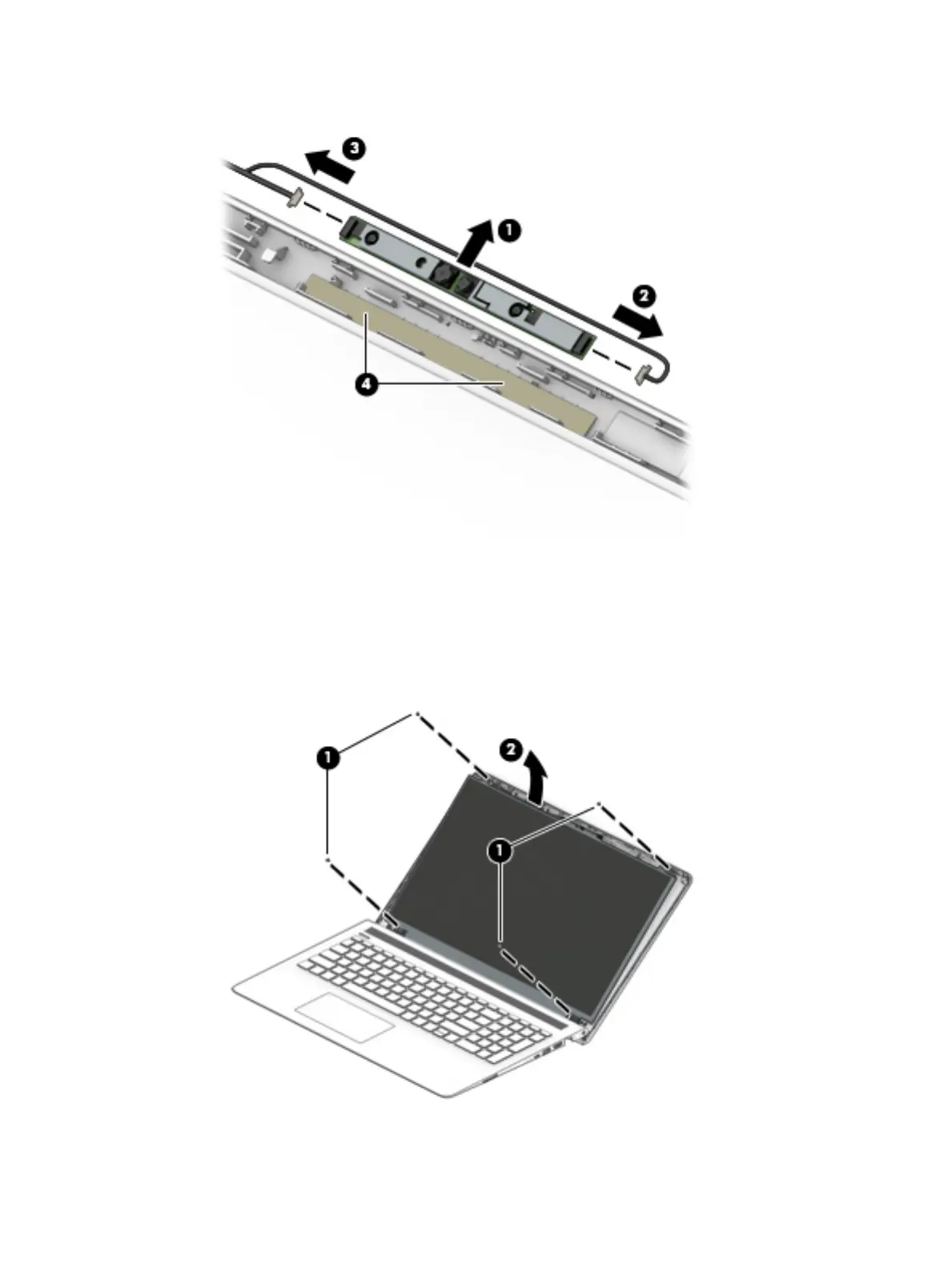

d. Remove the tape from the enclosure (4). Replacement cameras come with tape already installed.
5. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the top of the
enclosure.
b. Rotate the display panel onto the keyboard (2) to gain access to the display cable connection on
the back of the panel.
32 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
