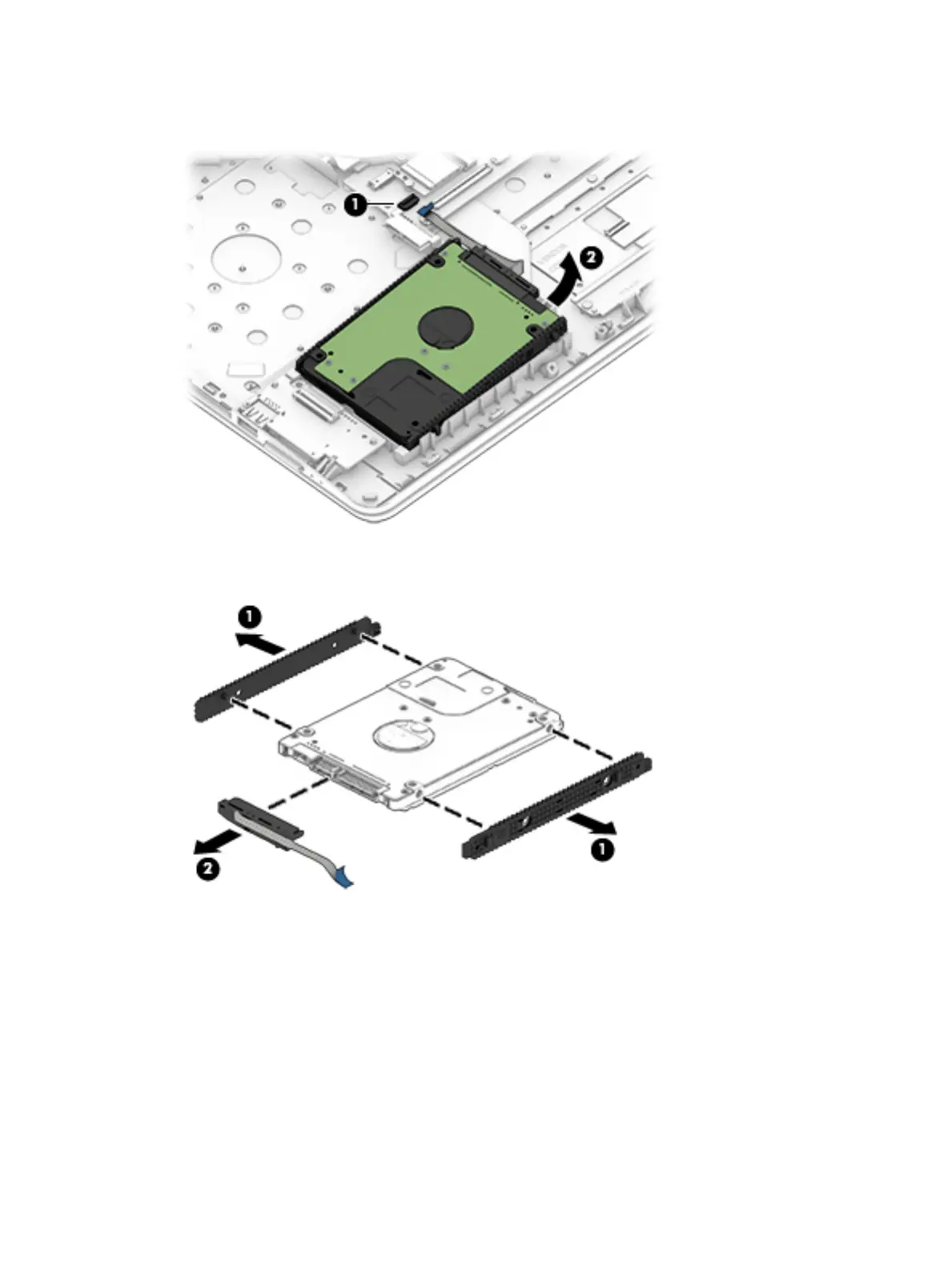

2. Lift the right side of the hard drive (2) to release it from the hard drive bay, and then remove
the hard drive.
3. If it is necessary to disassemble the hard drive, remove the hard drive brackets (1) from the hard drive,
and then disconnect the hard drive cable (2) from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
40 Chapter 5 Removal and replacement procedures
