(6) Keyboard ZIF connector cable
(7) Backlight ZIF connector cable
(8) USB port board ZIF connector cable

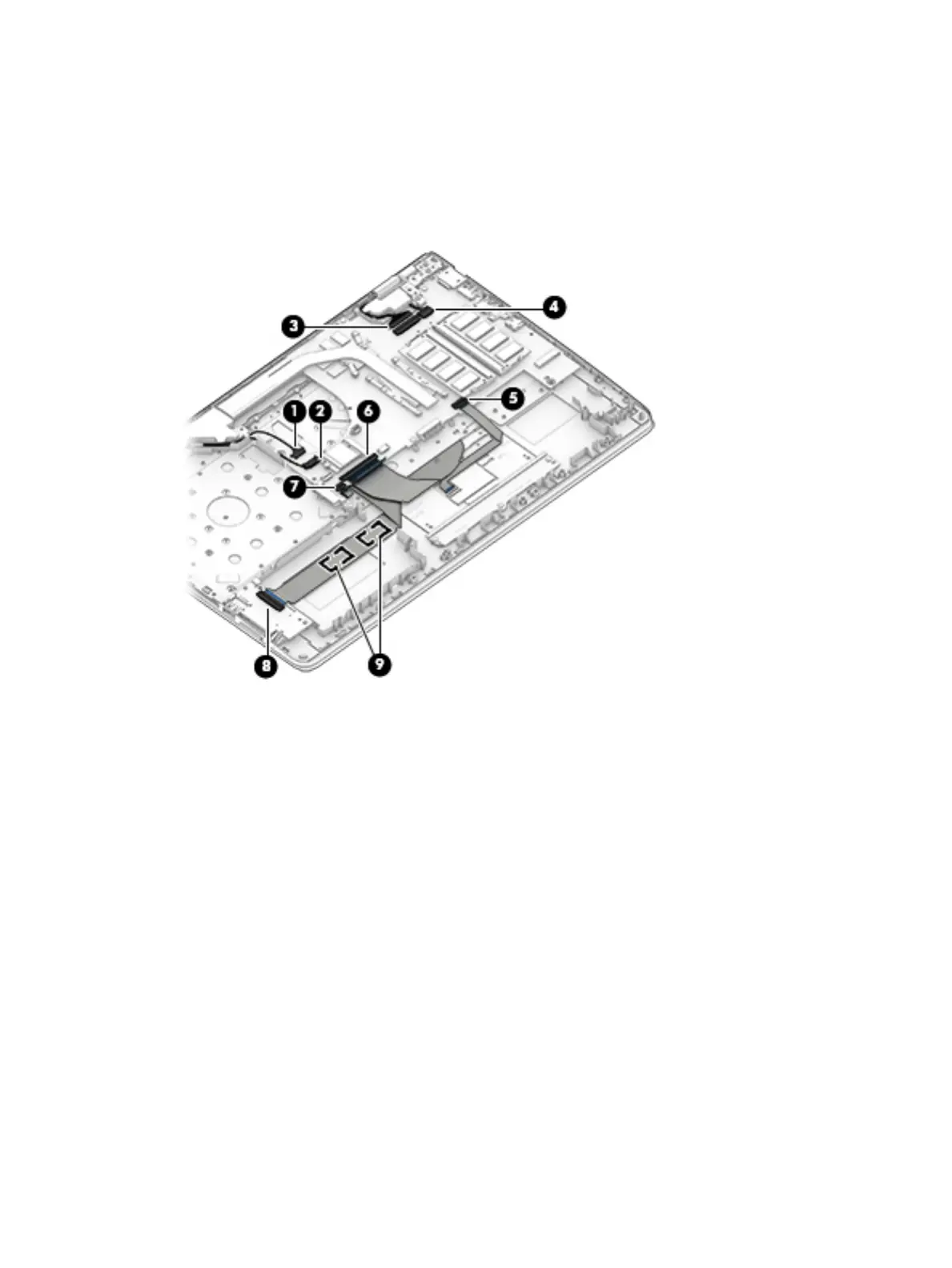

2. Detach the USB port board cable (9) from the keyboard/top cover. (The USB port board cable is attached
to the keyboard/top cover with double-sided adhesive.)
3. Remove the ve Phillips PM2.0×2.9 screws (1) that secure the system board to the keyboard/top cover.
4. Remove the two Phillips PM2.5×6.7 screws (2) that secure the secure the left display hinge WLAN
module to the keyboard/top cover.
5. Remove the USB Type-C port bracket (3).
The USB Type-C port bracket is available using spare part number 926849-001.
52 Chapter 5 Removal and replacement procedures
