14. If it is necessary to replace the wireless antenna cables and transceivers:
a. Remove the display bezel.
b. Release the display panel.
c. Release the display hinges.

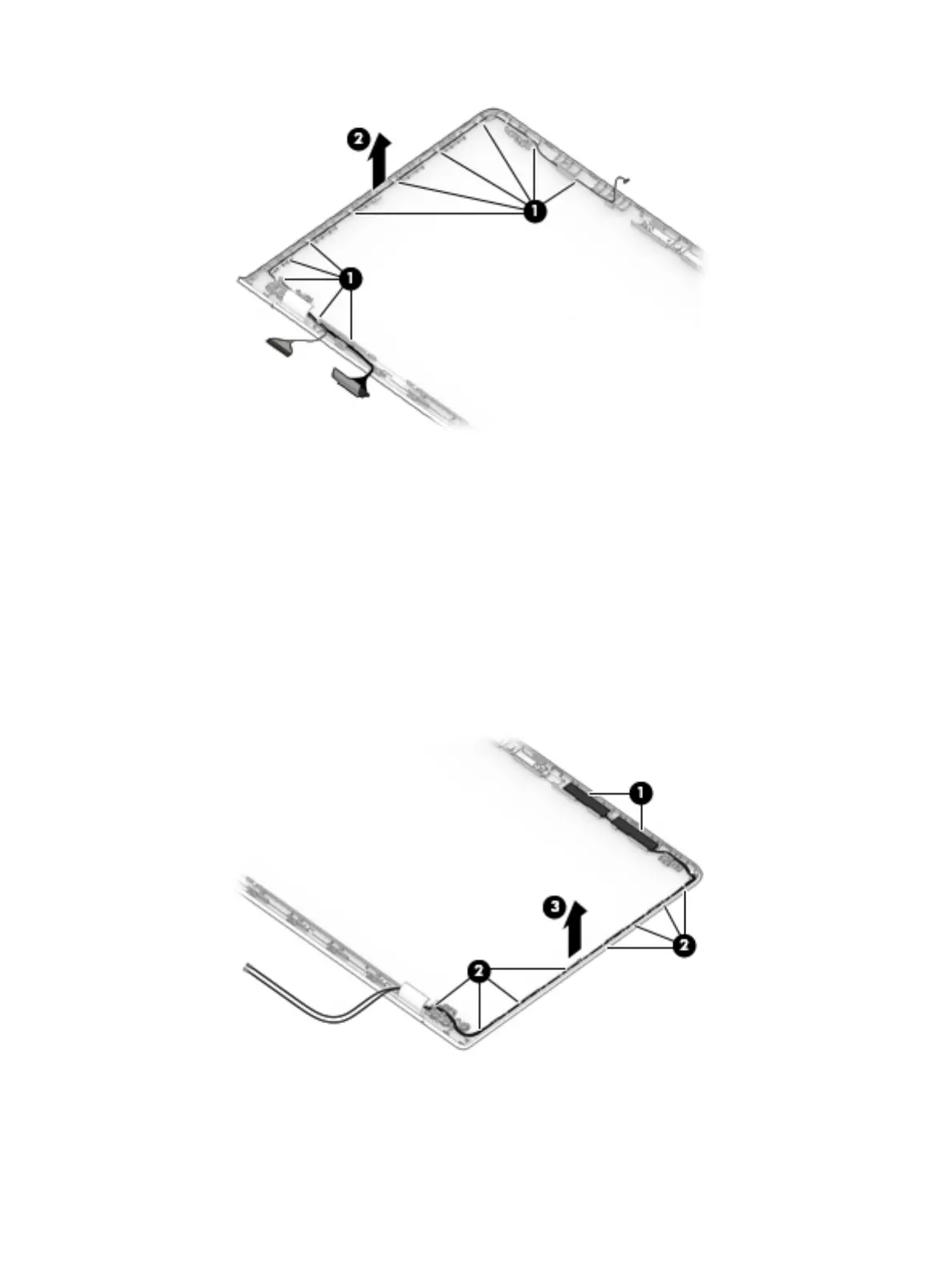

d. Detach the wireless antenna transceivers (1) from the display back cover. (The wireless antenna
transceivers are attached to the display back cover with double-sided adhesive.)
e. Release the wireless antenna cables from the retention clips (2) and routing channels built into the
top, right, and bottom edges of the display back cover.
f. Remove the wireless antenna cables and transceivers (3).
The wireless antenna cables and transceivers are available using spare part number 926826-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 63
