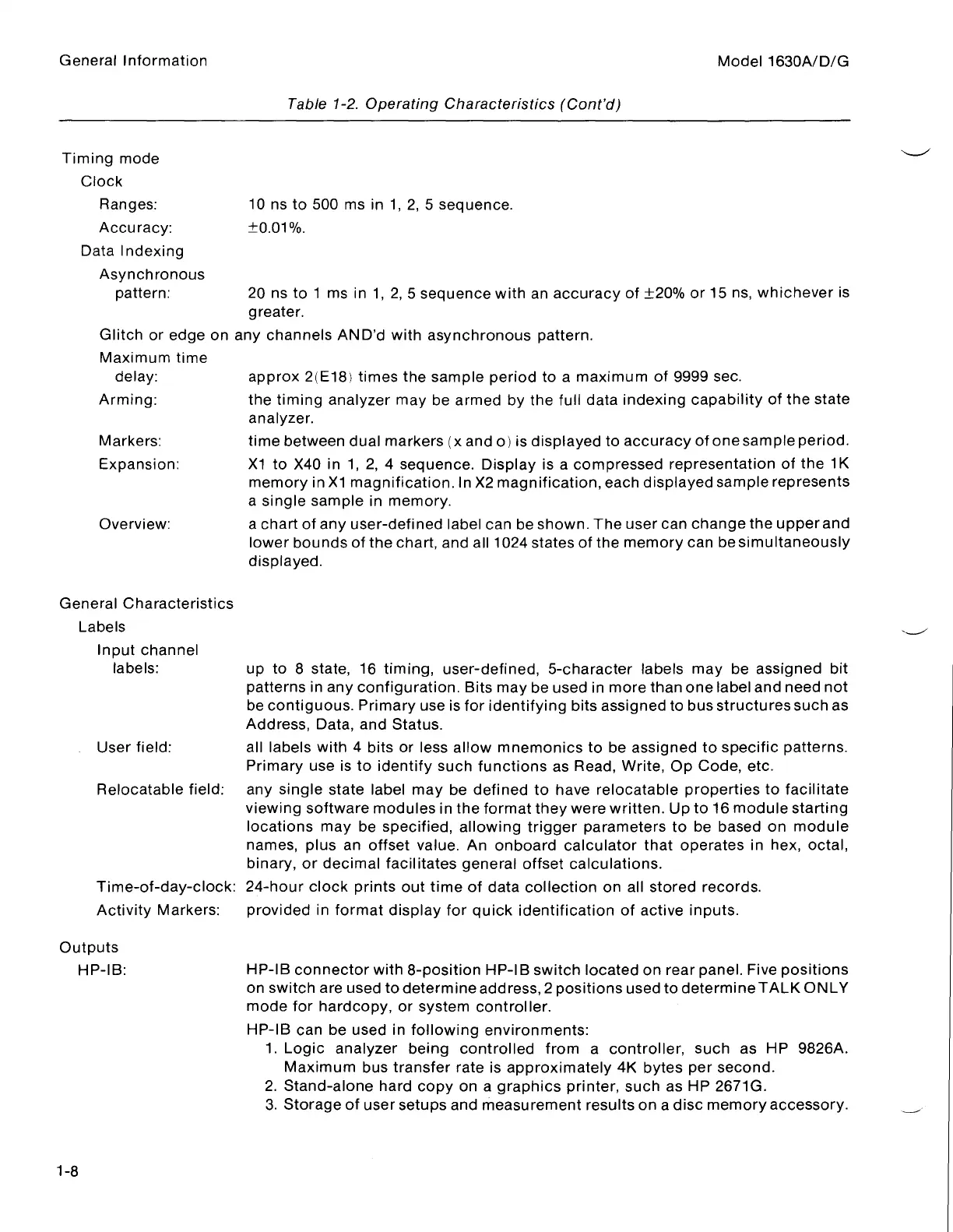

General
Information

Model
1630A/D/G
Table
1-2
.
Operating
Characteristics
(Cont'd)
Timing
mode
Clock
Ranges
:

10
ns
to
500
ms
in
1,
2,
5
sequence
.
Accuracy
:
±0
.01%
.
Data
Indexing
Outputs
Asynchronous
pattern
:

20
ns
to
1
ms
in
1,
2,
5
sequence
with
an
accuracy
of
±20%
or
15
ns,
whichever
is
greater
.
Glitch
or
edge
on
any
channels
AND'd
with
asynchronous
pattern
.
Maximum
time
delay
:

approx
2(E18)
times
the
sample
period
to
a
maximum
of
9999
sec
.
Arming
:

the
timing
analyzer
may
be
armed
by
the
full
data
indexing
capability
of
the
state
analyzer
.
Markers
:

time
between
dual
markers
(x
and
o)
is
displayed
to
accuracy
of
one
sample
period
.
Expansion
:

X1
to
X40
in
1,
2,
4
sequence
.
Display
is
a
compressed
representation
of
the
1K
memory
in
X1
magnification
.
In
X2
magnification,
each
displayed
sample
represents
a
single
sample
in
memory
.
Overview
:

a
chart
of
any
user-defined
label
can
be
shown
.
The
user
can
change
the
upper
and
lower
bounds
of
the
chart,
and
all
1024
states
of
the
memory
can
be
simultaneously
displayed
.
General
Characteristics
Labels
Input
channel
labels
:

up
to
8
state,
16
timing,
user-defined,
5-character
labels
may
be
assigned
bit
patterns
in
any
configuration
.
Bits
may
be
used
in
more
than
one
label
and
need
not
be
contiguous
.
Primary
use
is
for
identifying
bits
assigned
to
bus
structures
such
as
Address,
Data,
and
Status
.
User
field
:

all
labels
with
4
bits
or
less
allow
mnemonics
to
be
assigned
to
specific
patterns
.
Primary
use
is
to
identify
such
functions
as
Read,
Write,
Op
Code,
etc
.
Relocatable
field
:

any
single
state
label
may
be
defined
to
have
relocatable
properties
to
facilitate
viewing
software
modules
in
the
formatthey
were
written
.
Up
to
16
module
starting
locations
may
be
specified,
allowing
trigger
parameters
to
be
based
on
module
names,
plus
an
offset
value
.
An
onboard
calculator
that
operates
in
hex,
octal,
binary,
or
decimal
facilitates
general
offset
calculations
.
Time-of-day-clock
:
24-hour
clock
prints
out
time
of
data
collection
on
all
stored
records
.
Activity
Markers
:

provided
in
format
display
for
quick
identification
of
active
inputs
.
HP-IB
:

HP-IB
connector
with
8-position
HP-113
switch
located
on
rear
panel
.
Five
positions
on
switch
are
used
to
determine
address,
2
positions
used
to
determine
TALK
ONLY
mode
for
hardcopy,
or
system
controller
.
HP-113
can
be
used
in
following
environments
:
1
.
Logic
analyzer
being
controlled
from
a
controller,
such
as
HP
9826A
.
Maximum
bus
transfer
rate
is
approximately
4K
bytes
per
second
.
2
.
Stand-alone
hard
copy
on
a
graphics
printer,
such
as
HP
2671G
.
3
.
Storage
of
user
setups
and
measurement
results
on
a
disc
memory
accessory
.
