Model
1630A/D/G

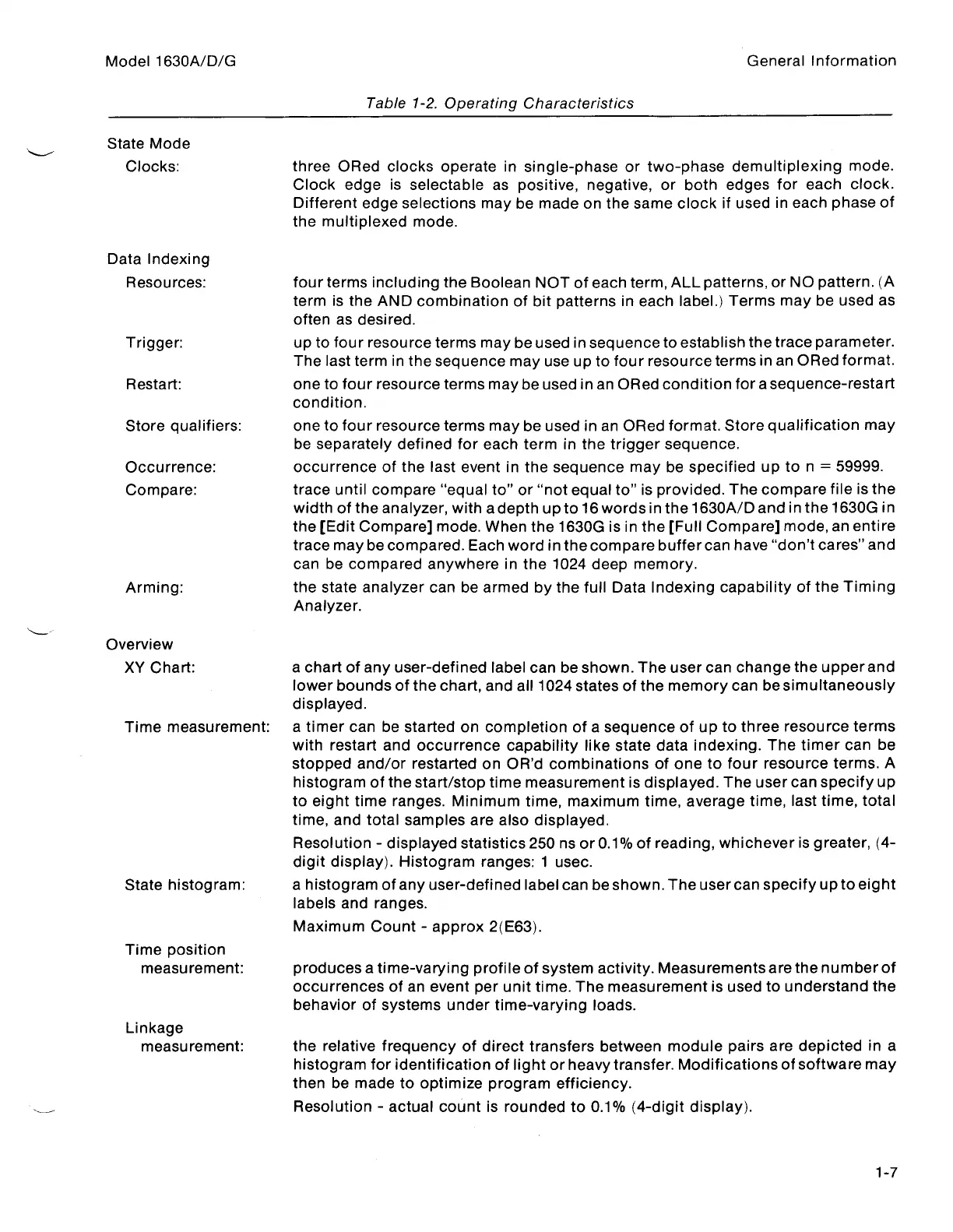

General
Information
Table
1-2
.
Operating
Characteristics
State
Mode
Clocks
:
three
ORed
clocks
operate
in
single-phase
or
two-phase
demultiplexing
mode
.
Clock
edge
is
selectable
as
positive,
negative,
or
both
edges
for
each
clock
.
Different
edge
selections
may
be
made
on
the
same
clock
if
used
in
each
phase
of
the
multiplexed
mode
.
Data
Indexing
Resources
:
four
terms
including
the
Boolean
NOT
of
each
term,
ALL
patterns,
or
NO
pattern
.
(A
term
is
the
AND
combination
of
bit
patterns
in
each
label
.)
Terms
may
be
used
as
often
as
desired
.
Trigger
:
up
to
four
resource
terms
may
be
used
in
sequence
to
establish
the
trace
parameter
.
The
last
term
in
the
sequence
may
use
up
to
four
resource
terms
in
an
ORed
format
.
Restart
:
one
to
four
resource
terms
may
be
used
in
an
ORed
condition
for
a
sequence-restart
condition
.
Store
qualifiers
:
one
to
four
resource
terms
may
be
used
in
an
ORed
format
.
Store
qualification
may
be
separately
defined
for
each
term
in
the
trigger
sequence
.
Occurrence
:
occurrence
of
the
last
event
in
the
sequence
may
be
specified
up
to
n
=
59999
.
Compare
:
trace
until
compare
"equal
to"
or
"not
equal
to"
is
provided
.
The
compare
file
is
the
width
of
the
analyzer,
with
a
depth
up
to
16
words
in
the
1630A/D
and
in
the
1630G
in
the
[Edit
Compare]
mode
.
When
the
1630G
is
in
the
[Full
Compare]
mode,
an
entire
trace
may
be
compared
.
Each
word
in
the
compare
buffer
can
have
"don't
cares"
and
can
be
compared
anywhere
in
the
1024
deep
memory
.
Arming
:
the
state
analyzer
can
be
armed
by
the
full
Data
Indexing
capability
of
the
Timing
Analyzer
.
Overview
XY
Chart
:
a
chart
of
any
user-defined
label
can
be
shown
.
The
user
can
change
the
upperand
lower
bounds
of
the
chart,
and
all
1024
states
of
the
memory
can
be
simultaneously
displayed
.
Time
measurement
:
a
timer
can
be
started
on
completion
of
a
sequence
of
up
to
three
resource
terms
with
restart
and
occurrence
capability
like
state
data
indexing
.
The
timer
can
be
stopped
and/or
restarted
on
OR'd
combinations
of
one
to
four
resource
terms
.
A
histogram
of
the
start/stop
time
measurement
is
displayed
.
The
user
can
specify
up
to
eight
time
ranges
.
Minimum
time,
maximum
time,
average
time,
last
time,
total
time,
and
total
samples
are
also
displayed
.
Resolution
-
displayed
statistics
250
ns
or
0
.1%
of
reading,
whichever
is
greater,
(4-
digit
display)
.
Histogram
ranges
:
1
usec
.
State
histogram
:
a
histogram
of
any
user-defined
label
can
be
shown
.
The
user
can
specify
up
to
eight
labels
and
ranges
.
Maximum
Count
-
approx
2(E63)
.
Time
position
measurement
:
produces
a
time-varying
profile
of
system
activity
.
Measurements
are
the
number
of
occurrences
of
an
event
per
unit
time
.
The
measurement
is
used
to
understand
the
behavior
of
systems
under
time-varyingloads
.
Linkage
measurement
:
the
relative
frequency
of
direct
transfers
between
module
pairs
are
depicted
in
a
histogram
for
identification
of
light
or
heavy
transfer
.
Modifications
of
software
may
then
be
made
to
optimize
program
efficiency
.
Resolution
-
actual
count
is
rounded
to
0
.1%
(4-digit
display)
.
17
19
