“Measurement Initialization Error”
This error occurs when you have installed the cables incorrectly for one or

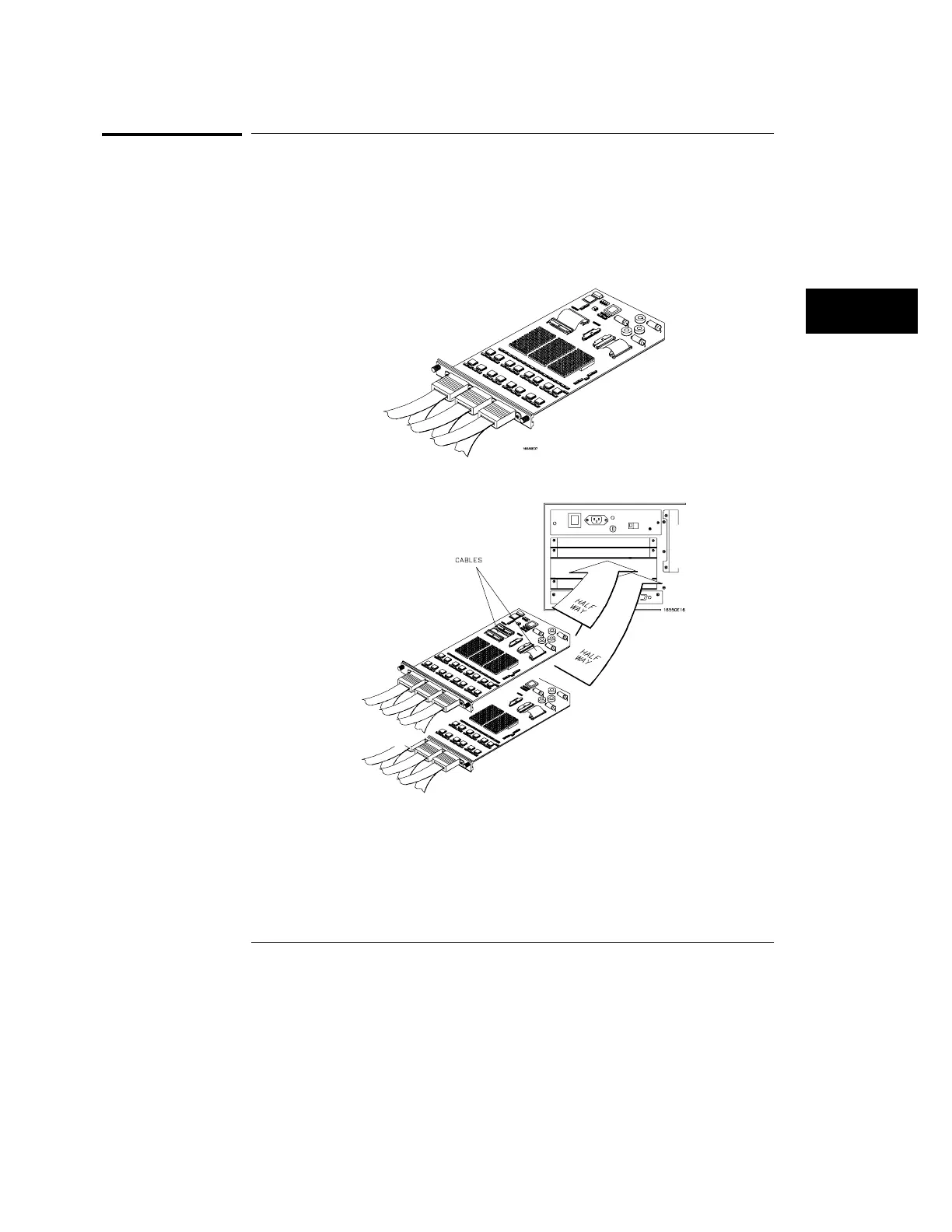

two HP 16550A logic analysis cards. The following diagrams show the correct
cable connections for one-card and two-card installations. Ensure that your
cable connections match the drawing, then repeat the measurement.
Cable Connections for One-Card HP 16550A Installations
Cable Connections for Two-Card HP 16550A Installations
See Also The HP 16550A 100-MHz State/500-MHz Timing Logic Analyzer Service
Guide.
