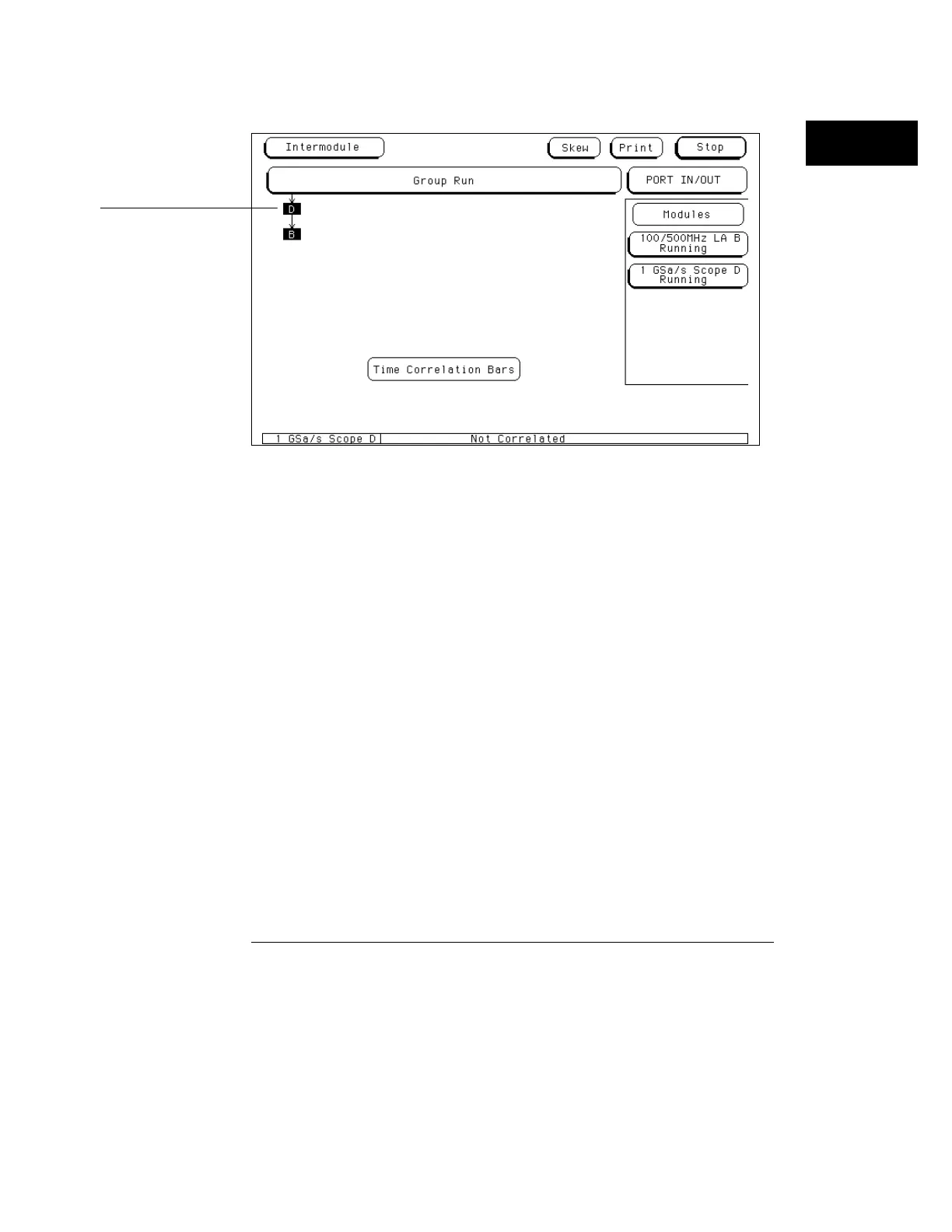

Oscilloscope Arms State Analyzer in Group Run

The analyzer in slot

B is armed when

the oscilloscope in

slot D finds its

trigger condition.

Intermodule Measurements

To set up a group run of modules within the HP 16500C

2–5
