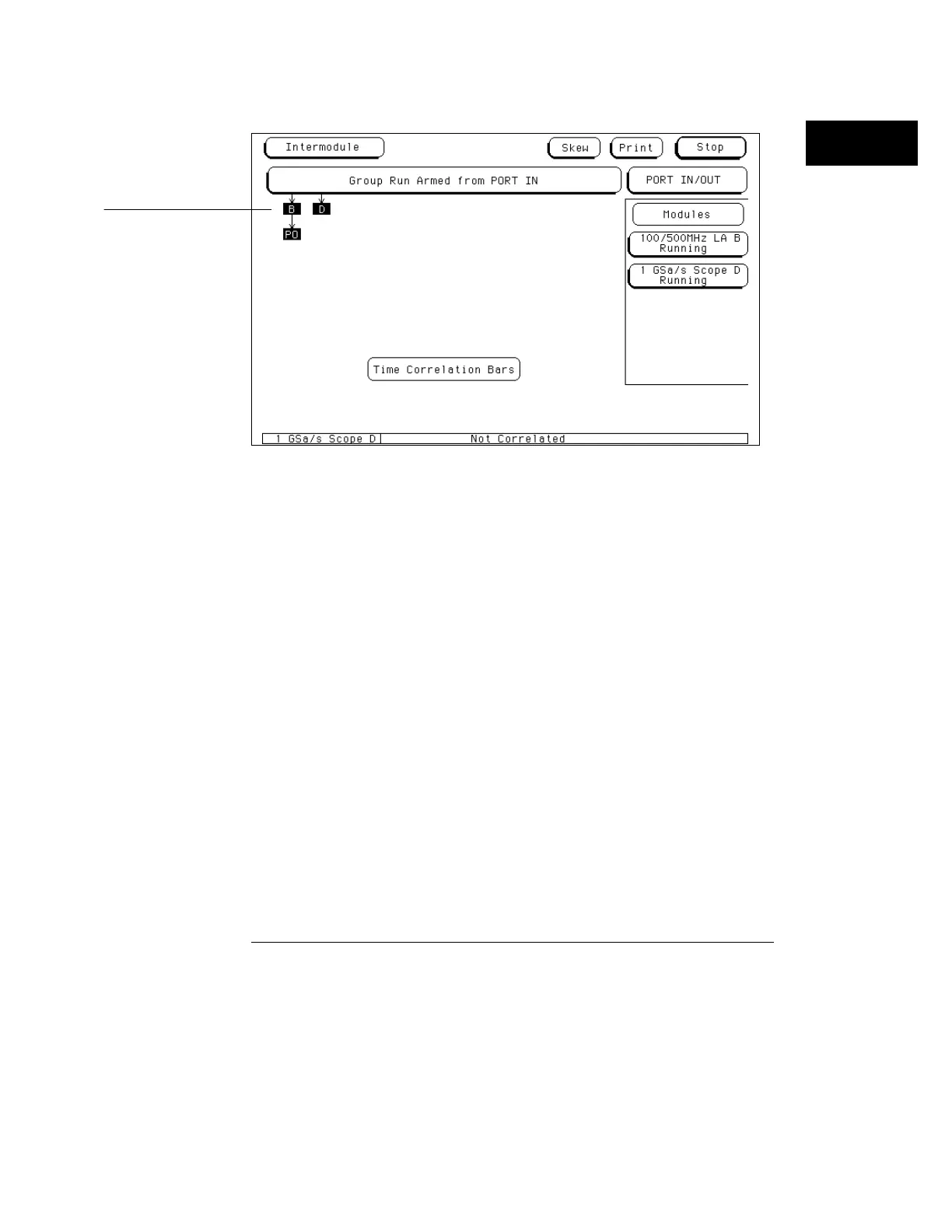

Driving the Port Out BNC in an Intermodule Measurement

The analyzer in

slot B drives port

out after finding

its trigger.

Intermodule Measurements

To start an external instrument on command from a module within the HP 16500 and 16501 mainframe

2–9
