Example You have an HP 16550A state/timing analyzer installed in slot C of your
HP 16500C mainframe. The name of analyzer 1 of the HP 16550A is
68000_BUS. You have created some labels under analyzer 1 of the

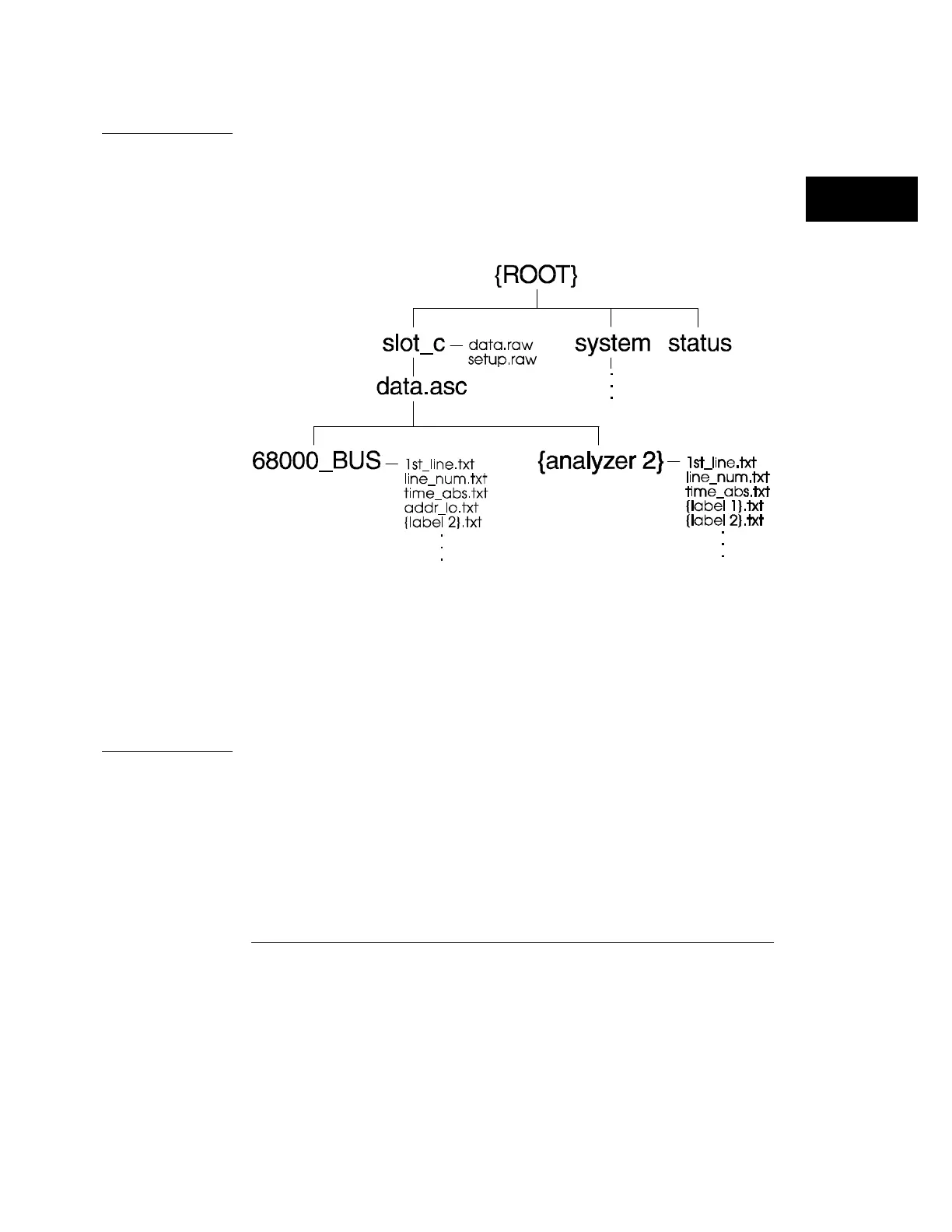

HP 16550A, including one called “addr_lo.” The directory structure of the
HP 16500C system looks like this:
After setting up a measurement and acquiring data, you want to analyze the
data for label addr_lo on your PC. To copy the ASCII data to your local
computer, enter the following command at the DOS prompt:
C:\ copy L:\slot_c\data.asc\68000_bus\addr_lo {local path
name}
If you are using a UNIX system, you might use the cp command. In the
Microsoft Windows environment, you can use the File Manager.
File Management
To transfer data files from the HP 16500C system to your computer
3–17
