HP 16700A - Page 45

44
16522p04
HP 16522AHP 16522A
HP 16522AHP 16522A
4-Card Module
Expander
J12 J11 J10 J9
J7 J8
Expander
J12 J11 J10 J9
J7 J8
Master
J12 J11 J10 J9
J7 J8
Expander
J12 J11 J10 J9
J7 J8
EXPANDER
MASTER
EXPANDER
EXPANDER
2x10 Cable

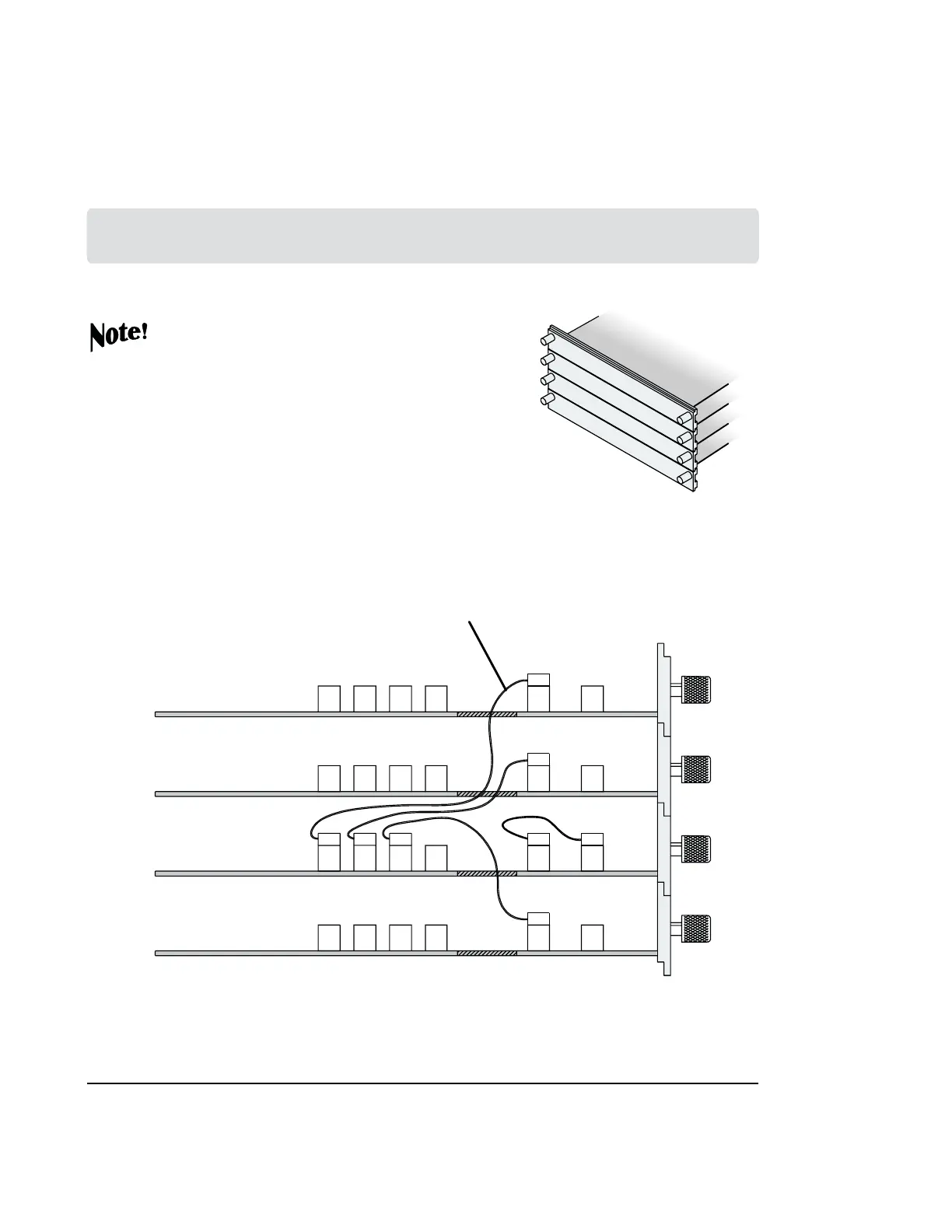

Carefully slide the four cards half way into the mainframe slots.
Cable the bottom Expander to the Master first.
Cable the upper two Expanders to the Card.
Gently slide the cabled assembly fully into the frame and
tighten.
for HP 16700A and HP 16702A
