HP 2009f User Manual
5
of 1
of 1 rating
72 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
20"
LCD
Color
Monitor
HP
2009M&2009F
10

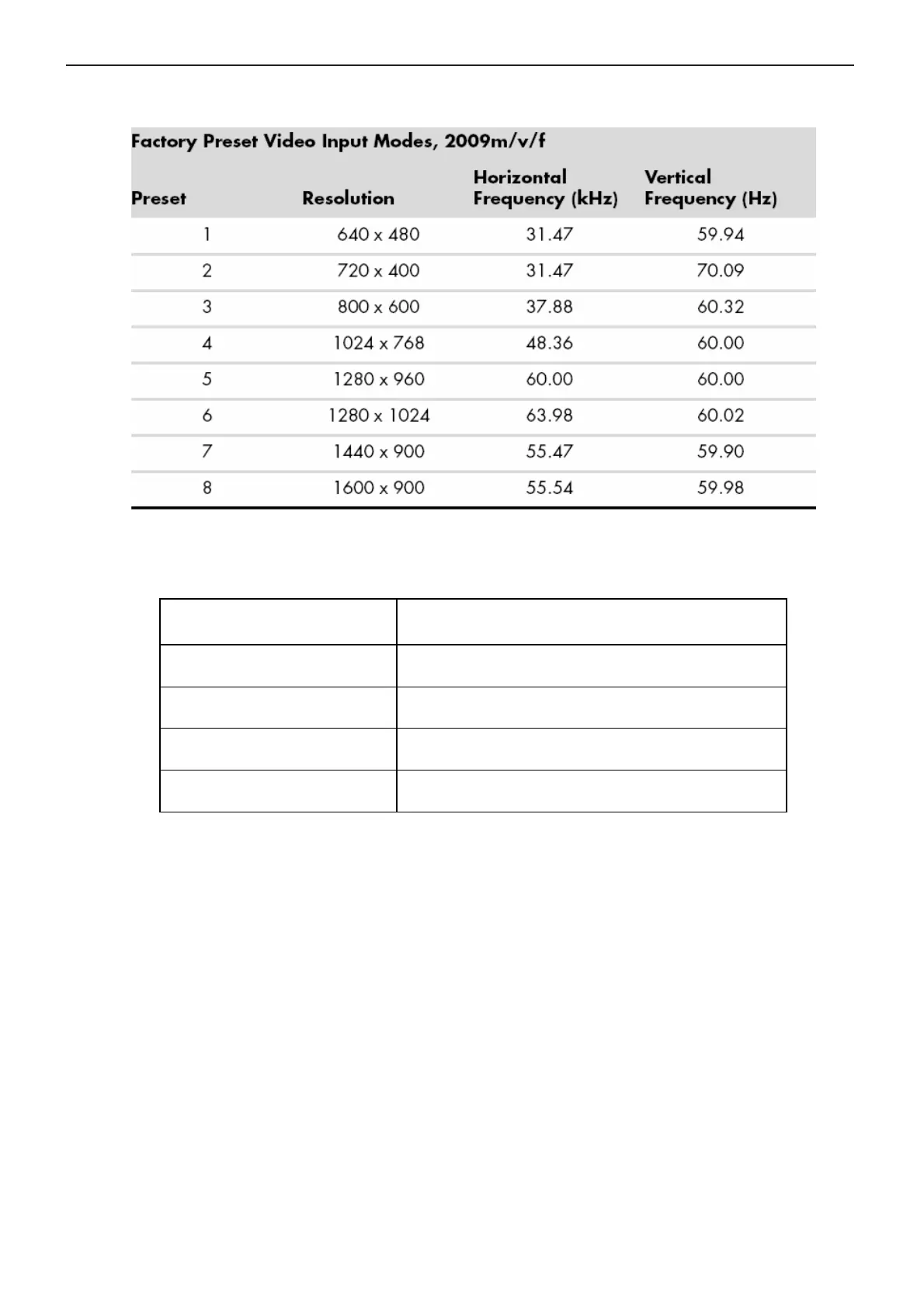

4.2 Factory Preset
Display Modes
4.3
Pow
er
Supply
Requirements
Parameter
Range
AC Input V
oltage
90 to 265V
AC Input Frequency
45 to 63 Hz
Inrush Current
50A
MAX
A
T 220V
AC and 30A
A
T 120V
AC
Leakage Current
5 mA
MAX at
120V
AC
9
11
Table of Contents
Table of Contents
1
Revision List
2
Remark
3
Monitor Specification
3
LCD Monitor Description
4
Operation Instruction
5
General Instructions
5
Control Button
5
Adjusting the Picture
6
Input/Output Specification
9
Input Signal Connector
9
Factory Preset Display Modes
10
Power Supply Requirements
10
Panel Specification
11
General Feature
11
Electrical Characteristics
11
Optical Characteristics
12
Block Diagram
14
Software Flow Chart
14
Electrical Block Diagram
16
Schematic
18
Main Board
18
Power Board
23
Key Board
26
PCB Layout
27
Main Board
27
Power Board
29
Key Board
30
Maintainability
31
Equipments and Tools Requirement
31
Trouble Shooting
32
White-Balance, Luminance Adjustment
38
Mechanical Instructions
40
Monitor Exploded View
45
BOM List
47
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HP 2009f and is the answer not in the manual?
Ask a question
HP 2009f Specifications
General
Brand
HP
Model
2009f
Category
Monitor
Language
English
