HP 2009v

20" LCD Color Monitor HP 2009v
17

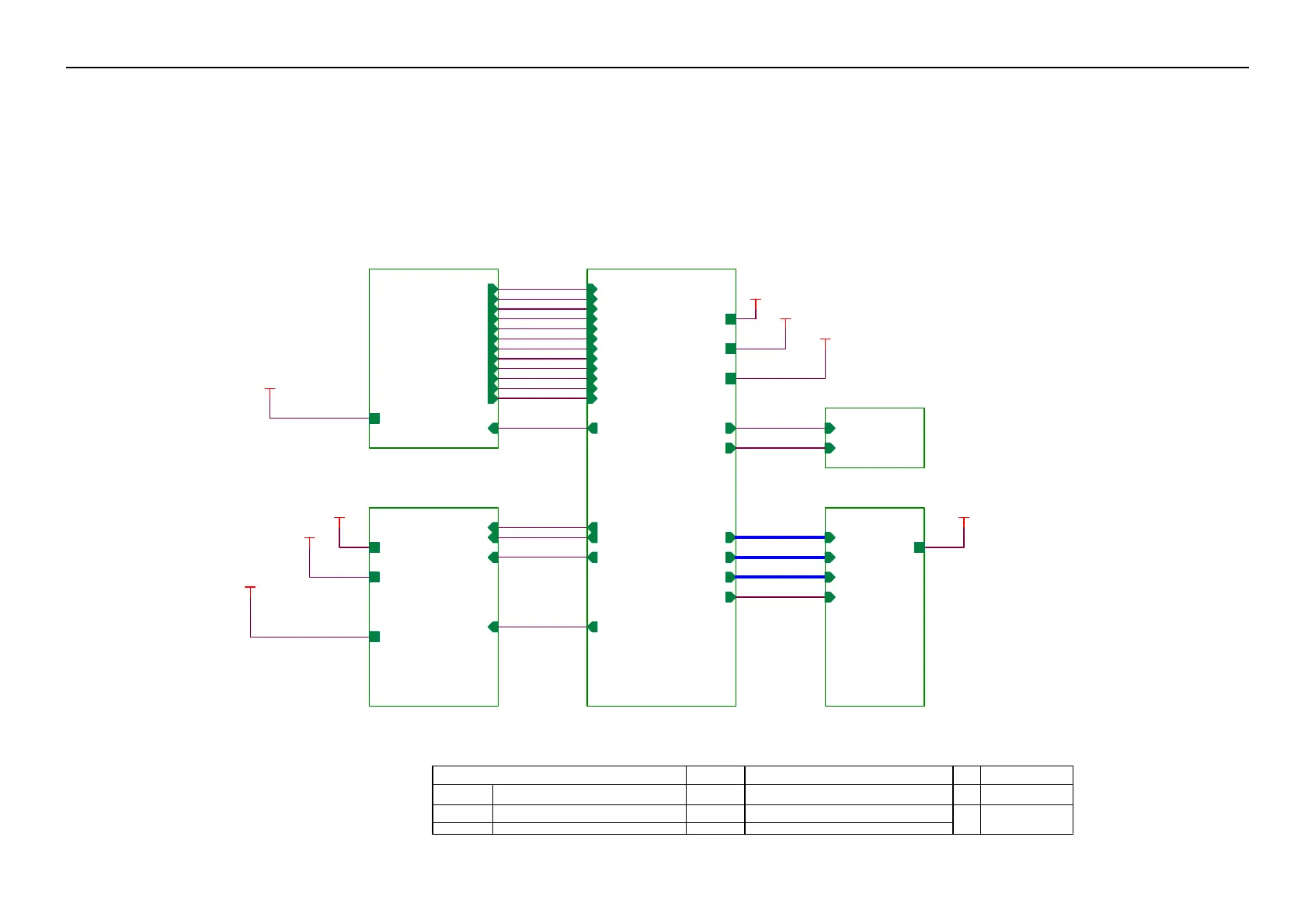

7. Schematic
7.1 Main Board
715G3281 1
PA[4..9]
PA[0..1]
02.Input
DSUB_R+
DSUB_G+
DSUB_B+
DSUB_V
DSUB_R-
DSUB_G-
DSUB_B-
DET_CABLE
DSUB_H
DSUB_SOG
DDC1_SDA
DDC1_SCL
VCC3.3
DDC_WP
VCC1.8
05.Power
on_BACKLIGHT
BKLT_VBRI
VCC1.8
CMVCC
VCC3.3
MU TE
VOLUME
LVDS OUTPUT
CMVCC
TSUMU18ER3 SCHEMATIC
VCC1.8
06.Audio
AudioSelf test_L
AudioSelf test_R
03.Scalar
DSUB_R+
DSUB_G+
DSUB_SOG
DSUB_B+
DSUB_R-
DSUB_G-
DSUB_B-
DSUB_H
DSUB_V
BKLT_VBRI
VCC1.8
VCC3.3
PA[0..1]
PB[0..9]
DDC1_SDA
DDC1_SCL
DET_CABLE
on_BACKLIGHT
PPWR_ON#
CMVCC
PA[4..9]
DDC_WP
VOLUME
MU TE
AudioSelf test_L
AudioSelf test_R
E
A
16Friday , December 05, 2008
<
称爹 >
01.TOP 715G3281-E
OEM MOD EL Size
Rev
Date
Sheet
of
TPV MOD EL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
CMVCC
VCC3.3
VCC3.3
PB[0..9]
VCC3.3
CMVCC
04.Output
CMVCC
PB[0..9]
PA[0..1]
PPWR_ON#
PA[4..9]
