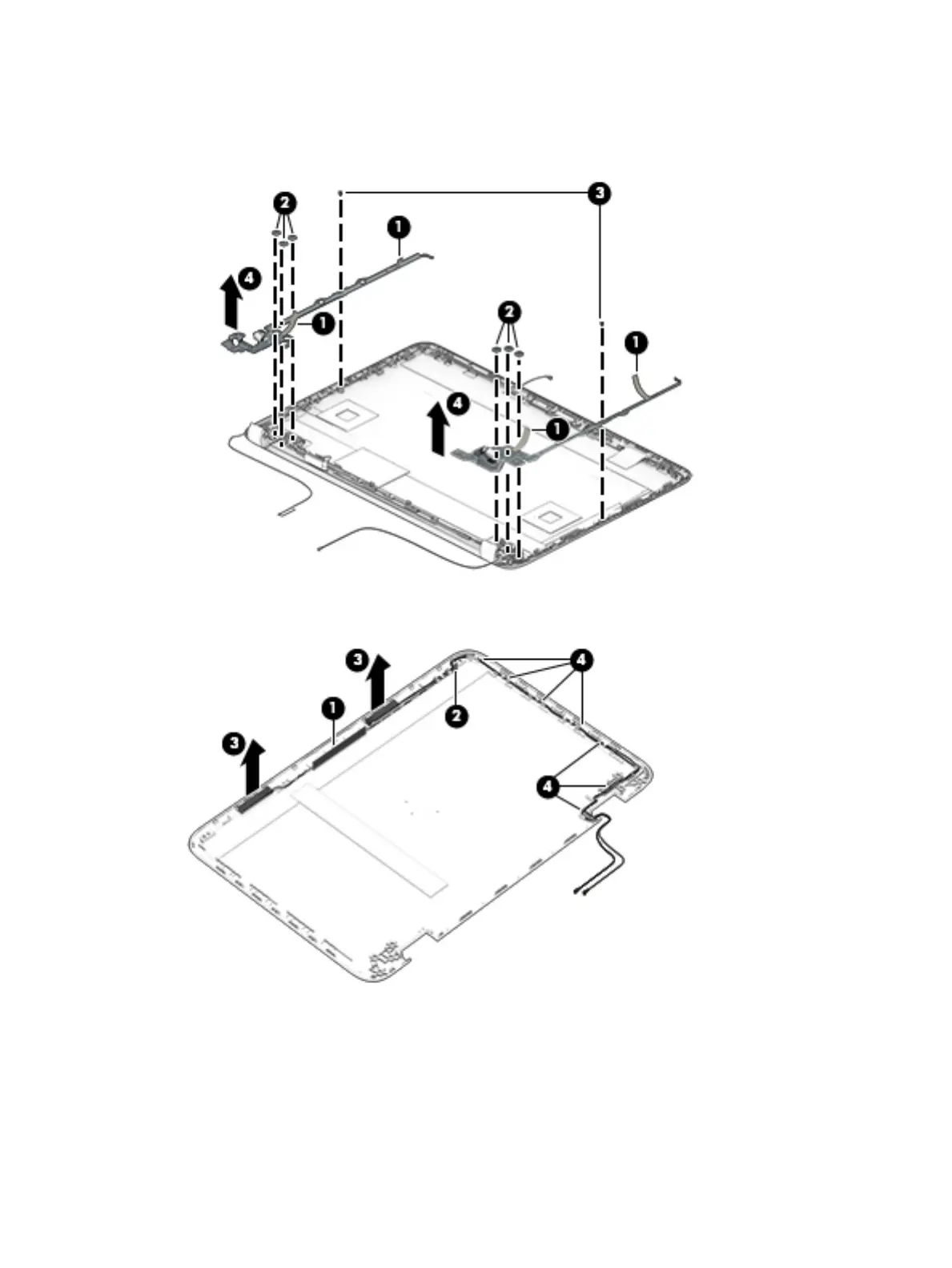

e. Remove the two Phillips PM2.0×3.0 screws (3) in the middle of the hinges that secure the left and
right hinges to the display enclosure.
f. Remove the left and right display hinges (4).
5. To remove the wireless antenna cables and transceivers, release the wireless antenna cables from the
clips built into the display enclosure (1), and then remove the cables (2).
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
