4.

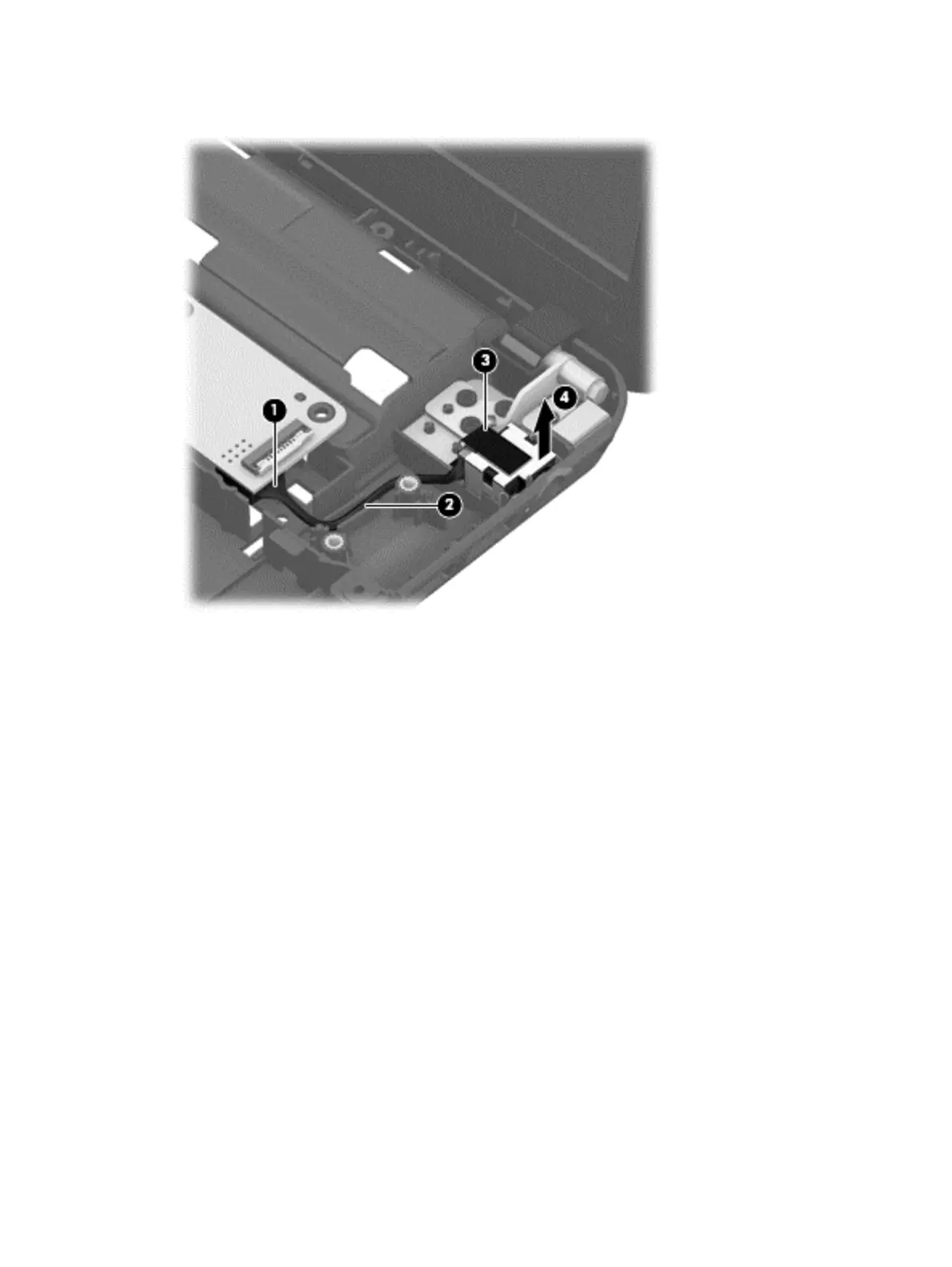

Remove the power connector cable
(4)
.
Reverse this procedure to
install the power connector cable.
92
Chapter 4 Removal an
d replacement procedures
99
101
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
HP 245 and HP 455 Models (AMD Models)
9
HP 240, HP 450, and HP 246 Models (Intel Models)
16
2 External Component Identification
27
Display
27
Front
28
Right Side
28
Left Side
29
Top
31
Touchpad
31
Lights
32
Buttons
33
Keys
34
Bottom
35
Labels
37
3 Illustrated Parts Catalog
38
Computer Major Components
38
Display Assembly Subcomponents
44
Mass Storage Devices
46
Plastics Kit
47
Miscellaneous Parts
48
Sequential Part Number Listing
49
4 Removal and Replacement Procedures
56
Preliminary Replacement Requirements
56
Tools Required
56
Service Considerations
56
Cables and Connectors
56
Plastic Parts
56
Drive Handling
57
Grounding Guidelines
57
Electrostatic Discharge Damage
57
Packaging and Transporting Guidelines
59
Equipment Guidelines
60
Component Replacement Procedures
61
Service Tag and PCID Label
61
Service Tag
61
PCID Label
62
Computer Feet
63
Battery
64
Display Subcomponents (Bezel, Webcam, Panel)
65
WLAN Module
72
Memory Module
75
Hard Drive
78
RTC Battery
81
Optical Drive
82
Keyboard
84
Top Cover
87
Power Button Board
91
Touchpad Button Board
93
Speakers
95
USB Board
97
Power Connector Cable
99
Display Assembly
101
System Board
110
Optical Drive Cable
115
Fan/Heat Sink Assembly
117
Processor
123
5 Using Setup Utility (BIOS) and System Diagnostics in Windows 8
126
Starting Setup Utility (BIOS)
126
Updating the BIOS
126
Determining the BIOS Version
126
Downloading a BIOS Update
127
Using System Diagnostics
128
6 Using Setup Utility (BIOS) and System Diagnostics in Windows 7
129
Starting Setup Utility (BIOS)
129
Updating the BIOS
129
Determining the BIOS Version
129
Downloading a BIOS Update
130
Using System Diagnostics
131
7 Specifications
132
Computer Specifications
132
14.0-Inch Display Specifications
133
Hard Drive Specifications
134
8 Backing Up, Restoring, and Recovering in Windows 8
135
Creating Recovery Media and Backups
136
Creating HP Recovery Media
136
Restore and Recovery
138
Using Windows Refresh for Quick and Easy Recovery
139
Remove Everything and Reinstall Windows
139
Recovering Using HP Recovery Manager
140
What You Need to Know
140
Changing the Computer Boot Order
141
Using HP Recovery Media to Recover
141
Using the HP Recovery Partition to Recover a Minimized Image (Select Models Only)
141
Removing the HP Recovery Partition
142
9 Backing Up, Restoring, and Recovering in Windows 7
143
Creating Backups
143
Creating Recovery Media to Recover the Original System
143
What You Need to Know
143
Creating the Recovery Media
144
Creating System Restore Points
144
What You Need to Know
144
Creating a System Restore Point
145
Backing up System and Personal Information
145
Tips for a Successful Backup
145
What You Need to Know
145
Creating a Backup Using Windows Backup and Restore
146
Restore and Recovery
147
Restoring to a Previous System Restore Point
147
Restoring Specific Files
147
Restoring Specific Files Using Windows Backup and Restore
147
Recovering the Original System Using HP Recovery Manager
147
Recovering Using HP Recovery Partition (Select Models Only)
148
What You Need to Know
148
Recovering Using the Recovery Media
149
Changing the Computer Boot Order
149
10 Power Cord Set Requirements
150
Requirements for All Countries
150
Requirements for Specific Countries and Regions
151
11 Recycling
153
Battery
153
Display
153
