HP 246 User Manual

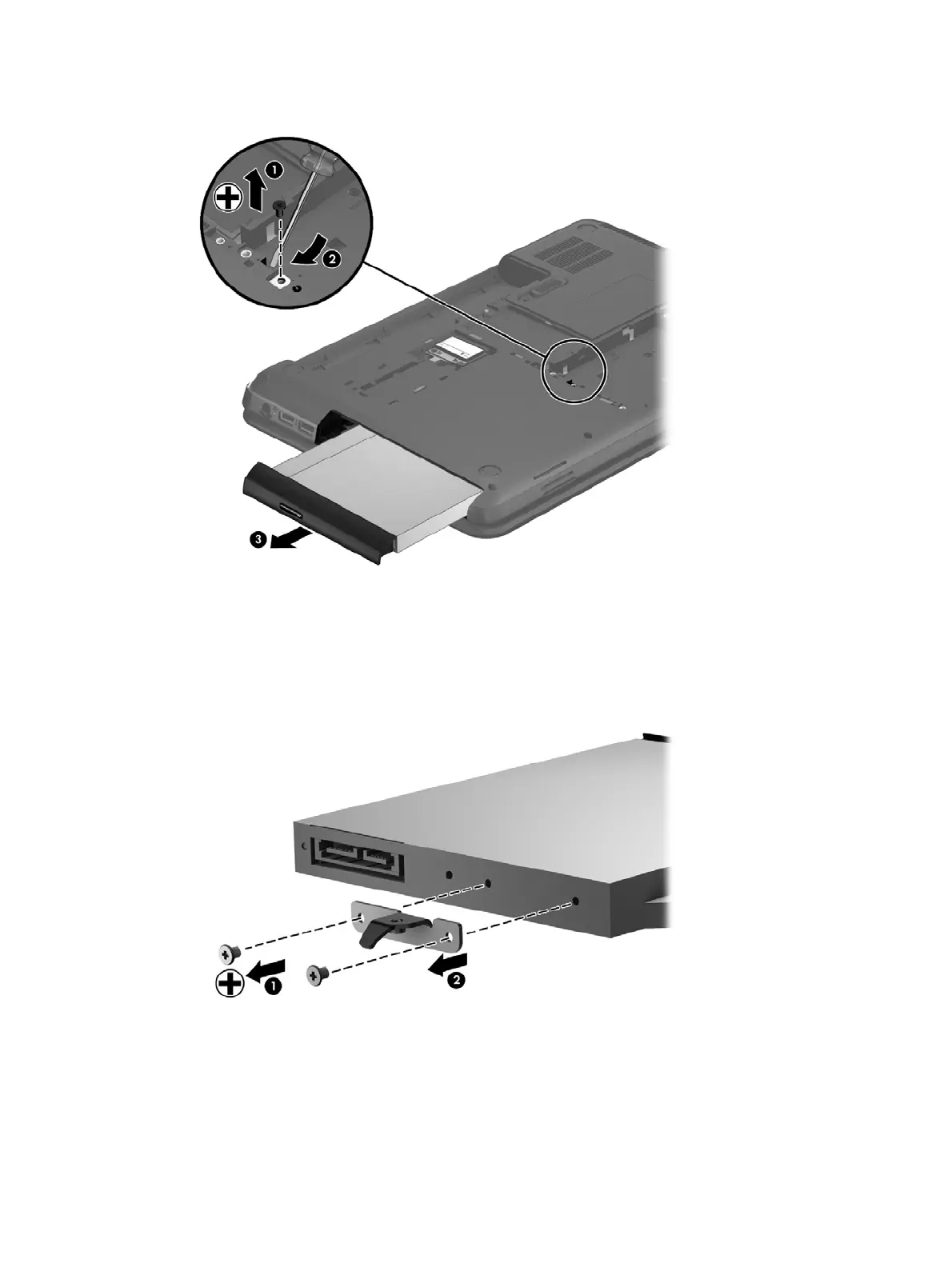

3. Remove the optical drive (3) by sliding it out of the optical drive bay.
4. If it is necessary to replace the optical drive bracket on the rear of the optical drive, position the
optical drive with the rear panel toward you.
5. Remove the two Phillips PM2.0×3.0 screws (1) that secure the bracket to the optical drive.
6. Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install the optical drive.
Component replacement procedures
75

HP 246 Specifications

General

Category	Laptop
RAM	4 GB
Display	14 inch
Graphics	Intel HD Graphics
Ports	HDMI, RJ-45, headphone/microphone combo jack
Wireless	Bluetooth
