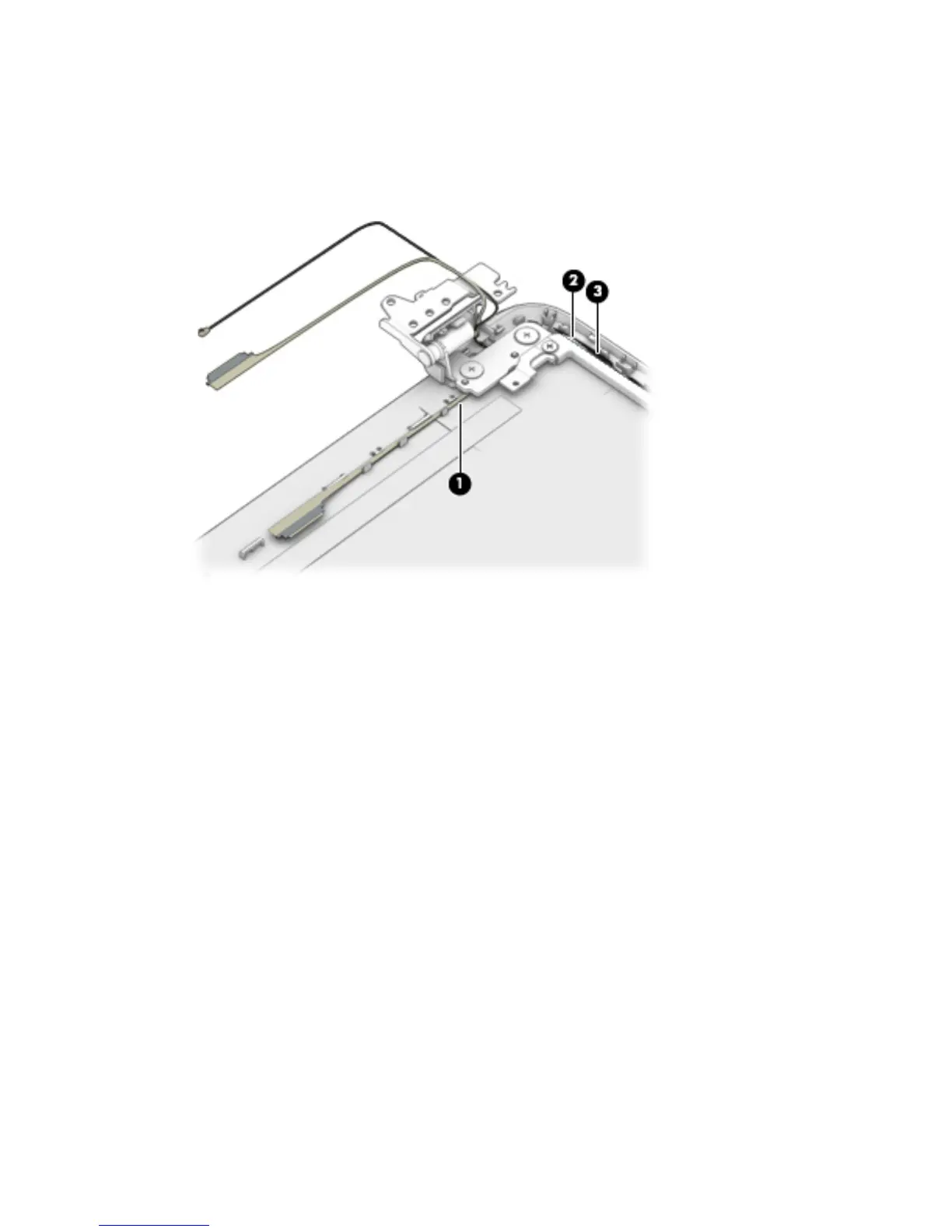

4. Use the following image to determine proper cable routing around the hinge.
(1): Display cable routing path
(2): Webcam cable routing path
(3): Antenna cable routing path
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display bezel:
a. Flex the inside of the top edge (1), the left and right edges (2), and the bottom edge (3) of the
display bezel until the bezel disengages from the display enclosure.
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
