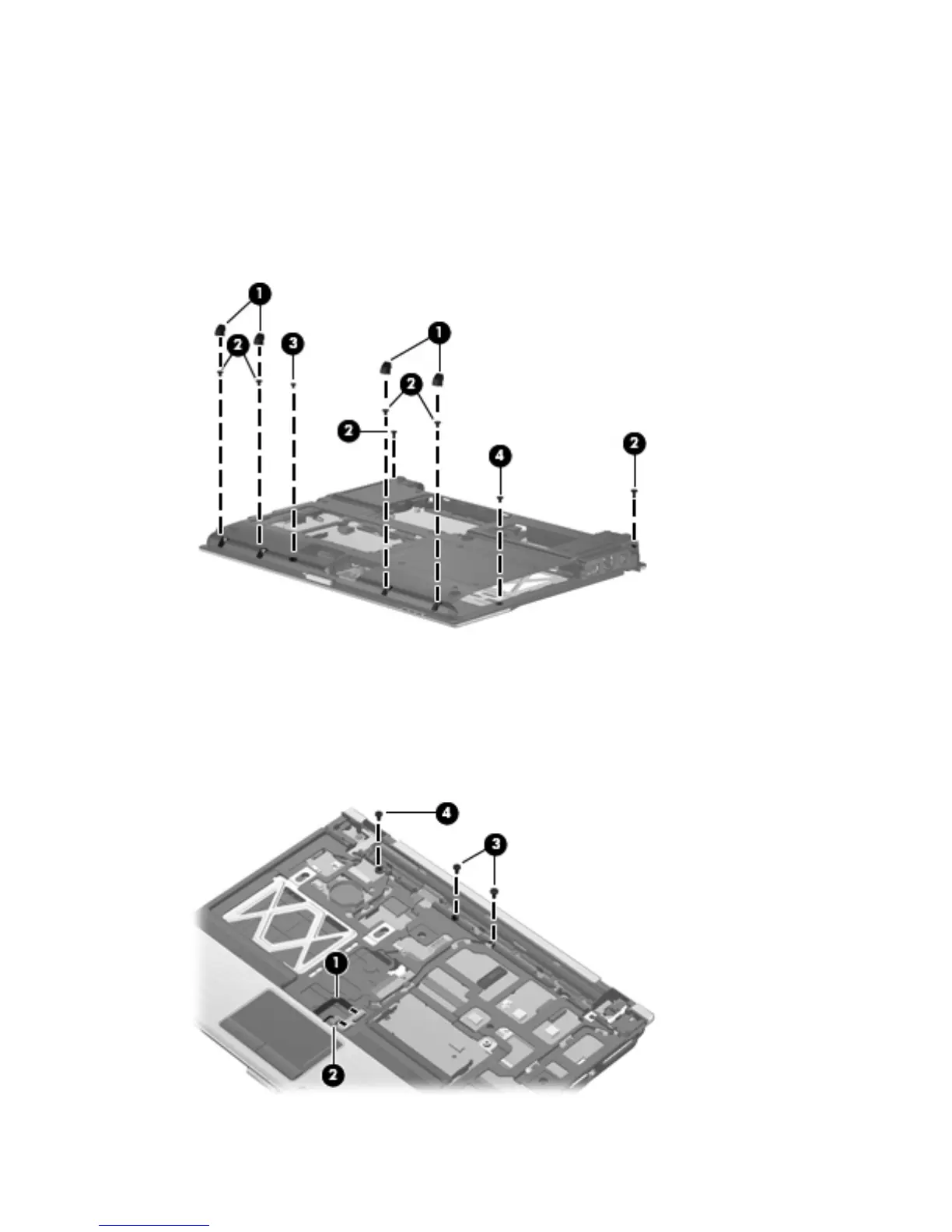

2. Remove the following screw covers and screws:
(1) Four rubber screw covers. The rubber screw covers are included in the Rubber Kit, spare
part number 481106-001.
(2) Six Torx T8M2.5×6.0 screws.
(3) One Phillips PM2.0×5.0 screw.
(4) One Torx T8M2.0×5.0 screw.
3. Turn the computer right-side up, with the front toward you.
4. Disconnect the TouchPad cable (1), and the fingerprint reader board cable (2) from the system
board.
5. Remove the two Torx T8M2.5×6.0 screws (3) and the Phillips PM2.0×6.0 screw (4) that secure
the top cover to the computer.
80 Chapter 4 Removal and replacement procedures
