17

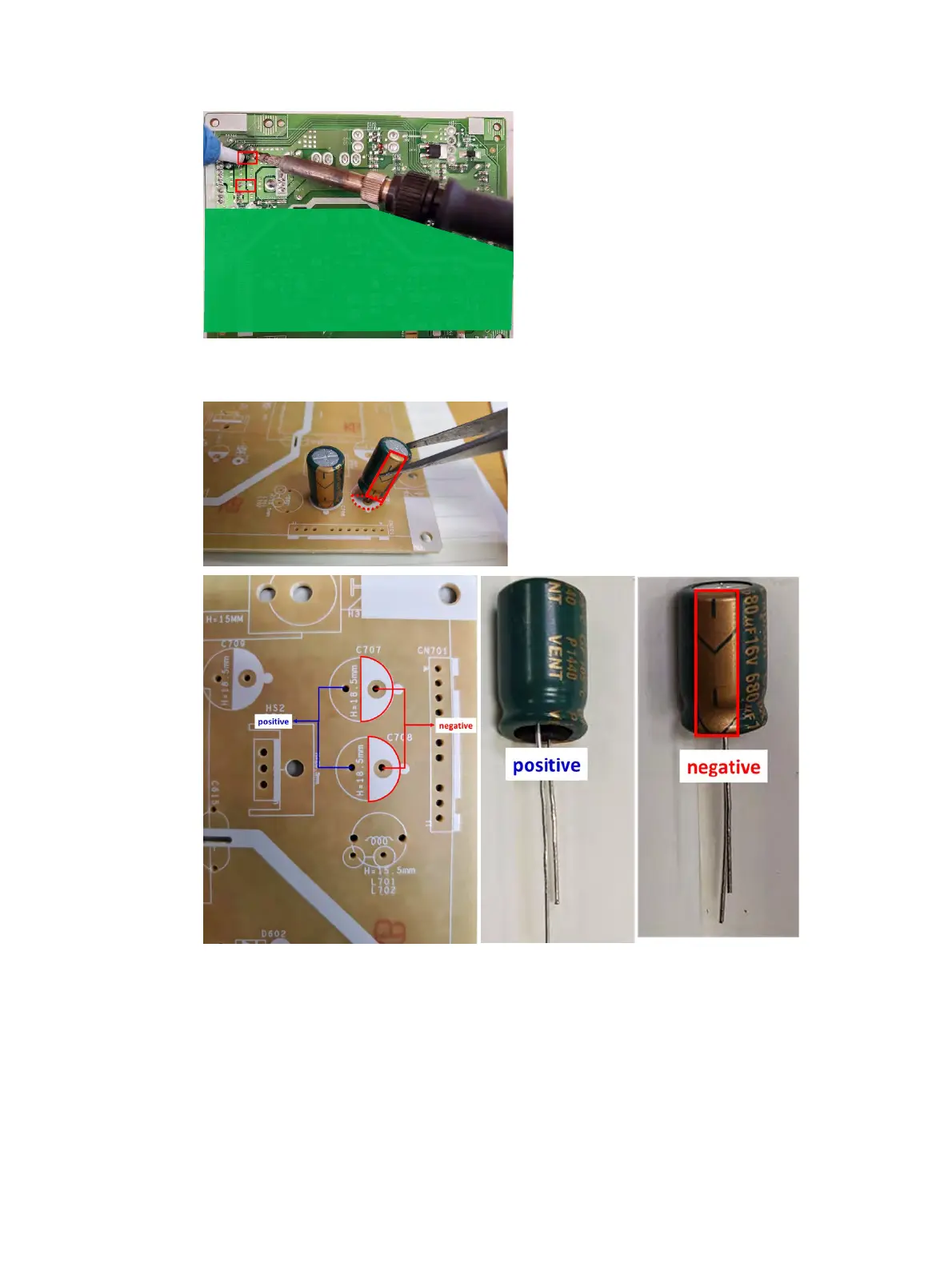

3) Lift capacitors from the PCB.
4) Place new component on the location, and must check polarity match PCB
print.
5) After repaired, please double check whether polarity match PCB print,
solder empty and unnecessary solder after soldering must remove.
Power Board
