HP 3000 Series Installation Manual

Series 44/48 to 58 Memory Upgrade
CPU INSTALLATION
Materials used in this procedure are the CPS-F PCA (P / N 30476-60002), the ALU-F PCA (P / N 30476-6000I), the
CM P-2 PCA (P / N 30090-60087), two three-card FCAs (P / N 30000-93053), and a card cage label (P / N 30477-80200).
No tools are needed.
See Figure 2-2 while performing the following procedure.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
memory bus ~ i t ~ ~ ~
- - - - - ;D ~ Jt • It - - -,IrJl-n-j- - ~ - - - - - - - - -. - - ~
- .. ...
J1
I- I-
---~]-n-]-- - -----------1-
I- -
J2
1=---------- ... ~
J3
-
-;.... I--
Card Cage #1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Input/output ~ memory' Input/output
--------j---~~~-~~-----------
I- I- I- -
J1
J2
J3
---------
- --------
~ -
----1---1-------------
u
l!) '"
o 0
§ §: \
E ~
~ ~
~ a:
------I-~~-----------
- -------- ---- - -1--1------------
'requires 9-card ribbon cable
Card Cage #2
2-2

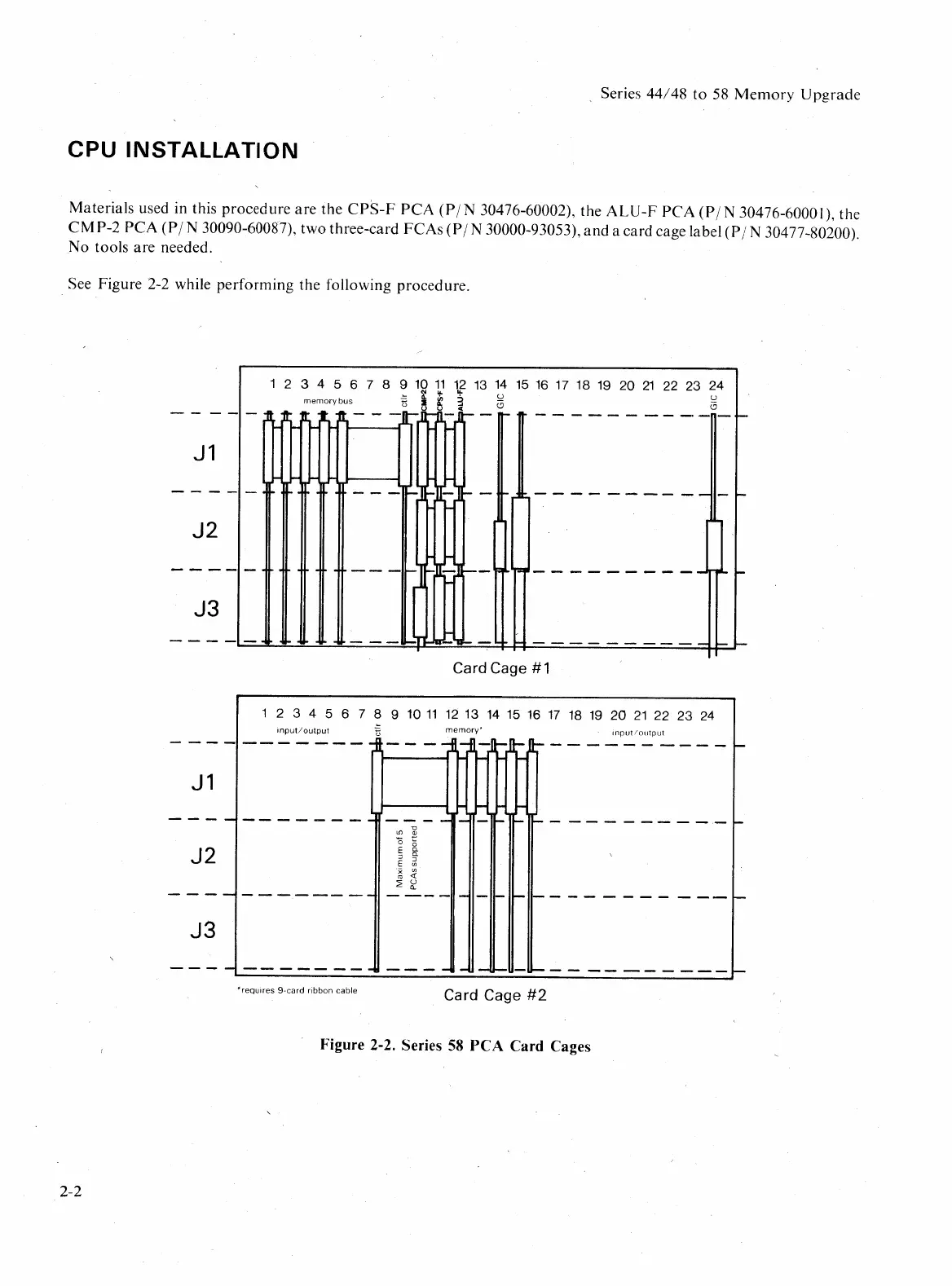

Figure 2-2. Series 58 PCA Card Cages
