HP 3000 Series Installation Manual

Series 44/48 to 58 Memory Upgrade
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I

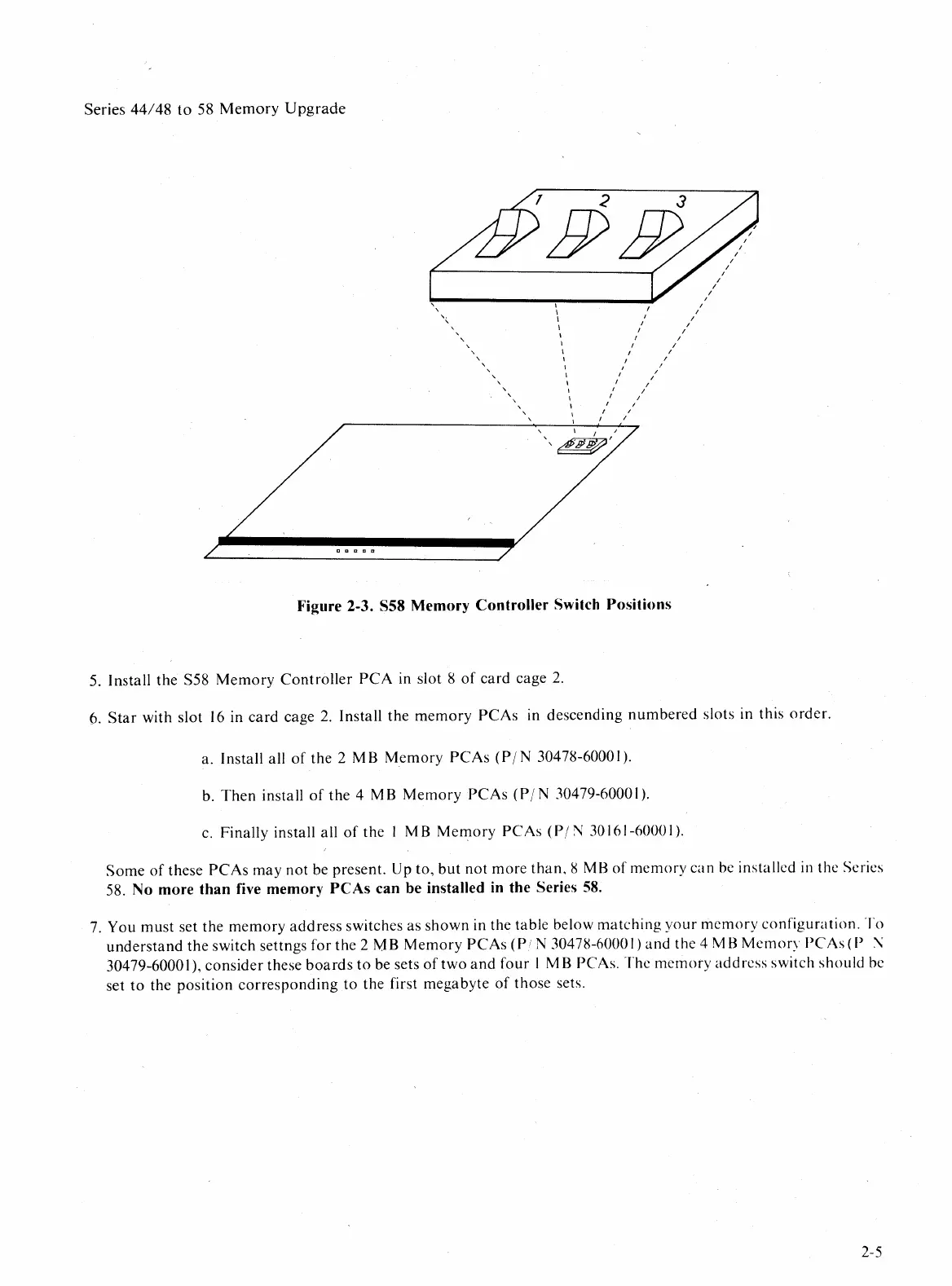

Figure 2-3. S58 Memory Controller Switch Positions
5. Install the S58 Memory Controller PCA in slot 8 of card cage 2.
6.
Star with slot 16 in card cage 2. Install the memory PCAs in descending numbered slots in this order.
a. Install all of the 2 M B Memory PCAs (PIN 30478-6000 I).
b.
Then install of the 4 MB Memory PCAs (PIN 30479-60001).
c. Finally install all of the I MB Memory PCAs (PIN 30161-60(01).
Some of these PCAs may not be present. Up to, but not more than, 8 MB of memory can be installed in the Series
58.
No more than five memory peAs can be installed in the Series 58.
7. You must set the memory address switches as shown in the table below matching your memory configuration. To
understand the switch settngs for the 2 MB Memory PCAs (Pi N 30478-6000 I) and the 4 M B Memory PC As (P :\
30479-6000I), consider these boards to be sets of two and four 1MB PC As. The memory address switch should be
set
to the position corresponding to the first megabyte of those sets.
