118 Removal and replacement
EN
4 Disconnect the thermistor feedback connector (callout 1) in the
left, front side of the fusing assembly.

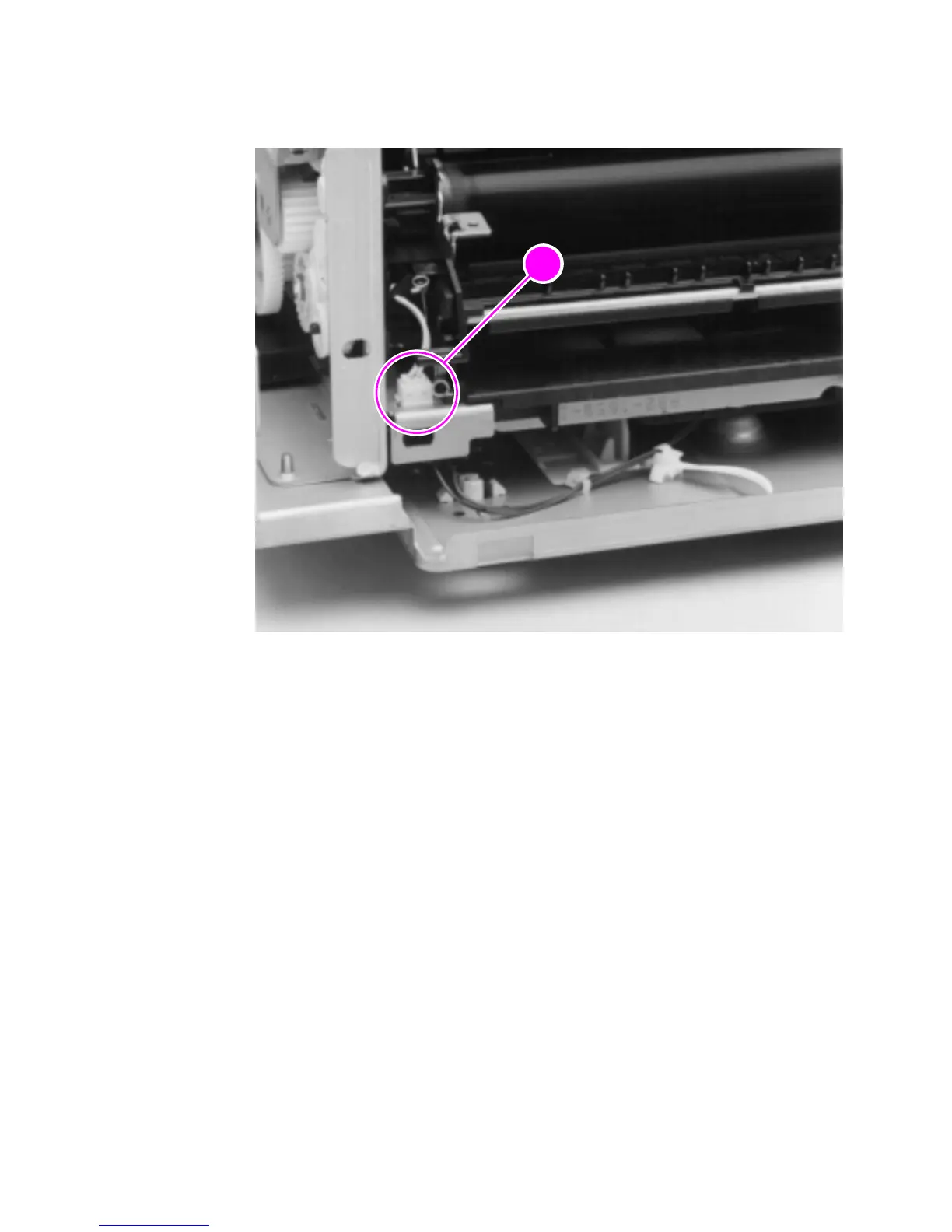

Figure 46. Heating element removal (2 of 2)
5 Lift the heating element out.
To reinstall
Make sure the connectors are properly reattached and that the
thermistor feedback cable is routed behind the face-up/face-down
lever.
