HP 3245A - Page 50

Reference HP Part
Designation Number
A7
03458-6650 I
A7C1-C3 0160-4832
A7CR1-CR5
1902-065,
A7LBL 1
7121-714f
A7LBL2 9320-5333
A7PCB7 03458-26507
A7Q1
1853-051C
A7R1 0757-0273
A7R2
0757-0442
A7R3 0757-045f
A7SHD 1- SHD2 03458-00604
A7U1
2090-0211
A7U2 1820-5281
A7U3 1820-5286
A7W1 03458-6160t
Qty
1
3
5
1
1
1
1
1
1
1
2
1
1
1
1
03458-66507

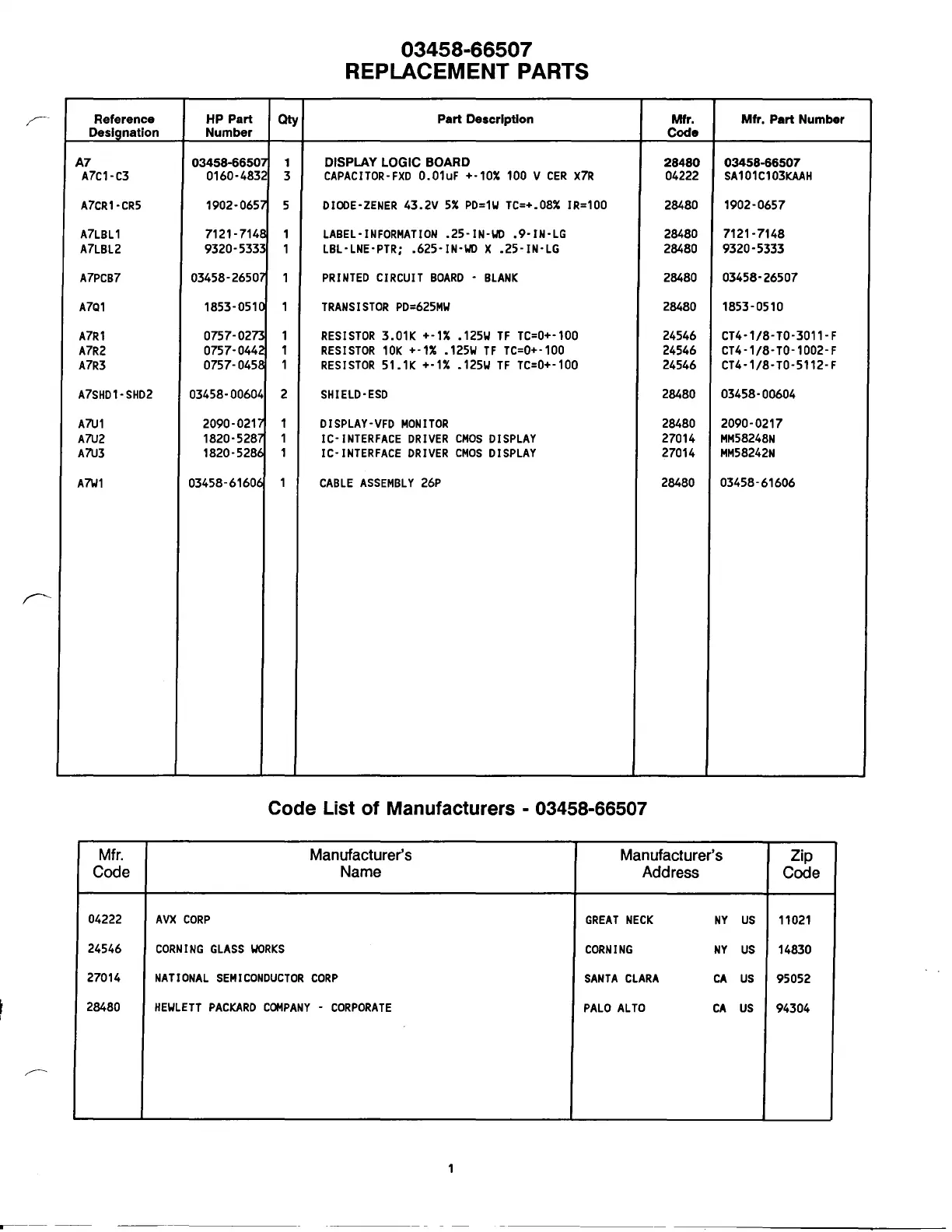

REPLACEMENT PARTS
Part Description
DISPLAY
LOGIC BOARD
CAPACITOR-FXD 0.01uF +-10% 100 V CER X7R
DIODE-ZENER 43.2V 5% PD=1W TC=+.08% IR=100
LABEL-INFORMATION .25-IN-WD .9-IN-LG
LBL-LNE-PTR; .625-IN-WD X .25-IN-LG
PRINTED CIRCUIT BOARD
- BLANK
TRANSISTOR PD=625MW
RESISTOR 3.01K +-1% .125W TF TC=0+-100
RESISTOR 10K +-1% .125W TF TC=0+-100
RESISTOR 51.1K +-1% .125W TF TC=0+-100
SHIELD-ESD
DISPLAY-VFD MONITOR
IC-INTERFACE DRIVER CMOS DISPLAY
IC-INTERFACE DRIVER CMOS DISPLAY
CABLE ASSEMBLY 26P
Code List of Manufacturers - 03458-66507
Mfr.
Mfr.
Part Number
Code
28480 03458-66507
04222 SA101C103KAAH
28480 1902-0657
28480 7121-7148
28480 9320-5333
28480 03458-26507
28480
1853-0510
24546 CT4-1/8-TO-3011-F
24546 CT4-1/8-TO-1002-F
24546 CT4-1/8-TO-5112-F
28480 03458-00604
28480 2090-0217
27014 MM58248N
27014 MM58242N
28480 03458-61606
Mfr. Manufacturer's
Manufacturer's
Zip
Code
Name
Address
Code
04222
AVX CORP
GREAT NECK NY US
11021
24546 CORNING GLASS WORKS
CORNING NY
US 14830
27014 NATIONAL SEMICONDUCTOR CORP
SANTA CLARA CA US
95052
28480
HEWLETT PACKARD COMPANY - CORPORATE
PALO ALTO
CA US
94304
