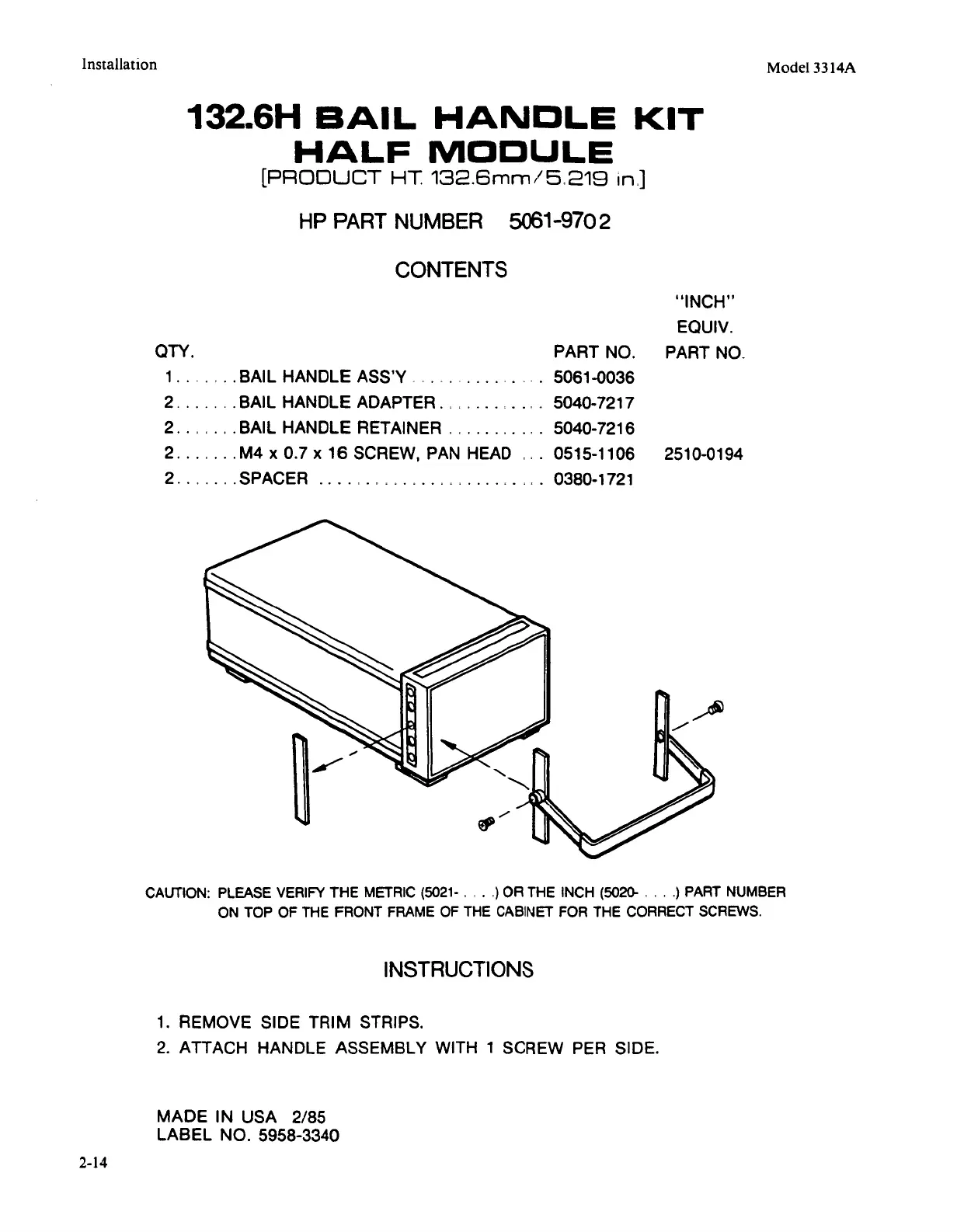

Installation
132.6H BAIL HANDLE KIT
HALF MODULE
[PRODUCT HT 132.6mm/5,219 In,]
HP PART NUMBER 5061-9702
CONTENTS
"INCH"
EQUIV.
QTY. PART NO. PART
NO.
1 .. - . , .. BAIL HANDLE ASS'Y - - , - . -. . . . . 5061-0036
2
, .BAIL HANDLE ADAPTER. . . . .. . . 5040-7217
2
.. " BAIL HANDLE RETAINER" .... , .. ,. 5040-7216
2 , M4
x 0.7 x 16 SCREW, PAN HEAD". 0515-1106 2510-0194
2 , SPACER
.... ,.",., .. ", .... ,.". 0380-1721
Model 33I4A
CAUTION: PLEASE VERIFY THE METRIC (5021- , , . ,) OR THE INCH (5O~ , , , ,) PART NUMBER
ON TOP OF THE FRONT FRAME OF THE CABINET FOR THE CORRECT SCREWS.
INSTRUCTIONS
1. REMOVE SIDE TRIM STRIPS.
2. ATTACH HANDLE ASSEMBLY WITH 1 SCREW PER SIDE.
MADE IN USA 2/85
LABEL NO. 5958-3340
