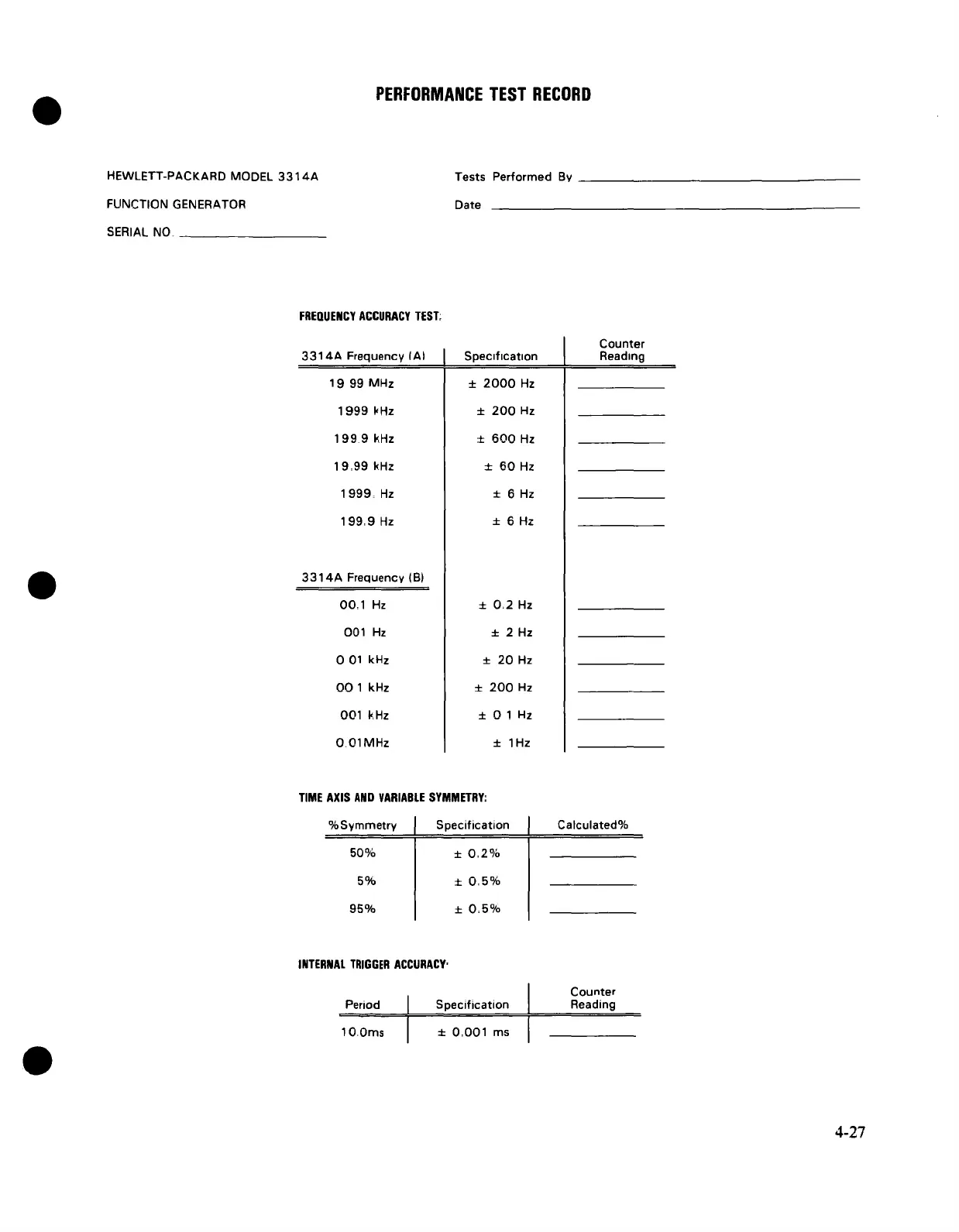

HEWLETT-PACKARD MODEL 3314A
FUNCTION GENERATOR
SERIAL NO. _
PERFORMANCE TEST RECORD
Tests Performed By _
Date
FREQUENCY ACCURACY TEn
Counter
3314A Frequency fAI
Specification Reading
1999 MHz
± 2000 Hz
1999 ~Hz ± 200 Hz
1999 kHz
± 600 Hz
19,99 kHz
± 60 Hz
1999, Hz
± 6 Hz
199,9 Hz ± 6 Hz
3314A Frequency (B)
00,1 Hz
± 0,2 Hz
001 Hz
± 2 Hz
001 kHz
± 20 Hz
001 kHz ± 200 Hz
001 kHz
± 01 Hz
O.OlMHz ± 1Hz
TIME AXIS AND VARIABLE SYMMETRY:
%Symmetry
50%
5%
95%
Specification
± 0,2%
± 0,5%
± 0,5%
Calculated%
INTERNAL TRIGGER ACCURACY'
Penod
10,Oms
Specification
± 0,001 ms
Counter
Reading
