HP 3314A - Page 68

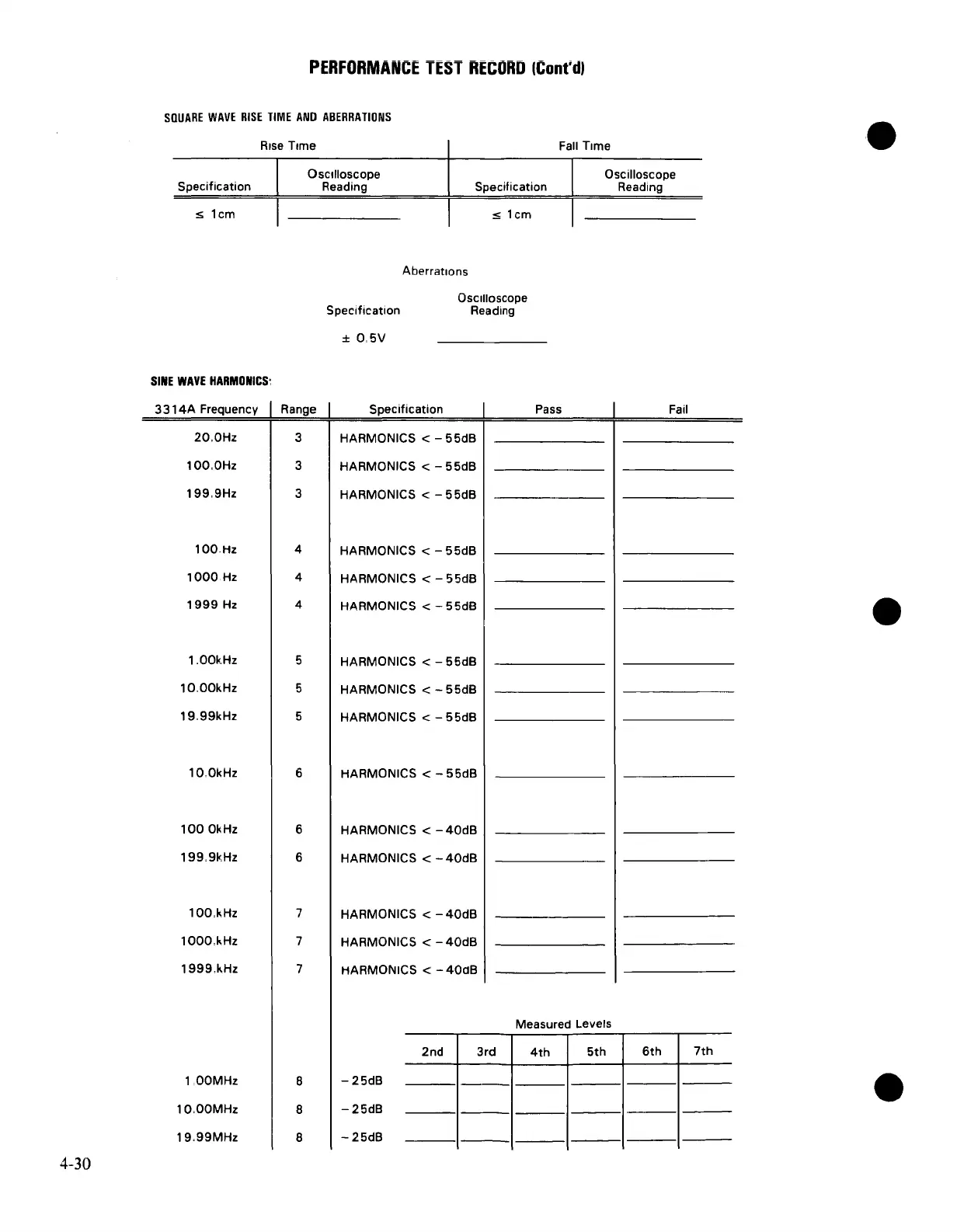

PERFORMANCE TEST RECORD ICont'd)
SQUARE WAVE RISE TIME AND ABERRATIONS
Specification
:s 1cm
Rise TIme
Oscilloscope
Reading
Specification
±
0,5V
Specification
:s 1cm
Aberrations
OSCilloscope
Reading
Fall Time
Oscilloscope
Reading
SINE WAVE HARMONICS~
3314A Frequency I Range I
Specification
Pass Fall
4-30
20,OHz
3
HARMONICS < - 55dB
100,OHz
3
HARMONICS < - 55dB
199,9Hz
3
HARMONICS < - 55dB
100Hz 4
HARMONICS
< - 55dB
1000Hz
4
HARMONICS
< - 55dB
1999 Hz 4
HARMONICS
< - 55dB
1,00kHz
5
HARMONICS
< - 55dB
10,00kHz
5
HARMONICS
< - 55dB
19,99kHz
5
HARMONICS
< - 55dB
10,OkHz
6
HARMONICS < - 55dB
100 OkHz
6
HARMONICS
< - 40dB
199,9kHz
6
HARMONICS
< - 40dB
100,kHz
7
HARMONICS
< - 40dB
1000,kHz
7
HARMONICS
< - 40dB
1999,kHz
7
HARMONICS
< - 40dB
Measured Levers
2nd
3rd
4th
5th
6th
7th
100MHz
B
-25dB
10,00MHz
B
-25dB
19,99MHz
B
-25dB
