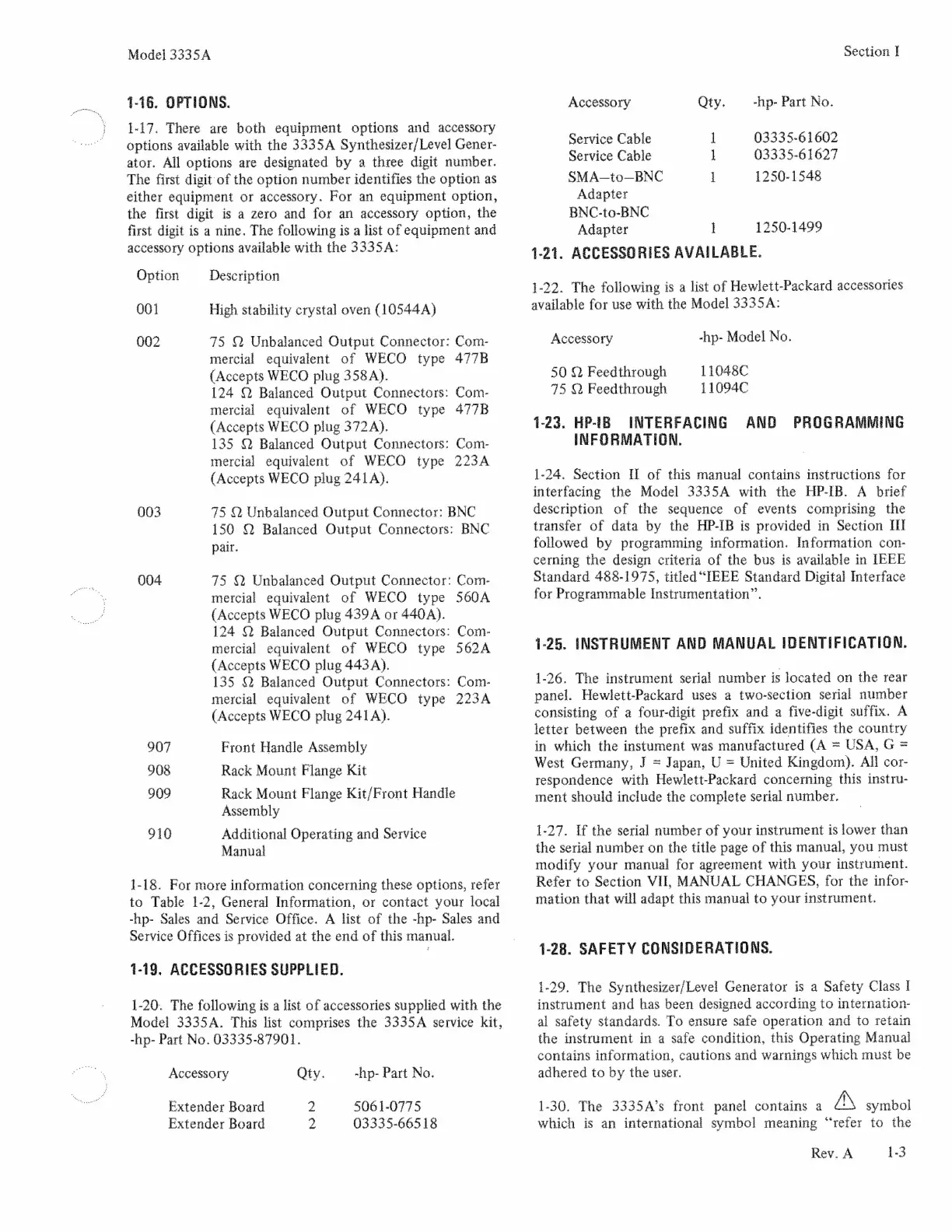

Model 3335A
1-16. OPTIONS.
1-17. There are both equipment options and accessory
options available with the 3335A Synthesizer/Level Gener-
ator. All options are designated by a three digit number.
The first digit of the option number identifies the option as
either equipment or accessory. For an equipment option,
the first digit is a zero and for an accessory option, the
first digit is a nine. The following is a list of equipment and
accessory options available with the 3335A:
Option Description
001 High stability crystal oven (10544A)
002 75 Q Unbalanced Output Connector: Com-
mercial equivalent of WECO type 477B
(Accepts WECO plug 358A).
124 Q Balanced Output Connectors: Com-
mercial equivalent of WECO type 477B
(Accepts WECO plug 372A).
135 Q Balanced Output Connectors: Com-
mercial equivalent of WECO type 223A
(Accepts WECO plug 241A).
003 75 £2 Unbalanced Output Connector: BNC
150 Q Balanced Output Connectors: BNC
pair.
004. 75 Q Unbalanced Output Connector: Com-
mercial equivalent of WECO type 560A
(Accepts WECO plug 439A or 440A).
124 9 Balanced Output Connectors: Com-
mercial equivalent of WECO type 562A
{Accepts WECO plug 443A).
135 Q Balanced Output Connectors: Com-
mercial equivalent of WECO type 223A
(Accepts WECO plug 241A).
907 Front Handle Assembly
908 Rack Mount Flange Kit
909 Rack Mount Flange Kit/Front Handle
Assembly
910 Additional Operating and Service
Manual
1-18. For more information concerning these options, refer
to Table 1-2, General Information, or contact your local
-hp- Sales and Service Office. A list of the -hp- Sales and
Service Offices is provided at the end of this manual.
1-19. ACCESSORIES SUPPLIED.
1-20. The following is a list of accessories supplied with the
Model 3335A. This list comprises the 3335A service kit,
-hp- Part No. 03335-87901.
Accessory Qty. -hp- Part No.
Extender Board 2 5061-0775
Extender Board 2 03335-66518
Section |
Accessory Qty. -hp- Part No.
Service Cable l 03335-61602
Service Cable 1 03335-61627
SMA—to—BNC l 1250-1548
Adapter
BNC-to-BNC
Adapter l 1250-1499
1-21. ACCESSORIES AVAILABLE.
1-22.
The
following
is
a
list
of
Hewlett-Packard
accessories
available
for
use
with
the
Model
3335A:
Accessory -hp- Modei No.
50 Q2 Feedthrough 11048C
75 Q Feedthrough 11094C
1-23. HP-IB INTERFACING AND PROGRAMMING
INFORMATION.
1-24. Section H of this manual contains instructions for
interfacing the Model 3335A with the HP-IB. A brief
description of the sequence of events comprising the
transfer of data by the HP-IB is provided in Section III
followed by programming information. Information con-
cerning the design criteria of the bus is available in IEEE
Standard 488-1975, titled “IEEE Standard Digital Interface
for Programmable Instrumentation”.
1-25. INSTRUMENT AND MANUAL IDENTIFICATION.
1-26. The instrument serial number is located on the rear
panel. Hewlett-Packard uses a two-section serial number
consisting of a four-digit prefix and a five-digit suffix. A
letter between the prefix and suffix identifies the country
in which the instument was manufactured (A = USA, G =
West Germany, J = Japan, U = United Kingdom). AH cor-
respondence with Hewlett-Packard concerning this instru-
ment should include the complete serial number.
1-27. H the serial number of your instrument is lower than
the serial number on the title page of this manual, you must
modify your manual for agreement with your instrument.
Refer to Section VII, MANUAL CHANGES, for the infor-
mation that will adapt this manual to your instrument.
1-28. SAFETY CONSIDERATIONS.
1-29. The Synthesizer/Level Generator is a Safety Class I
instrument and kas been designed according to internation-
al safety standards. To ensure safe operation and to retain
the instrument in a safe condition, this Operating Manual
contains information, cautions and warnings which must be
adhered to by the user.
1-30. The 3335A’s front panel contains a A symbol
which is an international symbol meaning “refer to the
Rev. A 1-3
