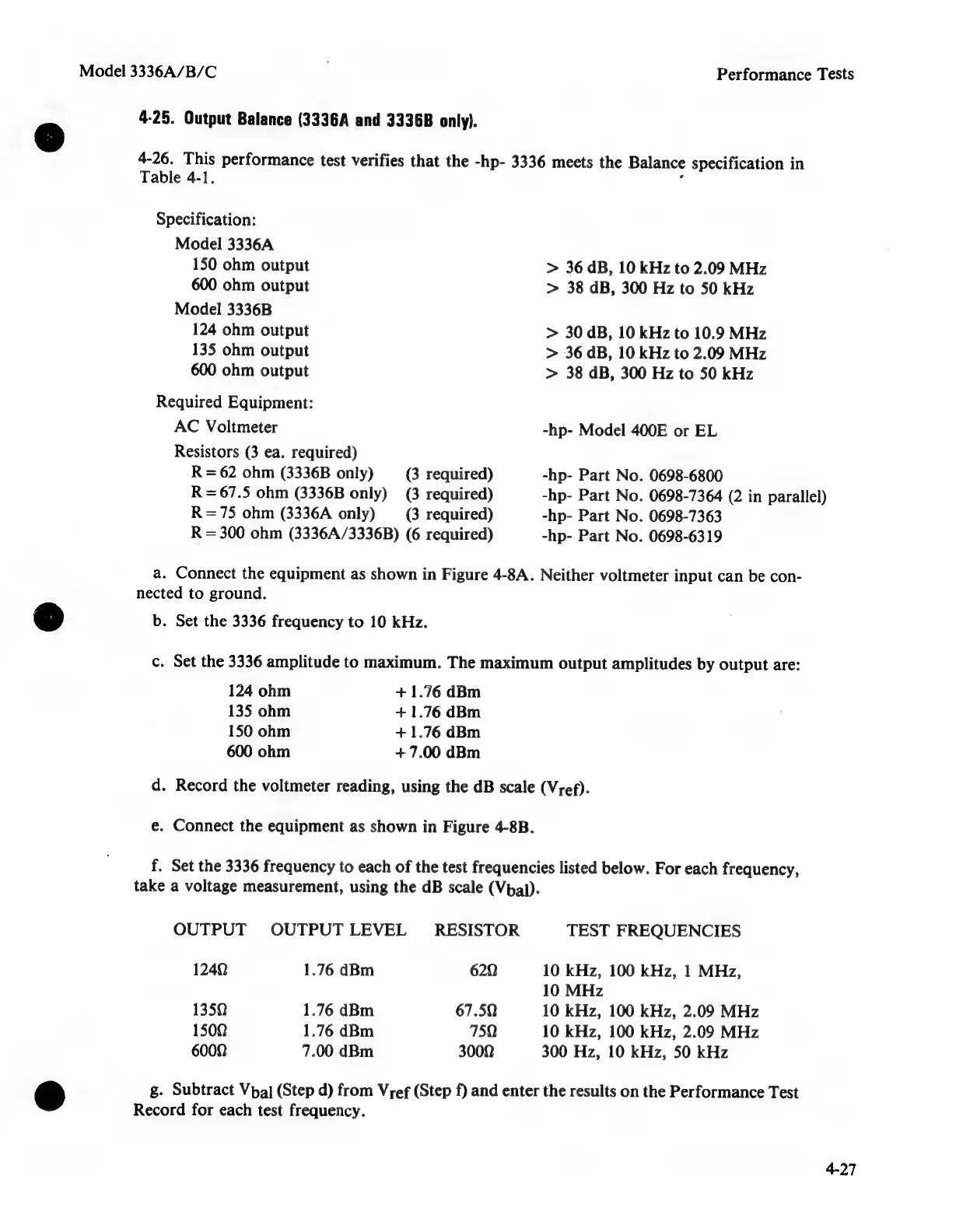

Model 3336A/B/C
4-25.
Output
Balance
(3336A
and
3336B
only).
Performance Tests
4-26.
This
performance
test
verifies
that
the
-hp-
3336
meets
the
Balance
specification
in
Table 4-1.
Specification:
Model 3336A
150 ohm output
600 ohm output
Model 3336B
124 ohm output
135 ohm output
600 ohm output
Required Equipment:
AC Voltmeter
Resistors (3 ea. required)
R= 62 ohm (3336B only) (3 required)
R=67.5 ohm (3336B only) (3 required)
R=75 ohm (3336A only) (3 required)
R=300 ohm (3336A/3336B) (6 required)
.
> 36 dB, 10 kHz to 2.09 MHz
> 38 dB, 300 Hz to 50 kHz
> 30 dB, 10 kHz to 10.9 MHz
> 36 dB, 10 kHz to 2.09 MHz
> 38 dB, 300 Hz to 50 kHz
-hp- Model 400E or EL
-hp- Part No. 0698-6800
-hp- Part No. 0698-7364 (2 in parallel)
-hp- Part No. 0698-7363
-hp- Part No. 0698-6319
a.
Connect
the
equipment
as
shown
in
Figure
4-8A.
Neither
voltmeter
input
can
be
con-
nected to ground.
@ b. Set the 3336 frequency to 10 kHz.
c.
Set
the
3336
amplitude
to
maximum.
The
maximum
output
amplitudes
by
output
are:
124 ohm
135 ohm
150 ohm
600 ohm
+ 1.76 dBm
+1.76 dBm
+1.76 dBm
+ 7.00 dBm
d. Record the voltmeter reading, using the dB scale (Vref).
e. Connect the equipment as shown in Figure 4-8B.
f.
Set
the
3336
frequency
to
each
of
the
test
frequencies
listed
below.
For
each
frequency,
take
a
voltage
measurement,
using
the
dB
scale
(Vpal).
OUTPUT OUTPUT LEVEL RESISTOR
TEST FREQUENCIES
1240 1.76 dBm 620 10 kHz, 100 kHz, 1 MHz,
10 MHz
1350 1.76 dBm 67.50 10 kHz, 100 kHz, 2.09 MHz
1500 1.76 dBm 750 10 kHz, 100 kHz, 2.09 MHz
6002 7.00 dBm 3000 300 Hz, 10 kHz, 50 kHz
&
g.
Subtract
Vpa]
(Step
d)
from
Vref
(Step
f)
and
enter
the
results
on
the
Performance
Test
Record for each test frequency.
4-27
