Performance Tests Model 3336A/B/C
A AC VOLTMETER
-~hp- 3336
[Se ooo] 40 CXXED))
i] t 4
ee ee eee eee ee I
Jag} a pees fee Fe fe |
Joos
4 J) af ooo
B
- hp- 3336
ee ee eee eee
Jot} as ee ee ee |
Juss
4d 3) a} 5514

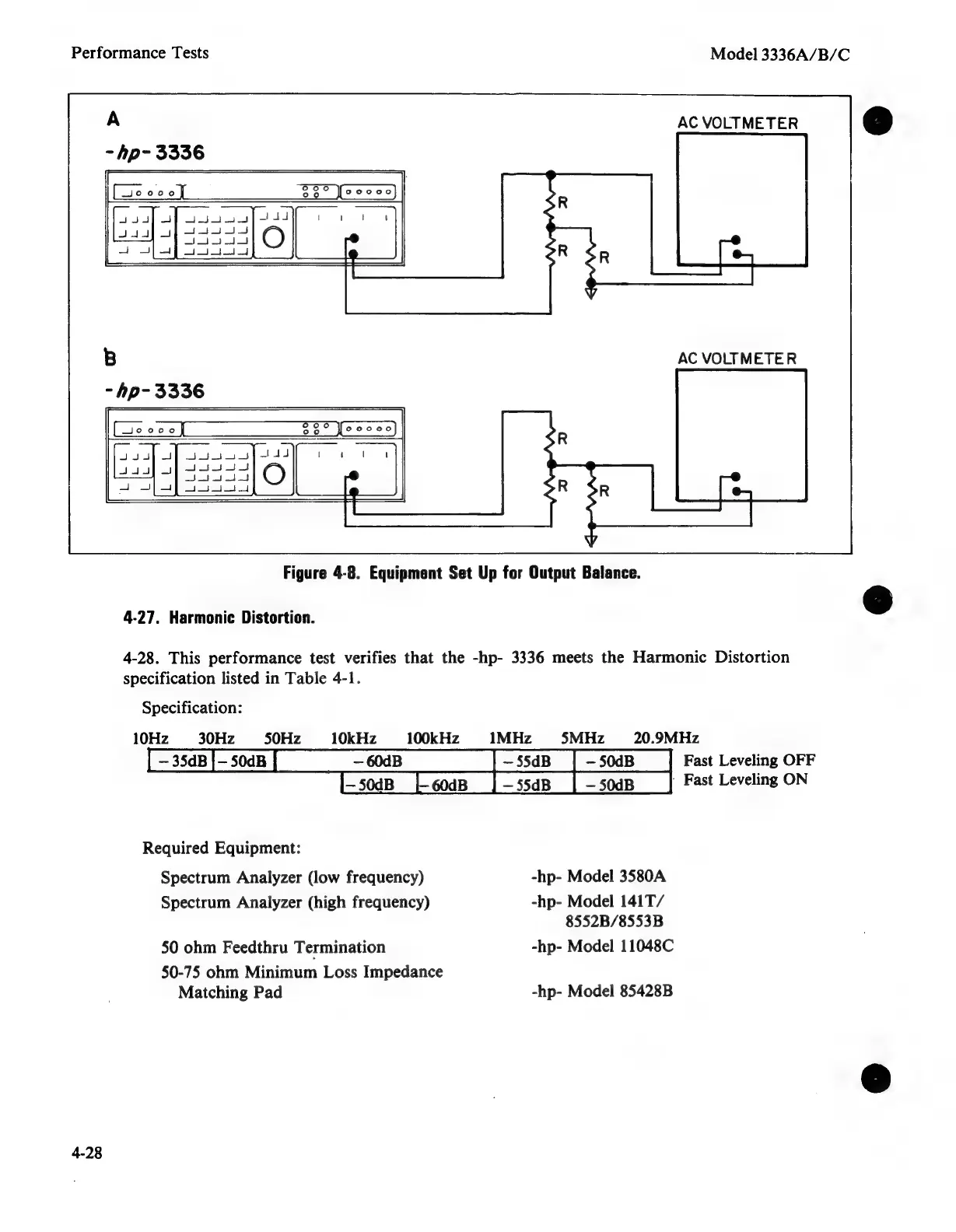

Figure 4-8. Equipment Set Up for Output Balance.
4-27. Harmonic Distortion.
4-28. This performance test verifies that the -hp- 3336 meets the Harmonic Distortion
specification listed in Table 4-1.
Specification:
10Hz 30Hz 50Hz 10kHz 100kHz 1MHz ‘SMHz~— 20.9MHz
[-35dB|-sodB] ss 60dB | ~SSdB_ | -S0dB_ | Fast Leveling OFF
-50dB_[-60dB__|~—ssdB_|
~sodB___}
Fast
Leveling
ON
Required Equipment:
Spectrum Analyzer (low frequency) -hp- Model 3580A
Spectrum Analyzer (high frequency) -hp- Model 141T/
8552B/8553B
50 ohm Feedthru Termination -hp- Model 11048C
50-75 ohm Minimum Loss Impedance
Matching Pad -hp- Model 85428B
4-28
