HP 3336A - Page 92

Model 3336A/B/C
Electronic Counter
Digitai Voltmeter
Wave Analyzer
Synthesizer
Unbalanced
Directional
Couplers
*Unbalanced Directional Couplers are also part of Transmission/Reflection kits:
-hp- Model 11652A
-hp- Model 11652A with Option 008
50 2 Transmission/Reflection Kit
75 Q Transmission/Reflection Kit
Performance Tests

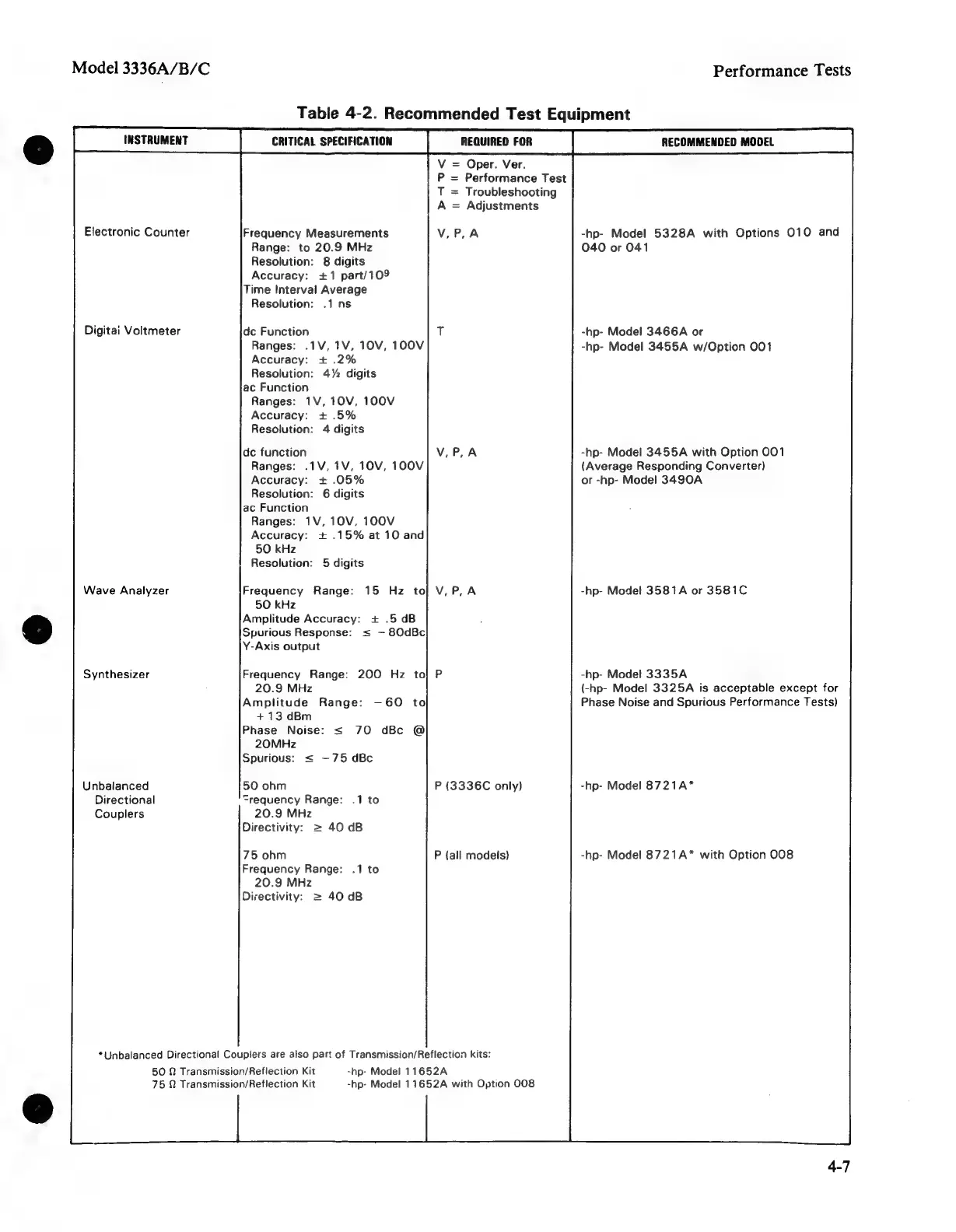

Table 4-2. Recommended Test Equipment
INSTRUMENT CRITICAL SPECIFICATION REQUIRED FOR RECOMMENDED MODEL
Frequency Measurements
Range: to 20.9 MHz
Resolution: 8 digits
Accuracy: +1 part/109
Time Interval Average
Resolution: .1 ns
dc Function
Ranges: .1V, 1V, 10V, 100V
Accuracy: + .2%
Resolution: 4% digits
ac Function
Ranges: 1V, 10V, 100V
Accuracy: + .5%
Resolution: 4 digits
dc function
Ranges: .1V, 1V, 10V, 100V
Accuracy: + .05%
Resolution: 6 digits
ac Function
Ranges: 1V, 10V, 100V
Accuracy: + .15% at 10 and
50 kHz
Resolution: 5 digits
Frequency Range: 15 Hz to
50 kHz
Amplitude Accuracy: + .5 dB
Spurious Response: < — 80dBc
Y-Axis output
Frequency Range: 200 Hz to
20.9 MHz
Amplitude Range: —60 to
+13 dBm
Phase Noise: < 70 dBc @
20MHz
Spurious: < —75 dBc
50 ohm
Srequency Range: .1 to
20.9 MHz
Directivity: = 40 dB
75 ohm
Frequency Range: .1 to
20.9 MHz
Directivity: = 40 dB
V = Oper. Ver.
P = Performance Test
T = Troubleshooting
A = Adjustments
V,P,A -hp- Model 5328A with Options 010 and
040 or 041
T -hp- Model 3466A or
-hp- Model 3455A w/Option 001
V,P,A -hp- Model 3455A with Option 001
(Average Responding Converter)
or -hp- Model 3490A
V,P,A -hp- Model 3581A or 3581C
P -hp- Model 3335A
{-hp- Model 3325A is acceptable except for
Phase Noise and Spurious Performance Tests)
P (3336C only) -hp- Model 8721A*
P (all models) -hp- Model 8721A* with Option 008
