Performance Tests Model 3336A/B/C

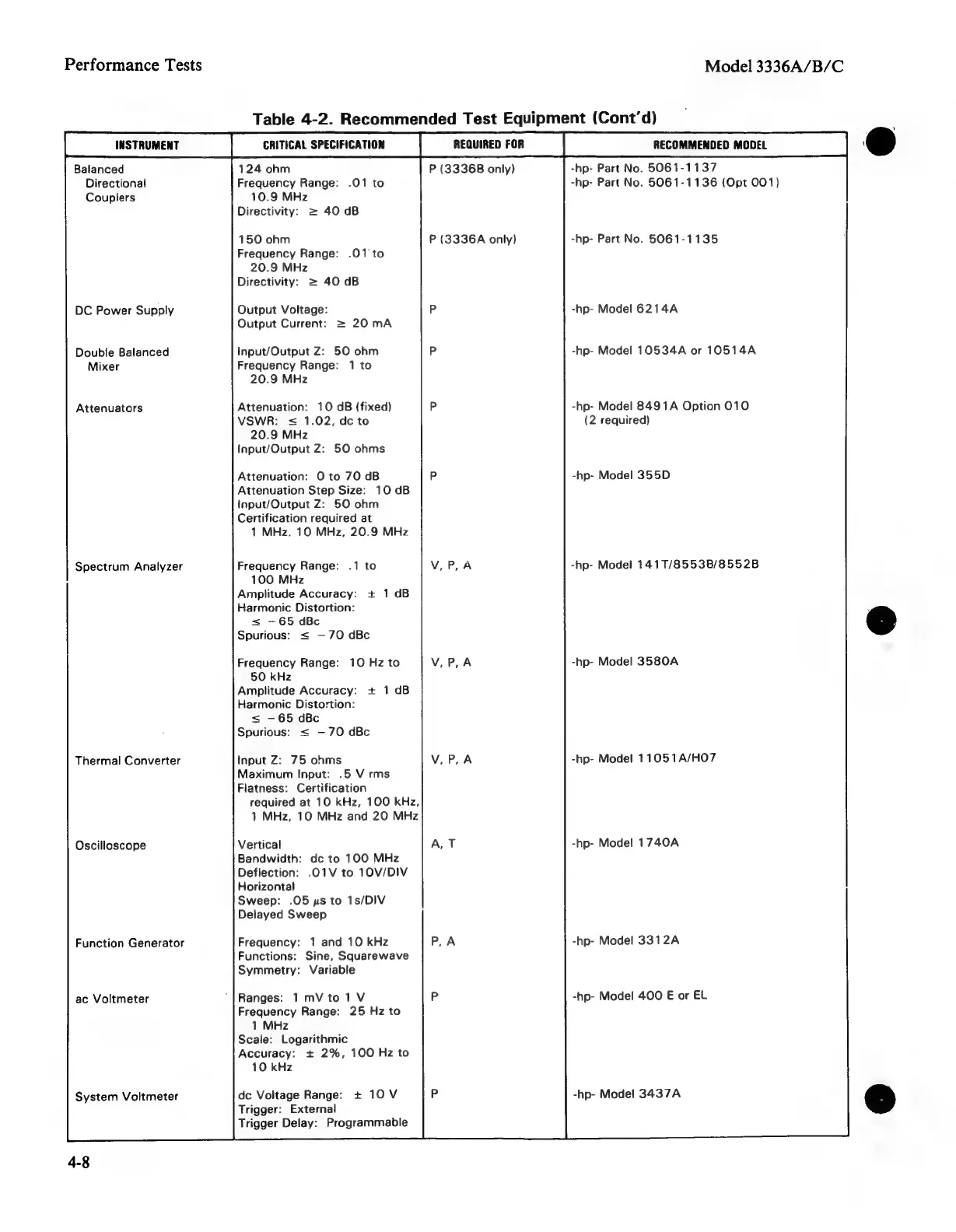

Table 4-2. Recommended Test Equipment (Cont'd)
INSTRUMENT CRITICAL SPECIFICATION REQUIRED FOR RECOMMENDED MODEL @
Balanced 124 ohm P (3336B only) -hp- Part No. 5061-1137
Directional Frequency Range: .01 to -hp- Part No. 5061-1136 (Opt 001)
Couplers 10.9 MHz
Directivity: = 40 dB
150 ohm
Frequency Range: .01 to
20.9 MHz
Directivity: = 40 dB
P (3336A only) -hp- Part No. 5061-1135
Output Voltage: -hp- Model 6214A
Output Current: = 20mA
DC Power Supply
Double Balanced Input/Output Z: 50 ohm -hp- Model 10534A or 10514A
Mixer Frequency Range: 1 to
20.9 MHz
Attenuators Attenuation: 10 dB (fixed) -hp- Model 8491A Option 010
VSWR: < 1.02, dc to
20.9 MHz
Input/Output Z: 50 ohms
(2 required)
Attenuation: O to 70 dB -hp- Model 355D
Attenuation Step Size: 10 dB
Input/Output Z: 50 ohm
Certification required at
1 MHz. 10 MHz, 20.9 MHz
Frequency Range: .1 to -hp- Model 1411T/8553B/8552B
100 MHz
Amplitude Accuracy: + 1 dB
Harmonic Distortion:
< -—65 dBc
Spurious: <= —70 dBc
Spectrum Analyzer
10 Hz to -hp- Model 3580A
Frequency Range:
50 kHz
Amplitude Accuracy: + 1 dB
Harmonic Distortion:
= -65 dBc
Spurious: < - 70 dBc
Input Z: 75 ohms -hp- Model 11051A/HO7
Maximum Input: .5 V rms
Flatness: Certification
required at 10 kHz, 100 kHz,
1 MHz, 10 MHz and 20 MHz
Thermal Converter
Vertical -hp- Model 1740A
Bandwidth: dc to 100 MHz
Deflection: .01V to 10V/DIV
Horizontal
Sweep: .05 us to 1s/DIV
Delayed Sweep
Oscilloscope
Frequency: 1 and 10 kHz -hp- Model 3312A
Functions: Sine, Squarewave
Symmetry: Variable
Function Generator
Ranges: 1 mVto1V -hp- Model 400 E or EL
Frequency Range: 25 Hz to
1 MHz
Scale: Logarithmic
Accuracy: + 2%, 100 Hz to
10 kHz
ac Voltmeter
dc Voltage Range: + 10 V
Trigger: External
Trigger Delay: Programmable
System Voltmeter
-hp-
Model
3437A
©
