Model 3336A/B/C Performance Tests

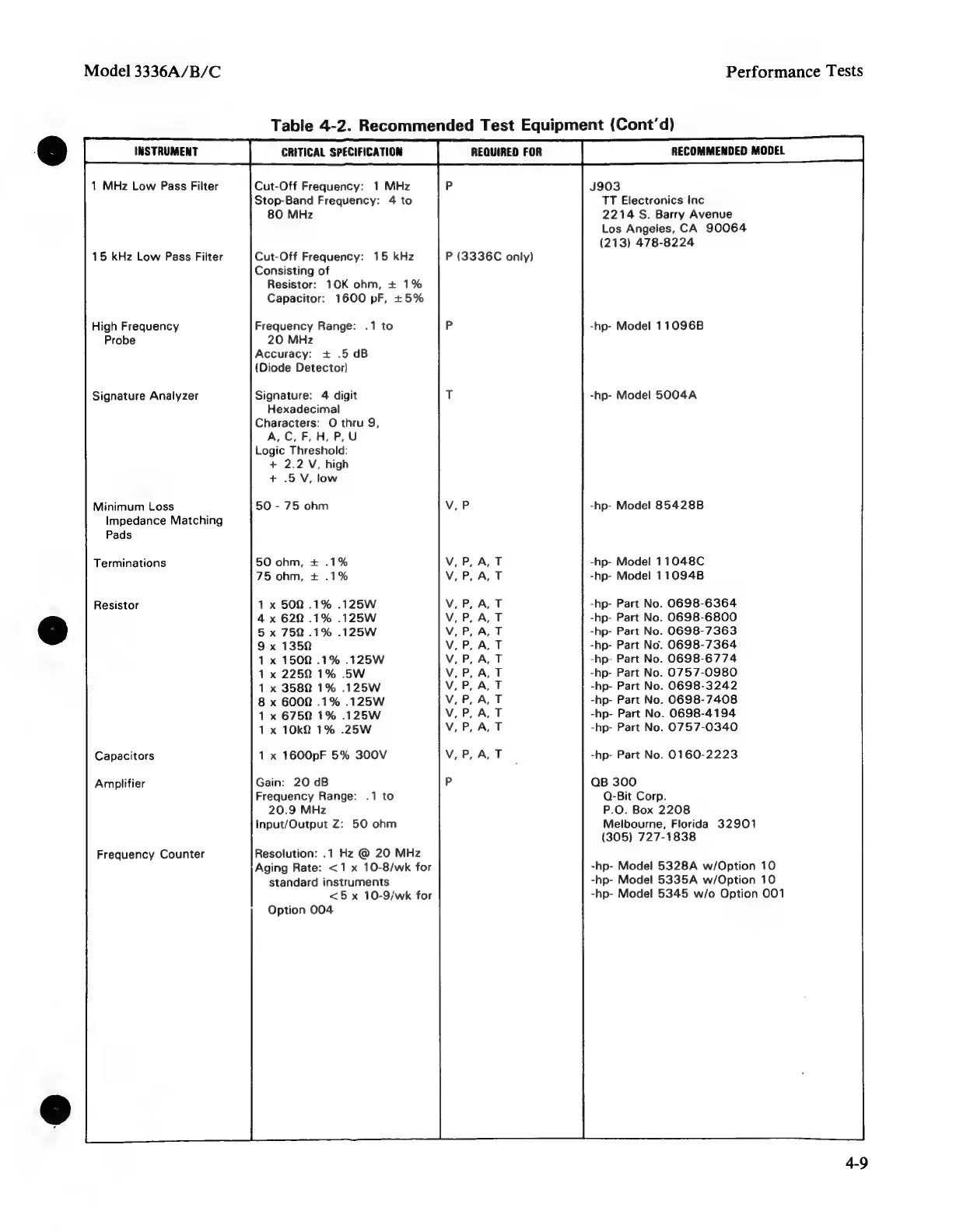

Table 4-2. Recommended Test Equipment (Cont'd)
INSTRUMENT CRITICAL SPECIFICATION REQUIRED FOR RECOMMENDED MODEL
1 MHz Low Pass Filter J903
TT Electronics inc
2214 S. Barry Avenue
Los Angeles, CA 90064
(213) 478-8224
Cut-Off Frequency: 1 MHz
Stop-Band Frequency: 4 to
80 MHz
15 kHz Low Pass Filter Cut-Off Frequency: 15 kHz
Consisting of
Resistor: 10K ohm, + 1%
Capacitor: 1600 pF, +5%
P (3336C only)
High Frequency -1to
Probe
Frequency Range:
20 MHz
Accuracy: + .5 dB
(Diode Detector)
-hp- Model 110968
Signature: 4 digit
Hexadecimal
Characters: O thru 9,
A, C, F, H, P, U
Logic Threshold:
+ 2.2 V, high
+ .5 V, low
Signature Analyzer -hp- Model 5004A
Minimum Loss 50 - 75 ohm -hp- Model 85428B
Impedance Matching
Pads
Terminations 50 ohm, + .1% V,P,A,T -hp- Model 11048C
75 ohm, + .1% V,P,A,T -hp- Model 11094B
Resistor 1x 500 .1% .125W V,P, A, T -hp- Part No. 0698-6364
4x 622 .1% .125W V,P,A, T -hp- Part No. 0698-6800
5 x 7502 .1% .125W V,P,A,T -hp- Part No. 0698-7363
9x 1350 V,P,A, T -hp- Part No. 0698-7364
1x 1500 .1% .125W V,P,A, T -hp- Part No. 0698-6774
1x 2250 1% .5W V,P,A, T -hp- Part No. 0757-0980
1x 3580 1% .125W V,P,A,T -hp- Part No. 0698-3242
8 x 6000 .1% .125W V,P,A,T -hp- Part No. 0698-7408
1 x 6750 1% .125W V,P,A,T -hp- Part No. 0698-4194
1x 10kO 1% .25W v,P, A, T -hp- Part No. 0757-0340
Capacitors 1 x 1600pF 5% 300V V,P,A, T -hp- Part No. 0160-2223
7
Gain: 20 dB
Frequency Range: .1 to
20.9 MHz
Input/Output Z: 50 ohm
QB 300
Q-Bit Corp.
P.O. Box 2208
Melbourne, Florida 32901
(305) 727-1838
Amplifier
Resolution: .1 Hz @ 20 MHz
Aging Rate: <1 x 10-8/wk for
standard instruments
<5 x 10-9/wk for
Option 004
Frequency Counter
-hp- Model 5328A w/Option 10
-hp- Model 5335A w/Option 10
-hp- Model 5345 w/o Option 001
