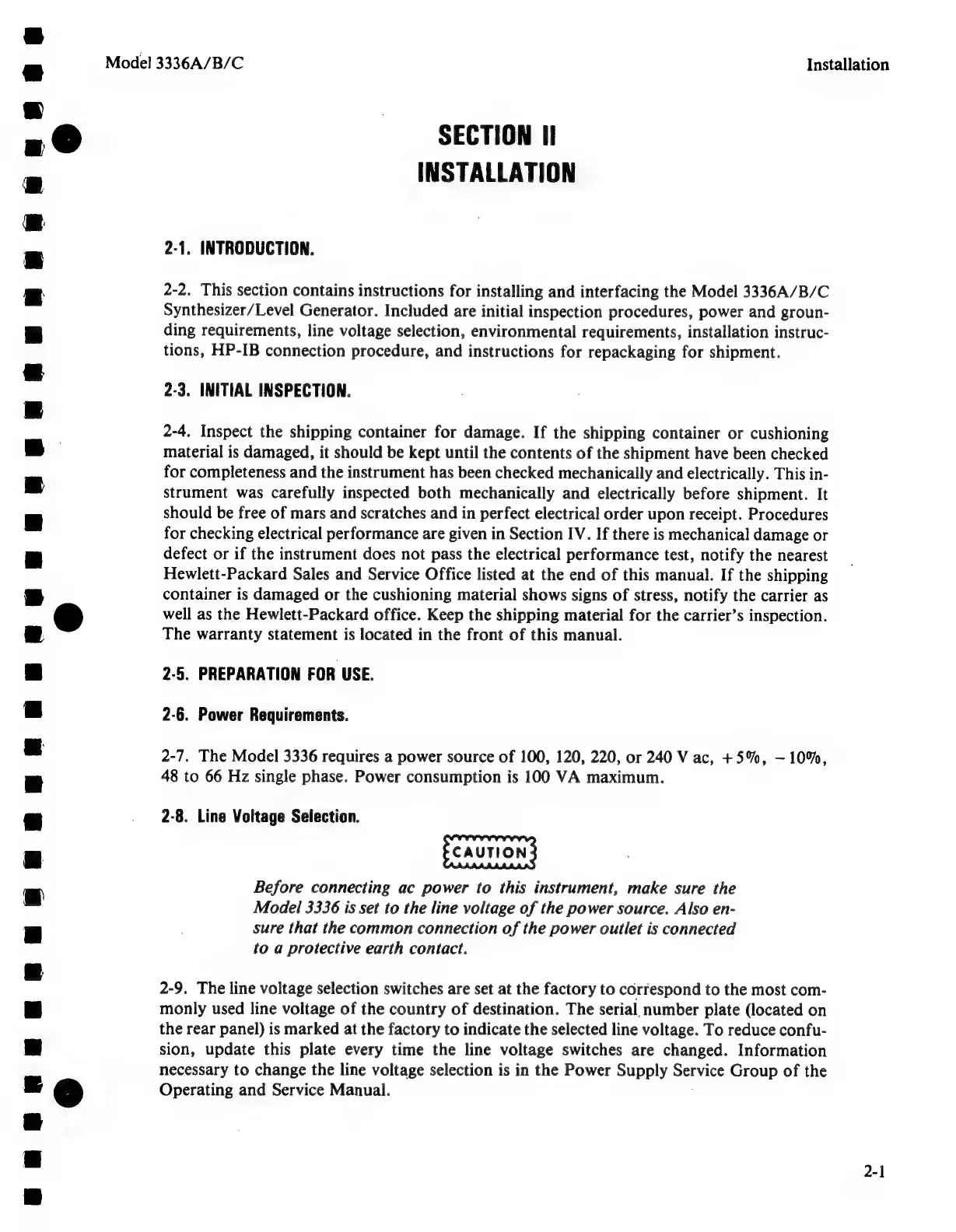

Model
3336A/B/C
Installation
SECTION
II
INSTALLATION
|_|
B
a
&
2-1.
INTRODUCTION.
2-2.
This
section
contains
instructions
for
installing
and
interfacing
the
Model
3336A/B/C
Synthesizer/Level
Generator.
Included
are
initial
inspection
procedures,
power
and
groun-
ding
requirements,
line
voltage
selection,
environmental
requirements,
installation
instruc-
tions,
HP-IB
connection
procedure,
and
instructions
for
repackaging
for
shipment.
2-3.
INITIAL
INSPECTION.
2-4.
Inspect
the
shipping
container
for
damage.
If
the
shipping
container
or
cushioning
material
is
damaged,
it
should
be
kept
until
the
contents
of
the
shipment
have
been
checked
for
completeness
and
the
instrument
has
been
checked
mechanically
and
electrically.
This
in-
strument
was
carefully
inspected
both
mechanically
and
electrically
before
shipment.
It
should
be
free
of
mars
and
scratches
and
in
perfect
electrical
order
upon
receipt.
Procedures
for
checking
electrical
performance
are
given
in
Section
IV.
If
there
is
mechanical
damage
or
defect
or
if
the
instrument
does
not
pass
the
electrical
performance
test,
notify
the
nearest
Hewlett-Packard
Sales
and
Service
Office
listed
at
the
end
of
this
manual.
If
the
shipping
container
is
damaged
or
the
cushioning
material
shows
signs
of
stress,
notify
the
carrier
as
&
well
as
the
Hewlett-Packard
office.
Keep
the
shipping
material
for
the
carrier’s
inspection.
The
warranty
statement
is
located
in
the
front
of
this
manual.
2-5.
PREPARATION
FOR
USE.
2-6.
Power
Requirements.
2-7.
The
Model
3336
requires
a
power
source
of
100,
120,
220,
or
240
V
ac,
+5%,
—10%,
48
to
66
Hz
single
phase.
Power
consumption
is
100
VA
maximum.
Before
connecting
ac
power
to
this
instrument,
make
sure
the
Model
3336
is
set
to
the
line
voltage
of
the
power
source.
Also
en-
sure
that
the
common
connection
of
the
power
outlet
is
connected
to
a
protective
earth
contact.
2-8.
Line
Voltage
Selection.
2-9.
The
line
voltage
selection
switches
are
set
at
the
factory
to
correspond
to
the
most
com-
monly
used
line
voltage
of
the
country
of
destination.
The
serial
number
plate
(located
on
the
rear
panel)
is
marked
at
the
factory
to
indicate
the
selected
line
voltage.
To
reduce
confu-
sion,
update
this
plate
every
time
the
line
voltage
switches
are
changed.
Information
necessary
to
change
the
line
voltage
selection
is
in
the
Power
Supply
PERNICE
Group
of
the
&
Operating
and
Service
Manual.
