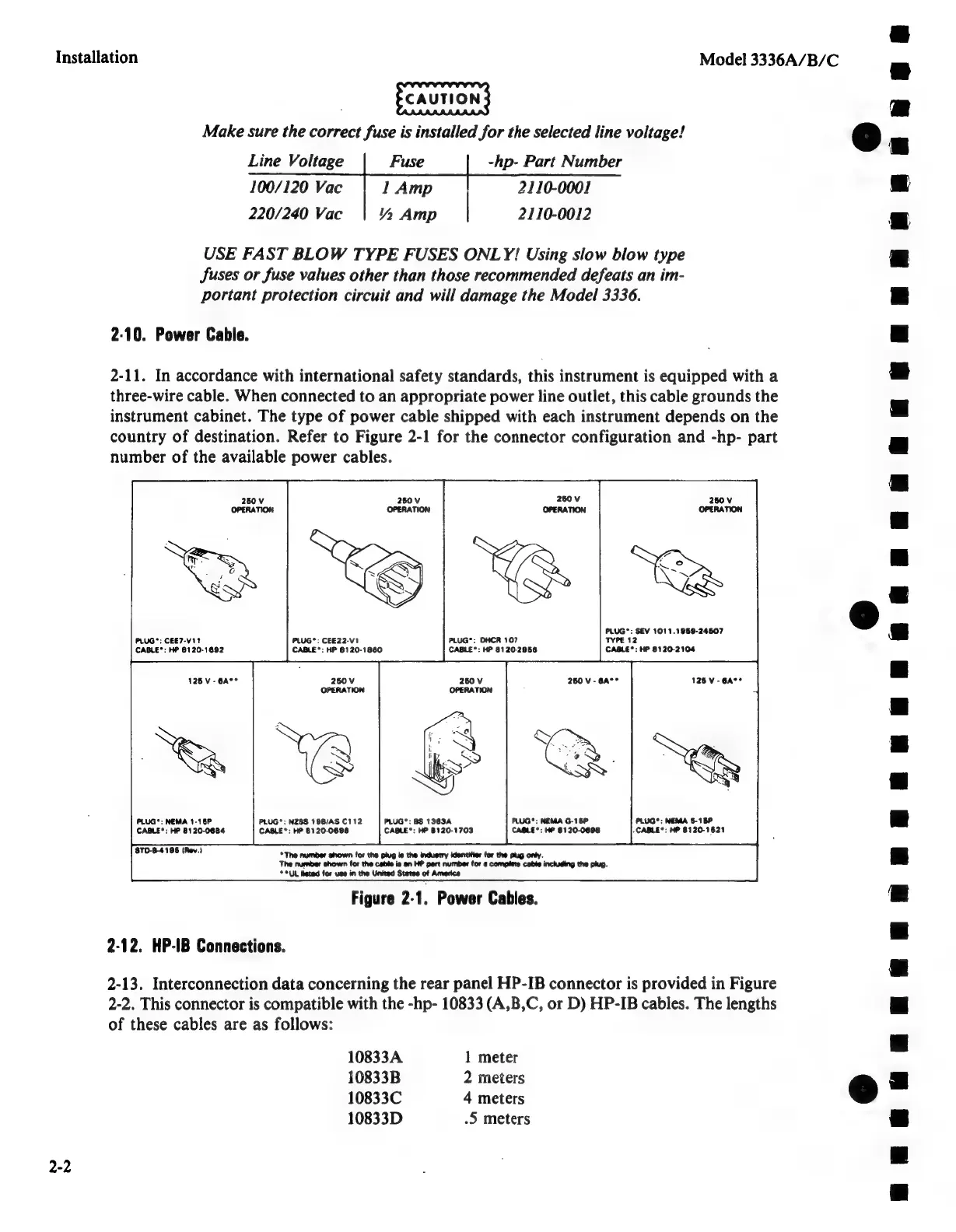

Installation
Model
3336A/B/C
Make sure the correct fuse is installed for the selected line voltage!
Line Voltage
100/120 Vac
220/240 Vac
-hp- Part Number
1 Amp 2110-0001
Y% Amp | 2110-0012
USE FAST BLOW TYPE FUSES ONLY! Using slow blow type
Juses or fuse values other than those recommended defeats an im-
portant protection circuit and will damage the Model 3336.
2-10. Power Cable.
2-11. In accordance with international safety standards, this instrument is equipped with a
three-wire cable. When connected to an appropriate power line outlet, this cable grounds the
instrument cabinet. The type of power cable shipped with each instrument depends on the
country of destination. Refer to Figure 2-1 for the connector configuration and -hp- part
number of the available power cables.
280 V
OPERATION
YS
|
SQ
PLUG*: SEV 1011.1959-24507
PLUG*: CEE?-V1t PLUG*: CEE22-V1 TYPE
CABLE*: HP 8120-1692 CABLE*: HP 6120-1860 CABLE‘: HP 8120-2856 CABLE*: HP 8120-2104
125 V-6a"° 128 V-6Aa°°
“&
PLUG*: NEMA 1-16P PLUG*: NZSS 19B/AS C112 PLUG*: BS 1363A PLUG*: NEMA 5-15
CABLE*: HP 8120-0684 CABLE*: HP 8120-0698 CABLE*: HP 8120-1703 CABLE*: HP 8120-0698 . CABLE*: HP 8120-1621
* The number shown for the plug ie the industry identifier for the plug only.
The number shown for the cable is en HP pert number for e complete cable including the plug.
* UL Hetad for use in the United States of America
Figure 2:1. Power Cables.
2:12. HP-IB Connections.
2-13. Interconnection data concerning the rear panel HP-IB connector is provided in Figure
2-2. This connector is compatible with the -hp- 10833 (A,B,C, or D) HP-IB cables. The lengths
of these cables are as follows:
10833A 1 meter
10833B 2 meters
10833C 4 meters
10833D .5 meters
