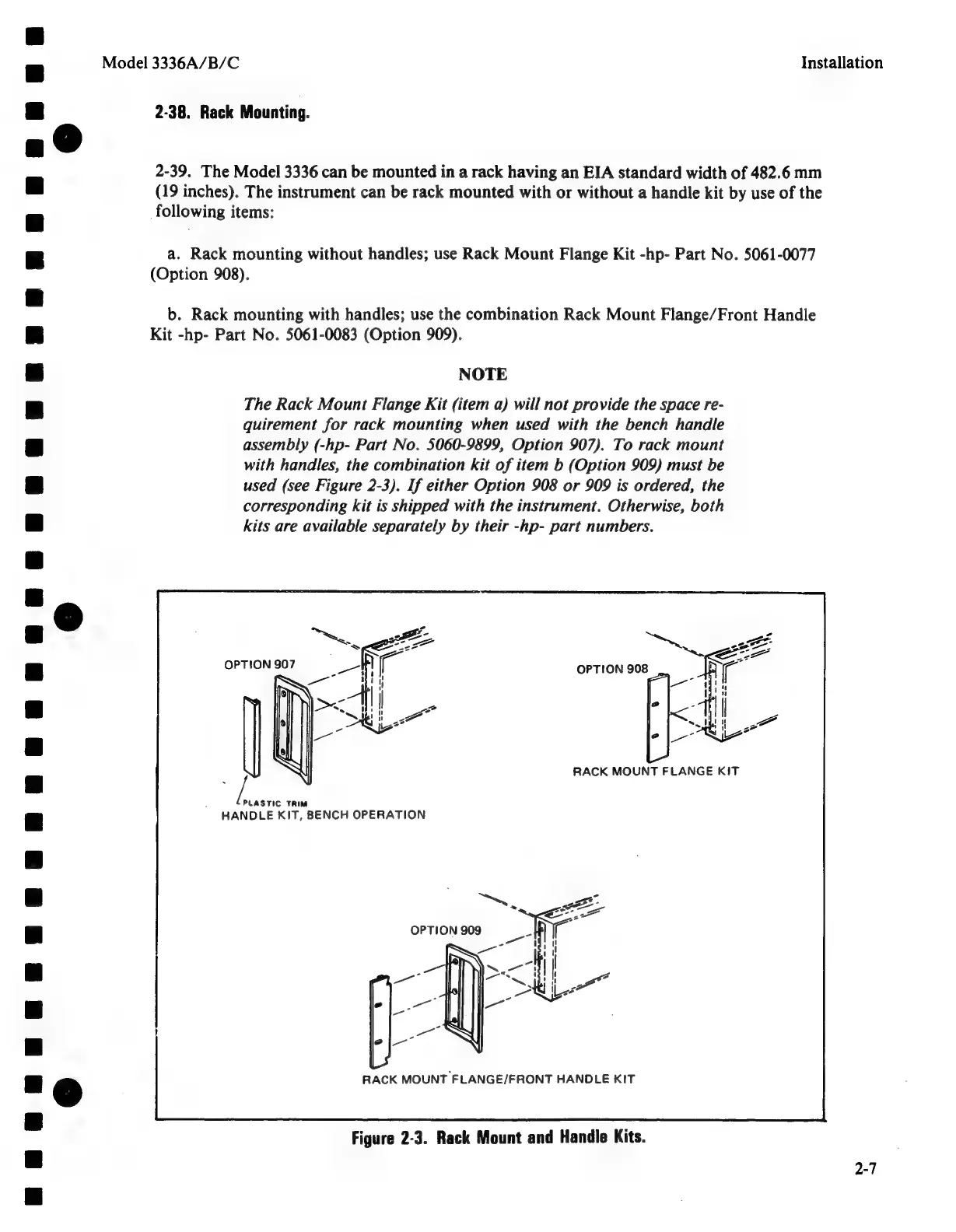

Model 3336A/B/C Installation
2-38. Rack Mounting.
2-39. The Model 3336 can be mounted in a rack having an EIA standard width of 482.6 mm
(19 inches). The instrument can be rack mounted with or without a handle kit by use of the
following items:
a. Rack mounting without handles; use Rack Mount Flange Kit -hp- Part No. 5061-0077
(Option 908).
b. Rack mounting with handles; use the combination Rack Mount Flange/Front Handle
Kit -hp- Part No. 5061-0083 (Option 909).
NOTE
The Rack Mount Flange Kit (item a) will not provide the space re-
quirement for rack mounting when used with the bench handle
assembly (-hp- Part No. 5060-9899, Option 907). To rack mount
with handles, the combination kit of item b (Option 909) must be
used (see Figure 2-3). If either Option 908 or 909 is ordered, the
corresponding kit is shipped with the instrument. Otherwise, both
kits are available separately by their -hp- part numbers.
OPTION 908
Da
RACK MOUNT FLANGE KIT
foe. TRIM
HANDLE KIT, BENCH OPERATION
& RACK MOUNT FLANGE/FRONT HANDLE KIT
Figure 2-3. Rack Mount and Handle Kits.
