98 Printer maintenance ENWW

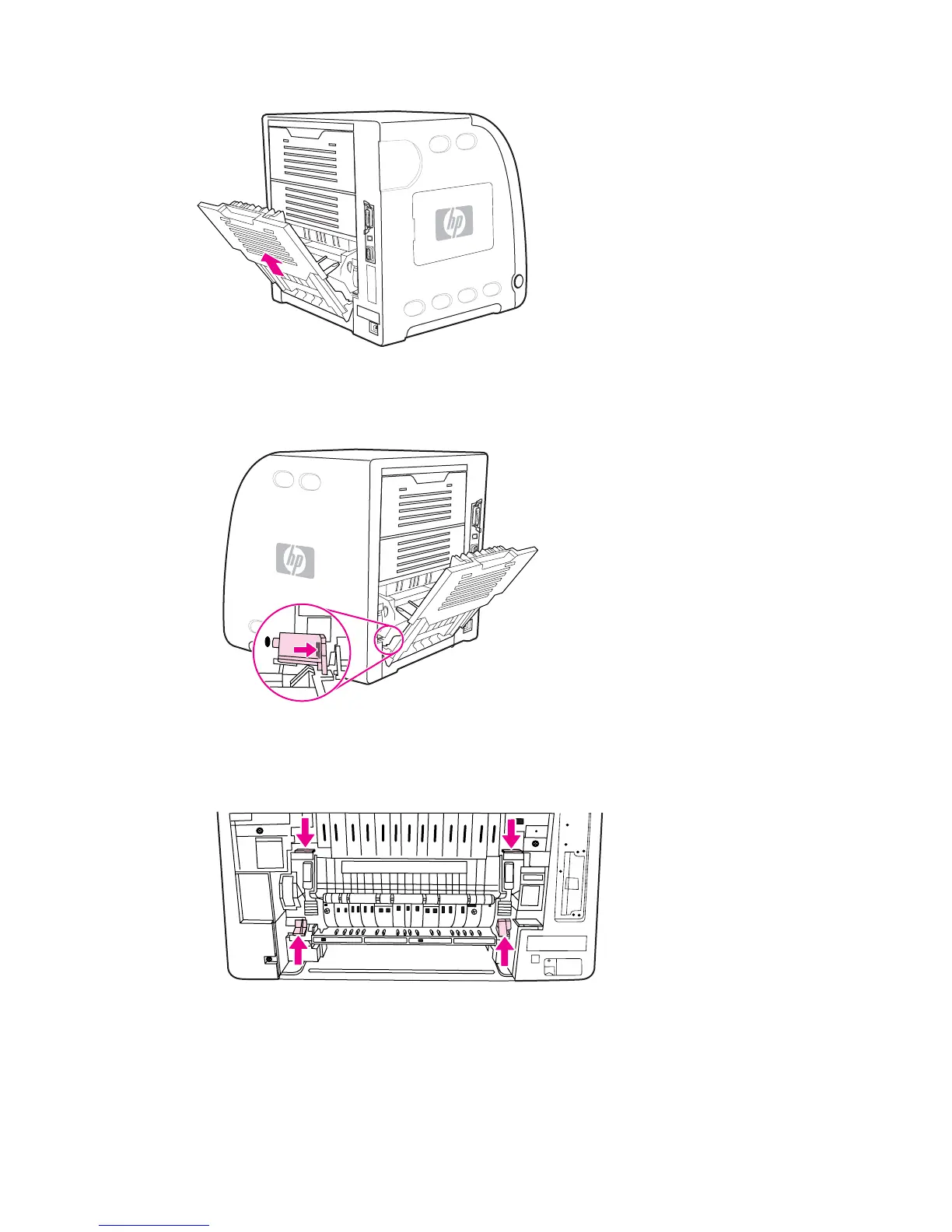

3 Slide out the lower rear door (rear output bin) tray extender.
4 Lift and pull the lower rear door (rear output bin) while using your finger to press the tab with
ridges on the left side of the door. Remove the lower rear door (rear output bin).
5 Place your thumbs on the blue ridges (near warning label) and, using fingers, pull up on the
blue latches.
6 Pull the fuser out of the printer.
