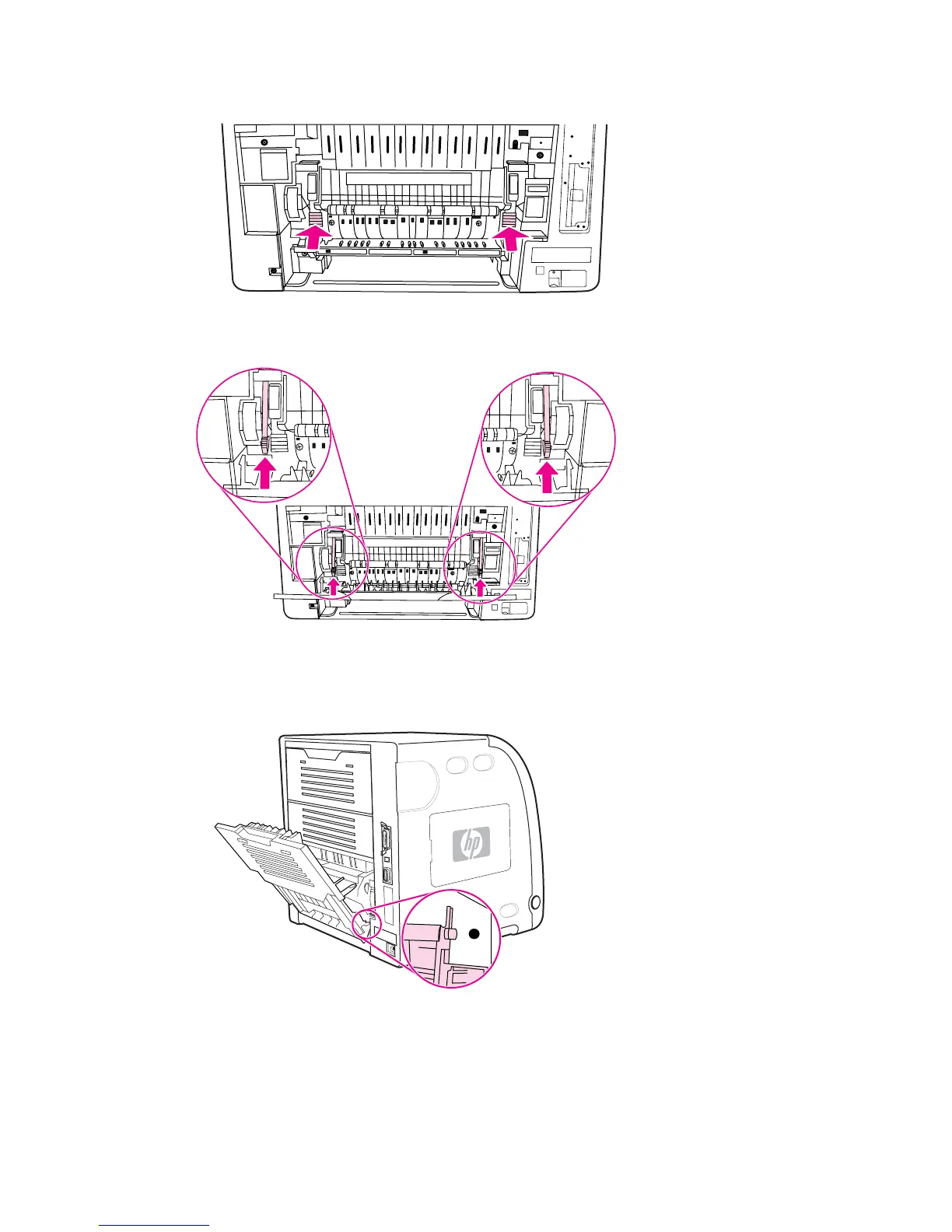

9 Press the black ridges on the front of the fuser until the fuser clicks into place.
10 Rotate the green levers to the up position.
11 To reattach the lower rear door (rear output bin), hold the door at a 45° angle, and fit the peg
into the round hole on the right side.
