ENWW Pickup/feed system 175

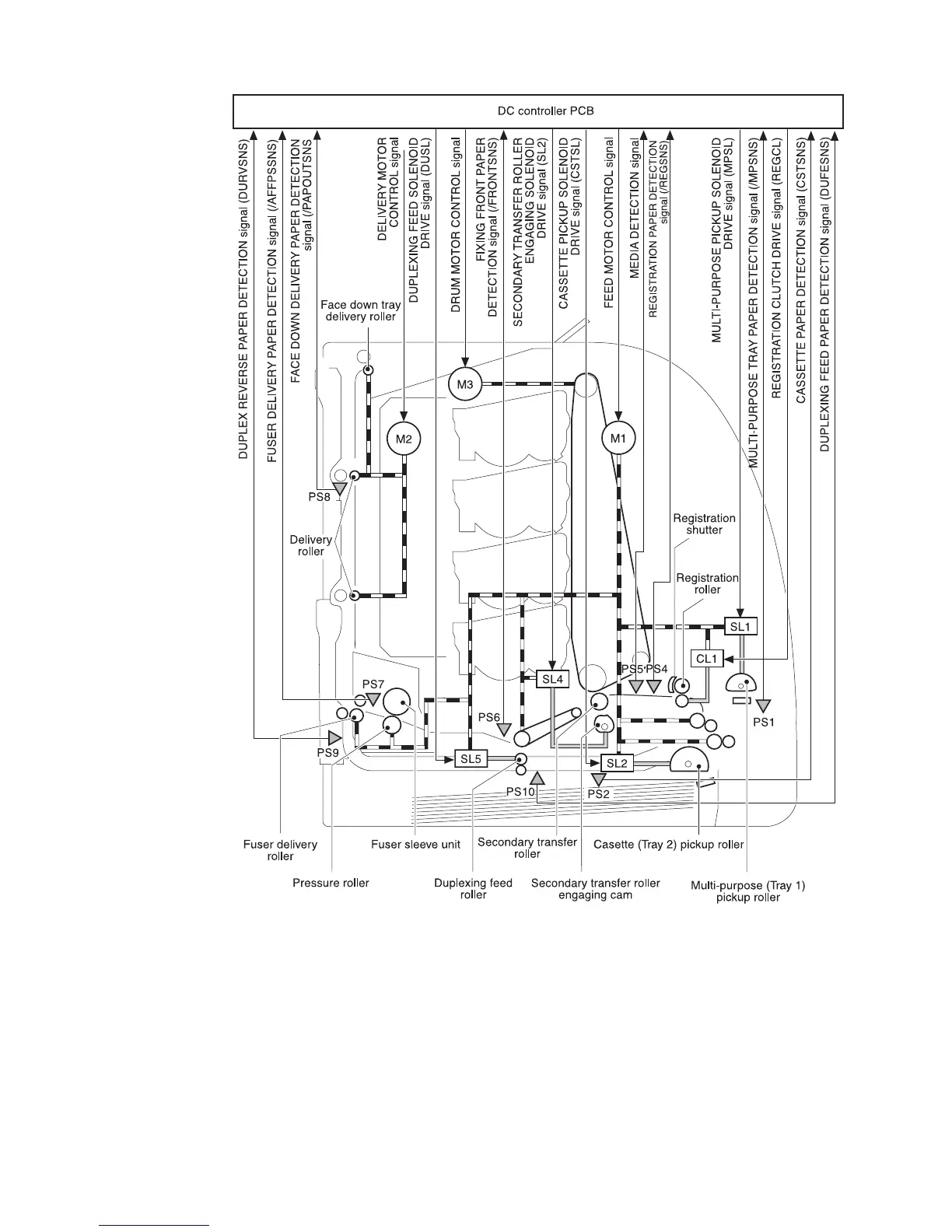

Figure 5-56 Pickup/feed system
Figure notes:
• PS1: Tray 1 (multipurpose tray) paper sensor
• PS2: Tray 2 (cassette) paper sensor
• PS4: Registration paper sensor
• PS5: Media sensor
• PS6: Fuser front paper sensor
