186 Theory of operation ENWW

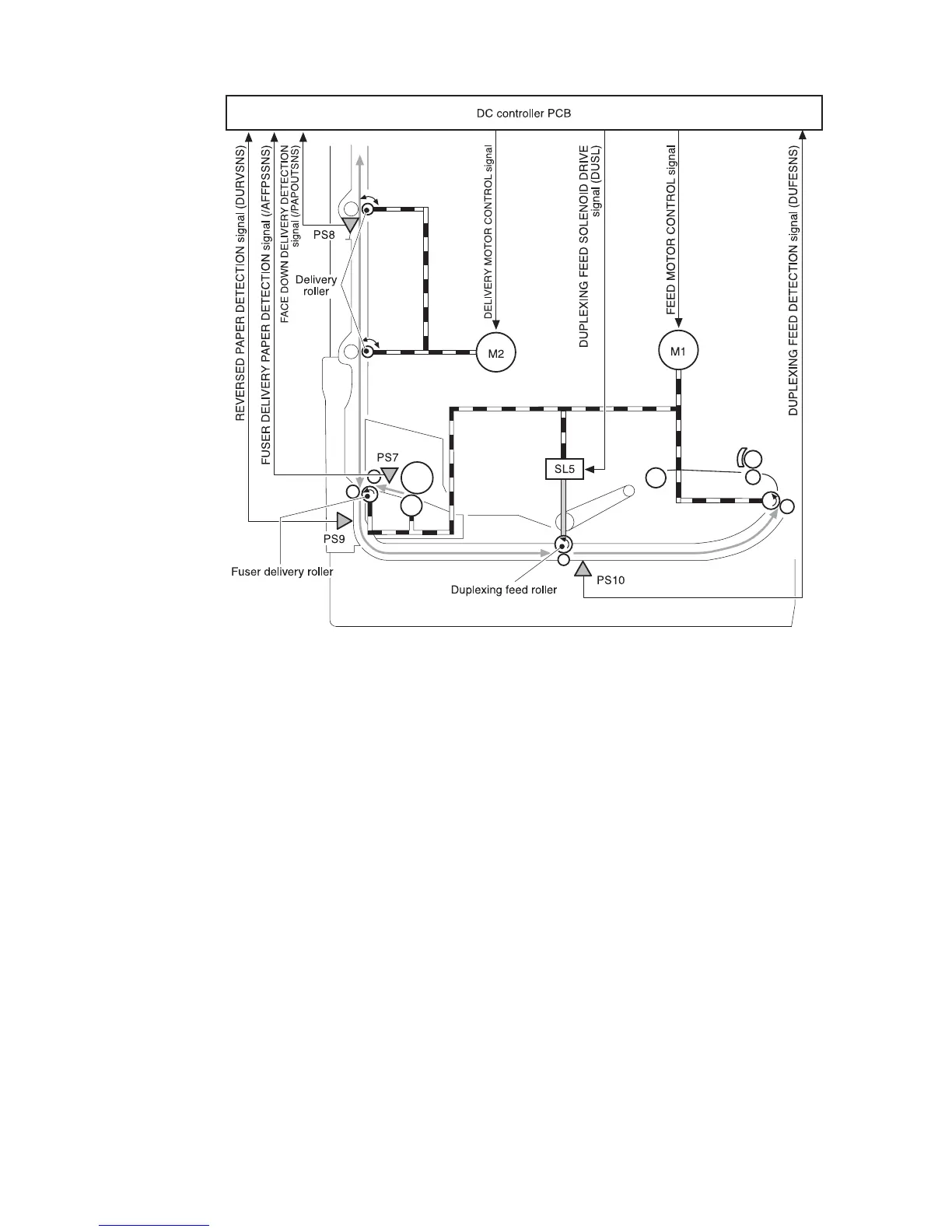

Figure 5-62 Duplexing unit
Figure notes:
• PS7: fuser delivery paper sensor
• PS8: Face-down delivery sensor
• PS9: Reversed paper sensor
• PS10: Duplexing feed paper sensor
• M1: Feed motor
•M2: Delivery motor
• SL5: Duplexing feed solenoid
