198 Removal and replacement ENWW

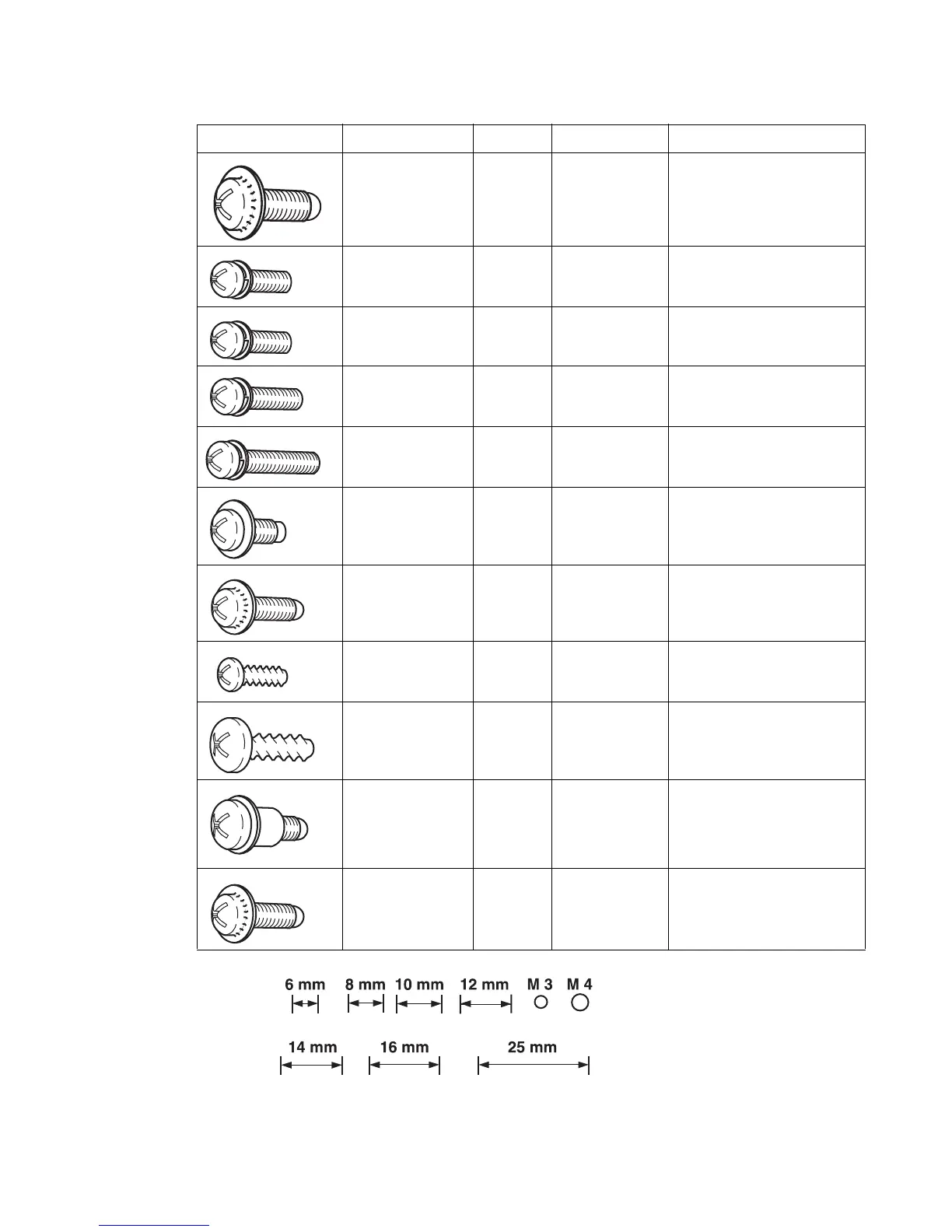

Table 6-1 Common fasteners
Illustration Description Size Part number Use
SCREW, TP M4X6 XA9-1450-000CN Secures metal frame panels to
metal frame panels.
SCREW, W/
WASHER
M3X6 XA9-1477-000CN Secures the drawer, cross
member, to the frame (see
figure 8-8).
SCREW, W/
WASHER, RS
M3X6 XA9-1461-000CN Secures motor (M2) to the
frame.
SCREW W/
WASHER
M3X8 XA9-1420-000CN Secures metal to metal
(ground wire, feed guide rear
two screws)
SCREW, W/
WASHER
M3X12 XA9-1452-000CN Secures laser/scanner
assembly to the metal frame.
SCREW, RS M3X6 XA9-1499-000CN Secures metal to metal.
SCREW, RS M3X8 XA9-1445-000CN Secures any material (except
metal) to metal
SCREW, TP XB4-7300-805CN Secures sensor PCB to plastic
(environmental, toner full, color
misregistration, and media).
SCREW,TAPPING,
TRUSS HEAD
M4X10 XB4-7401-005CN Secures anything to plastic
SCREW,
STEPPED
M4X4.5 RC1-1624000CN Secures the right side of the
pick-up/feed assembly to the
frame.
SCREW, S M3X8 XA9-1500-000CN Secures plastic to metal: front
door components, rear swing
guide rail, components to
center frame (see figure 8-12)
