Printer assemblies
The two figures below show the location of each major assembly in the printer. These assemblies
are described in the Installation and configuration chapter.

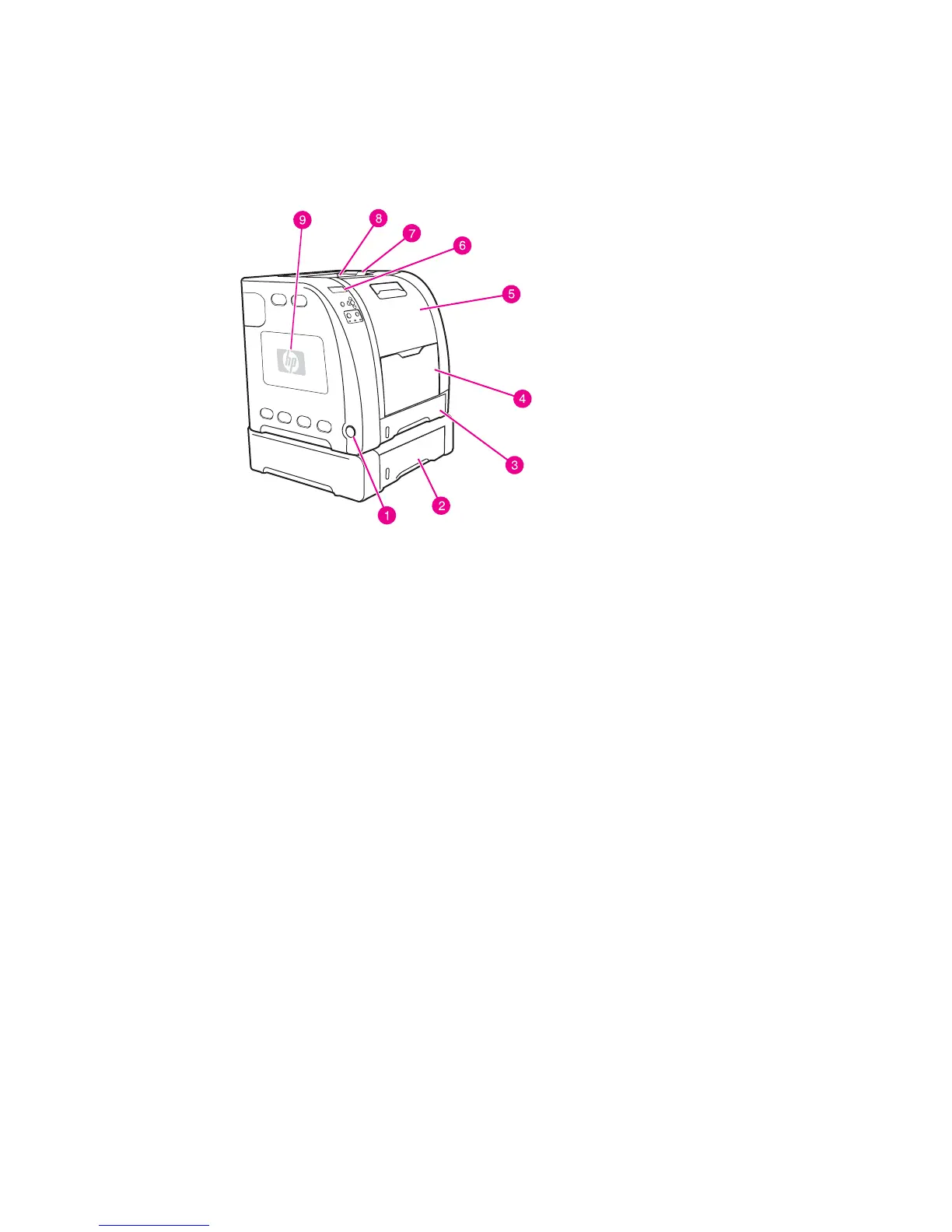

Figure 1-11 Front view, HP Color LaserJet 3500 and 3700 series printers (shown with additional 500-
sheet paper feeder)
1 on/off switch
2 Tray 3 (optional; 500 sheets of standard paper)
3 Tray 2 (250 sheets of standard paper)
4 Tray 1 (100 sheets of standard paper)
5 front door
6 printer control panel
7 output bin extender (for use with all media types)
8 output bin (150 sheets of standard paper)
9 DIMM access door (available on the HP Color LaserJet 3700 series printer)
