HP 400D Organizational, Ds, Gs, And Depot Maintenance Manual

TM 11-6625-1514-15
Section VII
Group Assembly Parts List

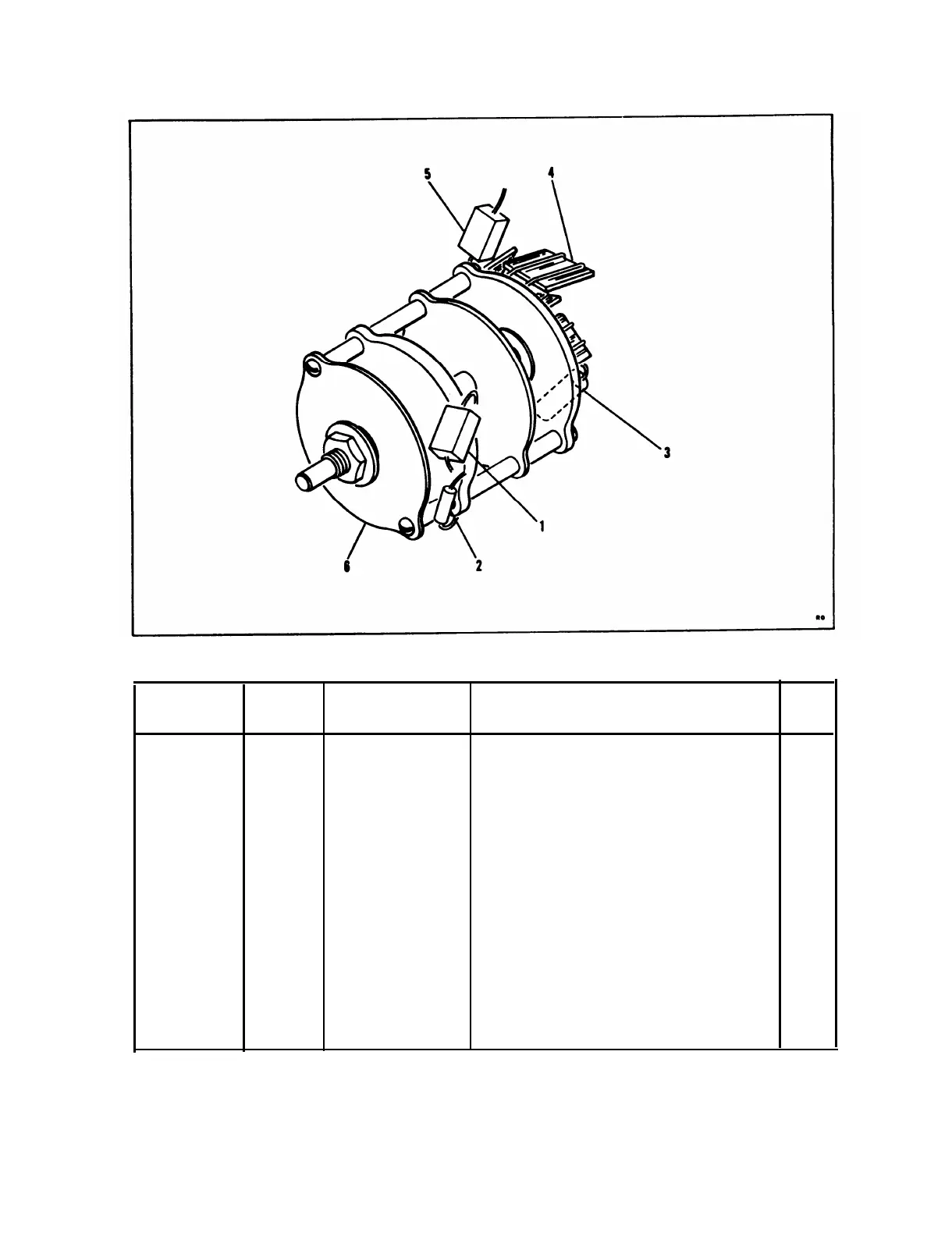

Figure 7-3. Range Switch Assembly
FIG. &
H-P
MFR OR MIL
DESCRIPTION
UNITS
INDEX
STOCK
PART
PER
NO.
NO.
NO.
1234567
ASSY
7-3-
400D-19A
400D-19A
RANGE SWITCH ASSEMBLY (28480) . . . .
REF
(See figure 7-2, index 32 for next higher
assembly)
-1
0140-0039
CM15E470J
.
CAPACITOR, FIXED, MICA DIELECTRIC,
1
47 pf ±10%, 500 wvdc (MIL-C-5)
-2
0887-1531
RC20GF153K
.
RESISTOR, FIXED, COMPOSITION, . . .
1
15K ±10%, 1/2w (MIL-R-11)
-3
0150-0009
315-000-C0G0-100D
.
CAPACITOR, FIXED, CERAMIC . . . .
1
DIELECTRIC, 10 pf ±0.5 pf, 500 wvdc
(72982)
-4
400D-26G
400D-26G
RESISTOR ASSEMBLY, Matched set of 6
1
.
wire wound resistors, replaceable only
as a set (28480)
-5
0140-0014
CM15E560J
.
CAPACITOR, FIXED, MICA DIELECTRIC,
1
56 pf ±10%, 500 wvdc (MIL-C-5)
-6
3100-0251
3100-0251
.
SWITCH, ROTARY, Not separately . . .
1
replaceable (28480)
7-8
00102-2
