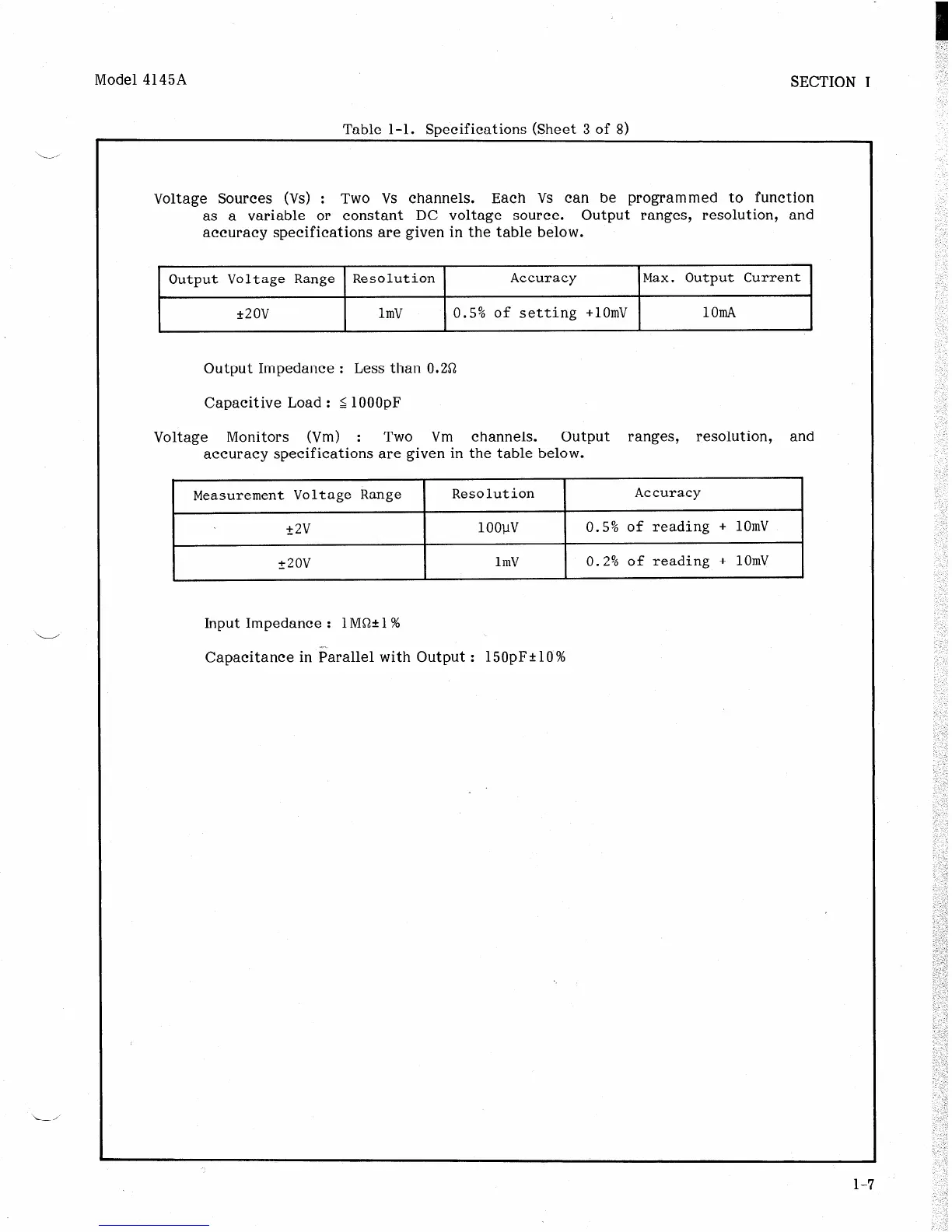

Model 4145A
SECTION I
Table l-l. Snecifimtions (Sheet
3
of 8)
Voltage Sources (Vs) : Two Vs channels. Each Vs can be programmed to function
as a variable or constant DC voltage source. Output ranges, resolution, and
accuracy specifications are given in the table below.
Output Voltage Range Resolution
Accuracy
Max. Output Current
+2ov 1mV 0.5% of setting +lOmV lOmA
Output Impedance : Less than 0.2R
Capacitive Load : 2 1OOOpF
Voltage Monitors (Vm) :
Two Vm channels. output ranges, resolution,
and
accuracy specifications are given in the table below.
Measurement Voltage Range
Resolution
I
Accuracy
1
I
1OOPV
I
0.5% of reading + 1OmV
I
I
1mV
I
0.2% of reading + 1OmV
I
Input Impedance : lMR+ 1%
Capacitance in Parallel with Output : 150pF+ 10 %
l-7
