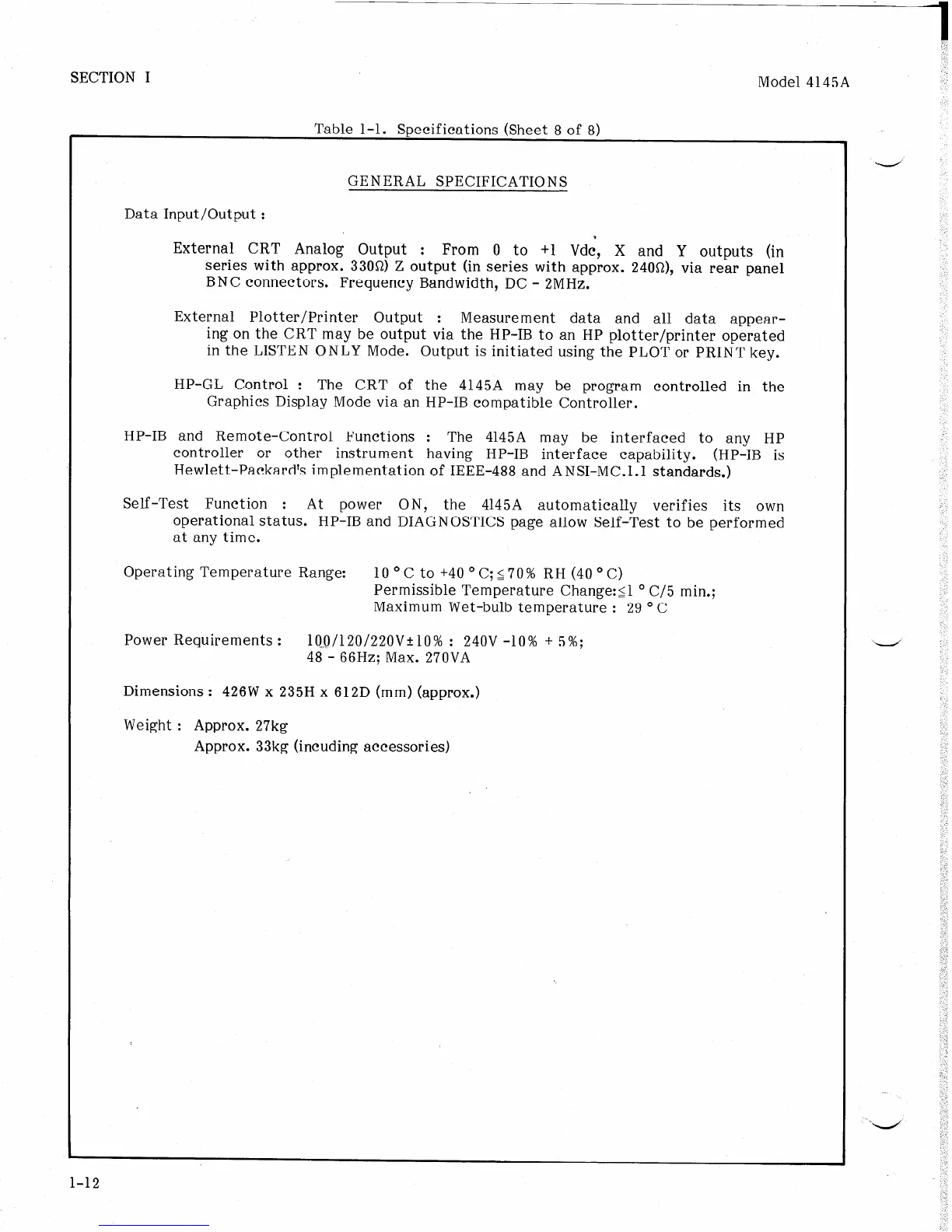

SECTION I
Model 4145A
Tahla l-l
Cnonifinotinnc
(Chant Q nf Q\
GENERAL SPECIFICATIONS
Data Input/Output :
External CRT Analog Output : From 0 to +l Vdc’, X and Y outputs (in
series with approx. 330R) Z output (in series with approx. 240R), via rear panel
BNC connectors. Frequency Bandwidth, DC - 2MHz.
External Plotter/Printer Output : Measurement data and all data appear-
ing on the CRT may be output via the HP-IB to an HP plotter/printer operated
in the LISTEN ONLY Mode. Output is initiated using the PLOT or PRINT key.
HP-GL Control : The CRT of the 4145A may be program controlled in the
Graphics Display Mode via an HP-IB compatible Controller.
HP-IB and Remote-Control Functions :
The 4145A may be interfaced to any HP
controller or other instrument having HP-IB interface capability. (HP-IB is
Hewlett-Packard’s implementation of IEEE-488 and ANSI-MC.l.l standards.)
Self -Test Function :
At power ON, the 4145A automatically verifies its own
operational status. HP-IB and DIAGNOSTICS page allow Self-Test to be performed
at any time.
Operating Temperature Range: 10°C to+40°C;670% RH(40OC)
Permissible Temperature Change:51 O C/5 min.;
Maximum Wet-bulb temperature : 29 O C
Power Requirements : 199/120/22OV+lO% : 240V -10% + 5%;
48 - 66Hz; Max. 270VA
Dimensions : 426W x 235H x 612D (mm) (approx.)
Weight : Approx. 27 kg
Approx. 33kg (incuding accessories)
