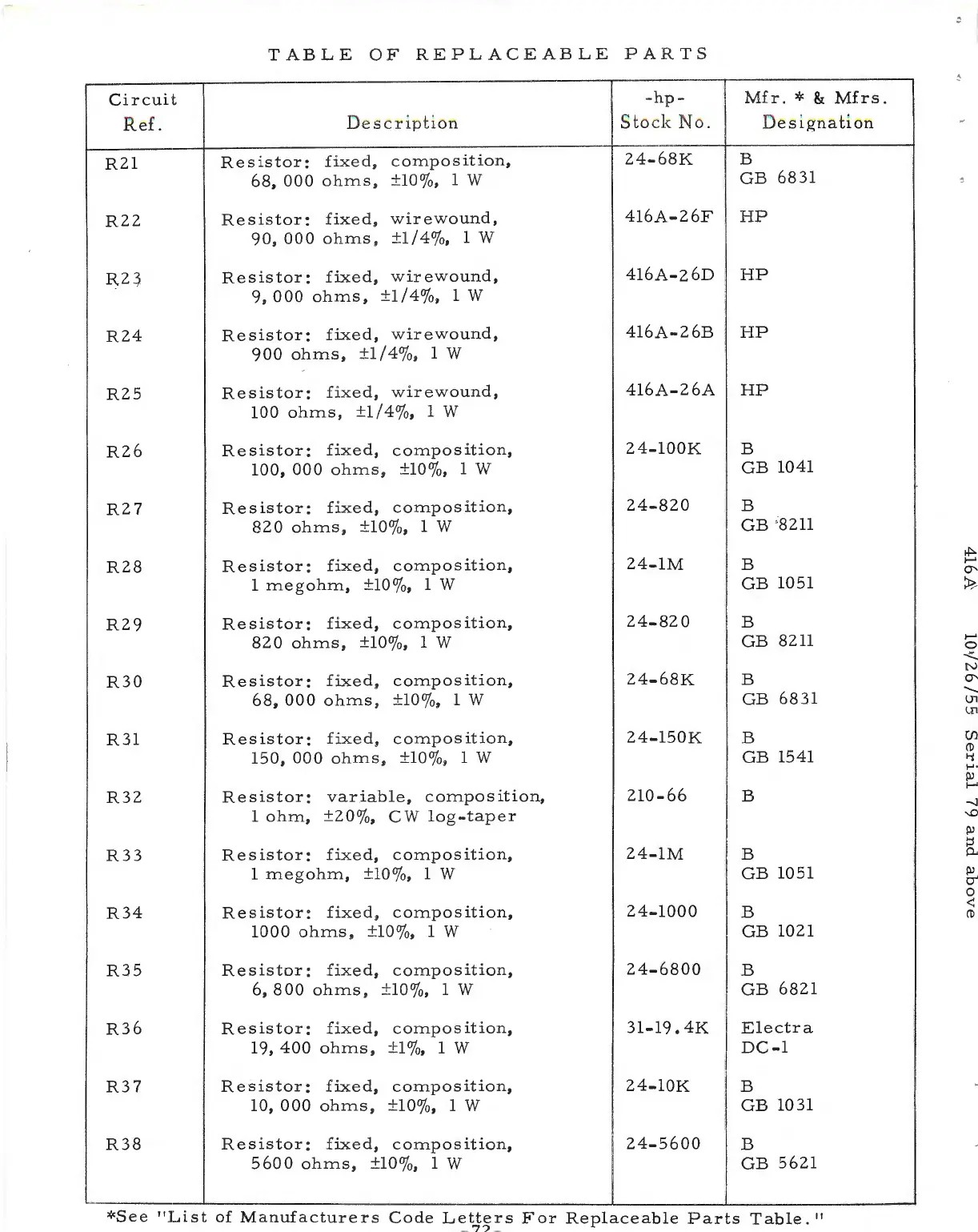

HP 416A - Page 101

TABLE O F REPLACEABLE PARTS
Circuit
-hp-
Mfr. * &: Mfrs .
Ref.
De s cr ip tion
Stock No.
D esig n ation
R21
Resistor:
fixed ,
composition,
24-68K B
68, 000
ohms ,
±
10%.
lW
GB
6831
R22
Resistor:
fixed ,
wirewound,
416A-26F HP
90 , 000
ohms ,
±
1/4% ,
lW
R23
Resistor:
fixed ,
wirewound,
416A-2 6D HP
9, 000 ohms , ± 1/4%,
lW
R24
Resistor:
fixed,
w i re wound,
416A - 26B
HP
900 ohms , ± 1/4% ,
lW
R25
Resistor:
fixed ,
w i
rewound,
416A-26A HP
100 ohms ,
±
1/4% .
lW
R26
Resistor:
fixed , composition,
24-lOOK
B
100, 000 ohms , ±1 0% ,
lW
GB 1041
R27
Resistor:
fixed ,
composition,
24-820
B
820 ohms ,
±10%,
lW
GB 8211
R28
Resistor:
fixed ,
composition,
24-lM
B
1
megohm ,
±10%.
lW
GB 1051
R29
Resistor:
fixed ,
composition,
24-82 0
B
820 ohms ,
±10%,
lW
GB 8211
R30
Resistor:
fixed ,
composit i on,
24-68K B
68, 000 ohms ,
±10%.
lW
GB 6831
R31
Resistor:
f i xed ,
composition ,
24-150K
B
150, 000 ohms ,
±1
0% ,
lW
GB 1541
R32
Resistor:
variable ,
composition ,
210-66
B
1
ohm ,
±
20% .
CW log - taper
R33
Resistor:
f i xed ,
composition ,
24-lM
B
1
megohm ,
±10%,
1 w
GB 1051
R34
Resistor:
fixed ~
composition ,
24-1000
B
1000 ohms ,
±10%,
lW
GB 1021
R35
Resistor : fixed ,
composit i on ,
24-6800
B
6, 800 ohms ,
±10%,
1
w
GB
6821
R36
Res i stor:
fixed , composition, 31-19.4K
Electra
19, 400
ohms ,
±1%.
lW DC-1
R37
Res i stor: fixed , com posit ion,
24-lOK
B
10,
000 ohms ,
±10%,
lW
GB 1031
R38
Resistor : fixed , composition, 24-5600
B
5600 ohms ,
±10%.
lW
GB 5621
