HP 416A - Page 105

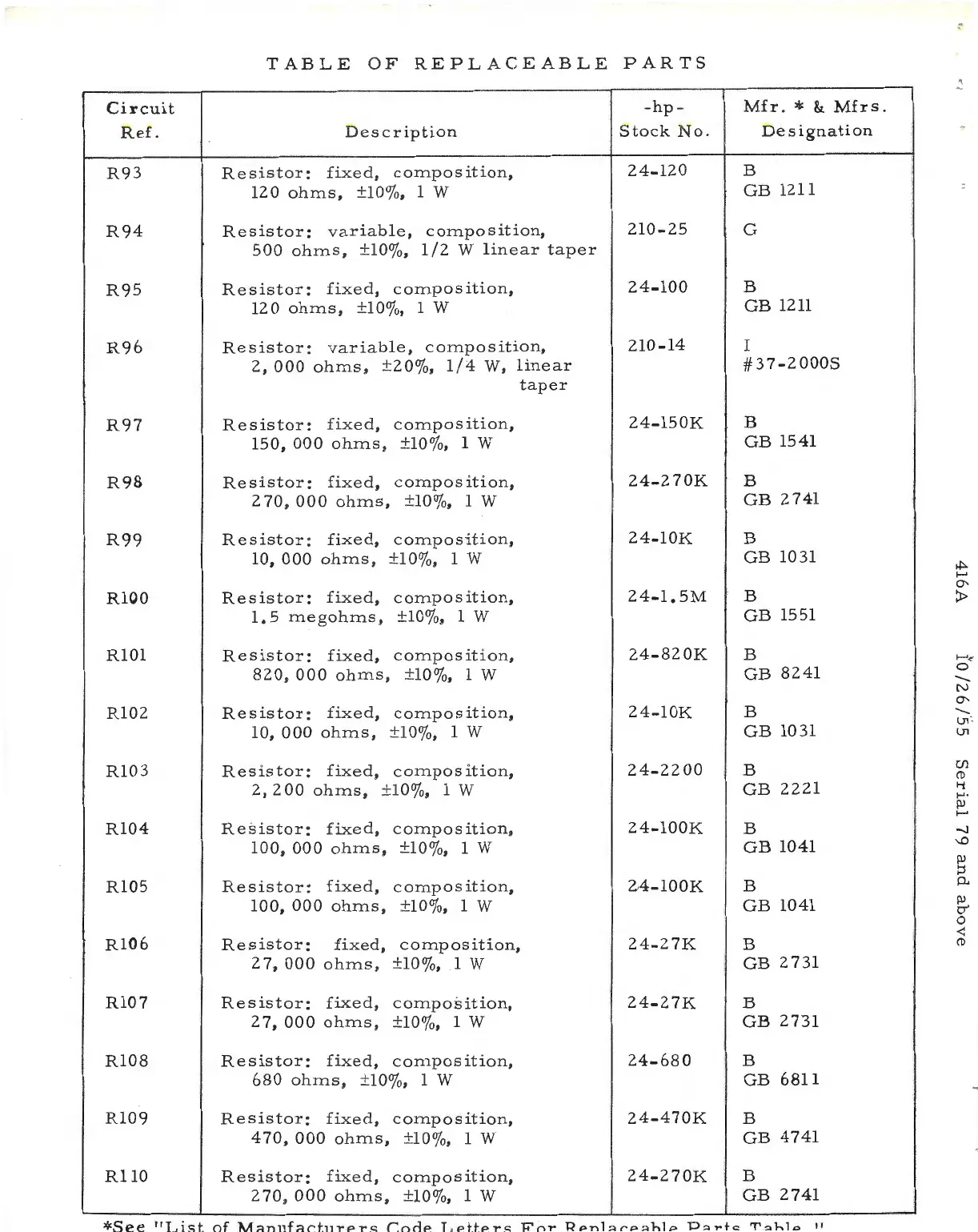

TABLE OF REPLACEABLE PARTS
Circuit
-hp-
Mfr. * &: Mfrs .
Ref.
Description
Stock No.
Designation
R93
Res i stor:
fixed ,
composition,
24-120 B
120 ohms,
± 10%,
lW
GB 1211
R94
Resistor:
variable,
composition,
210-25
G
500 ohms,
± 10%,
1/2 W linear ta per
R95
Resistor :
fixed ,
composition,
24-100 B
120 ohms ,
±10%,
lW
GB 1211
R96
Resisto r:
variable,
composition,
210-14 I
2, 000 ohms , ±2 0% ,
1/4 W, linear
#37-20005
t aper
R97
Resisto r:
fixed,
composition,
24-150K B
150, 000 ohms ,
±
10%,
lW
GB 1541
R98
Res i stor:
fixed , c ompos it i on ,
24-2 70K
B
2 70 , 000 ohms ,
±
10% ,
lW
GB 2741
R99
Resistor :
fixed ,
composition ,
24-lOK B
10, 000 ohms ,
±
10% ,
lW
GB 1031
RlOO
Resistor:
fixed,
composition,
24-1. 5M B
1. 5 megohms ,
±10%,
1 w
GB 1551
RlOl Resistor: fixed ,
composition,
24-820K
B
820 , 000 ohms ,
±
10%,
lW
GB 8241
Rl02 Resistor :
fixed, compos i tion,
24-lOK B
10, 000 ohms ,
±
10% ,
1
w
GB 1031
Rl03 Res i stor :
fixe d, composit i on,
24-2200
B
2, 2 00 ohms ,
±10%,
1
w
GB 2221
Rl04 Res i stor :
fixed, cornpos it i on ,
24-lOOK B
100 , 000 ohms ,
±
10% ,
lW
GB 1041
RlOS
Res is t or :
fixed, composition,
2.4-lOOK
B
100 , 000 ohms,
± 10% ,
lW
GB 1041
Rl06 Resistor : fixed, comp os it ion,
24-27K
B
2 7, 000 ohms ,
±
10% ,
lW
GB 2731
Rl07 Resistor: f ixe d, composition, 24-27K B
27,000 ohms ,
±
10%,
lW
GB 2731
Rl08
Resistor: fixed, composition,
24-680
B
680 ohms ,
±
10%,
lW
GB
6811
Rl09 Res i stor : fixed , composition,
24-470K
B
4 70 , 000 ohms,
± 10% ,
lW
GB 4741
RllO Res i stor: fixed , composition,
24-2 70K
B
2 70 , 000 ohms ,
±10%,
lW
GB 2741
